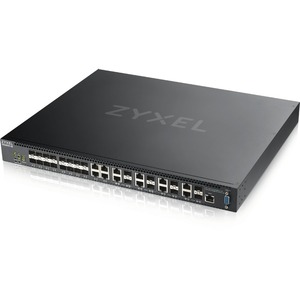

ZYXEL XS3800-28 24-port 10G Multi-Gigabit L3 Managed Aggregation Switch with 16 SFP+ 10G Ports, 8 10G Combo (SFP+/RJ-45) Ports and 4 10G Ethernet Ports - 24 Ports - 10G Multi-Gigabit Ethernet - Full CLI Managed - Layer 3 Supported - 16 SFP+ 10G Slots - 8

Designed for SMB with 10GBASE-T connectivity and advanced L2+/L3 lite features, the new Zyxel 10-Gigabit L2+ managed switch XS3800-28 enables applications for aggregation or SMB core switching and connection; and the XS3800-28 also comes with up to 12 Multi-Gigabit ports to help your preparation for network expansions with Multi-Gigabit capable devices such as servers, workstations and NAS.

Benefits

Flexible port combination for all your needs

10GBASE-T and 10-Gigabit SFP+ are essential to a Layer-2 aggregation switch. The XS3800-28 offers a wide range of combo ports options to give you the greatest flexibility for any type of networks. With 16 x 10G SFP+, 8 combo ports (Multi-Gigabit RJ-45/SFP+) and 4 Multi-Gigabit RJ-45 ports, the XS3800-28 offers a maximum of 24 10G fiber ports or 12 10G copper ports that are well prepared for easy adaption to your networks.

Future-proof deployments with Multi-Gigabit capability

If you are currently connecting a Multi-Gigabit capable device to a traditional 10-Gigabit switch without Multi-Gigabit capability, the connection automatically downgrades to 1 Gbps since your Multi-Gigabit device only supports speeds up to 2.5G or 5 Gbps rather than 10 Gbps. Instead, the XS3800-28 offers up to 12 Multi-Gigabit RJ-45 ports that support 10G, 5G, 2.5G and 1G speeds that allow the connection to operate at the maximum speed as fast as the connected devices allow.

The most commonly used CAT5e Ethernet cables support both 2.5G/5 Gbps Multi-Gigabit operations without the need to purchase expensive CAT6 cables. For the existing networks that need to be upgraded to the Mutli-Gigabit specification, the XS3800-28 is the perfect solution without replacing the current cabling infrastructure.

Advanced Layer-3 switching capacity

Designed with supports to the 4K L3 forwarding table and 1K static L3 routes, the XS3800-28 is suitable for aggregation and virtualization for SMB or campus networks that require low latency and high-density 10G backbone architectures with basic routing capability.

Resiliency and availability

As a SMB core switch, high availability for uninterrupted services is essential. The XS3800-28 comes with two PSUs supporting active-standby power redundancy that triggers backup power supply if the main unit fails. The XS3800-28 also features a new one-touch "Restore" button on the front panel that saves the last workable configuration as the custom default, which allows you to fall back anytime with a press in case of network misconfigurations.

Availability: Call or email

$4,477.70
$4,477.70
ZYXEL Communications Corp.

Fast shipping on all in-stock products

Quick turnaround on RFQs - email us today.

Buy from a certified veteran-owned small business (VOSB)

Questions? Call customer service at 503-208-8410.

Description

Details

ZYXEL XS3800-28 24-port 10G Multi-Gigabit L3 Managed Aggregation Switch with 16 SFP+ 10G Ports, 8 10G Combo (SFP+/RJ-45) Ports and 4 10G Ethernet Ports - 24 Ports - 10G Multi-Gigabit Ethernet - Full CLI Managed - Layer 3 Supported - 16 SFP+ 10G Slots - 8 10G Combo (SFP+/RJ-45) - 4 10G Ethernet Ports - Rack-mountable - Lifetime Limited Warranty

OVERVIEW:

  • Limited Warranty : Lifetime
  • Manageable : Yes
  • Layer Supported : 3
  • Package Contents :
    • 28-port 10GbE L2+ Managed Switch
    • Power Cord
    • Rack Mounting Kit
  • Media Type Supported : Twisted Pair
  • Media Type Supported : Optical Fiber
  • Total Number of Network Ports : 28
  • Ethernet Technology : 10 Gigabit Ethernet
  • Total Number of Expansion Slots : 24.0
  • Environmentally Friendly : Yes
  • Network Technology : 10GBase-X
  • Network Technology : 10GBase-T
  • Expansion Slot Type : SFP+
  • Power Source : Power Supply
  • Form Factor : Rack-mountable
  • Shared SFP Slot : Yes
  • Modular : Yes
  • Redundant Power Supply Supported : Yes
  • Height : 1.7"
  • Width : 17.4"
  • Energy Efficiency Compliance : Energy-using Products Directive (EuP)
  • Number of SFP+ Slots : 24
  • Port/Expansion Slot Details : 8 x 10 Gigabit Ethernet Expansion Slot
  • Port/Expansion Slot Details : 16 x 10 Gigabit Ethernet Expansion Slot
  • Port/Expansion Slot Details : 8 x 10 Gigabit Ethernet Network
  • Port/Expansion Slot Details : 4 x 10 Gigabit Ethernet Network
  • Depth : 14.2"
  • Environmental Compliance : Waste Electrical and Electronic Equipment Directive (WEEE)
  • Environmental Compliance : Restriction of Hazardous Substances (RoHS)
  • Power Consumption : 86.97 W
  • Country of Origin : NA
  • Weight (Approximate) : 10.60 lb
  • TAA Compliant : No
