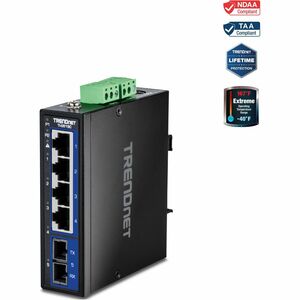

TRENDnet 5-Port Hardened Industrial Gigabit DIN-Rail Switch, TI-G51SC, 1 x Multi-Mode SC Port, 4 x Gigabit Ports, 10Gbps, IP30 Rated, Lifetime Protection, Black - 5 Ports - Gigabit Ethernet - 1000Base-T, 1000Base-SX - 2 Layer Supported - Modular - 3.60 W

TRENDnet's 5-Port Industrial Gigabit DIN-Rail Switch with Multi-Mode SC Port, model TI-G51SC, features a rugged IP30 rated metal enclosure and is designed to work in the harshest networking environments. This industrial switch with a fiber port is designed to withstand a high degree of vibration and shock, while operating in both high and low temperatures of industrial environments within - 40° - 75° C (-40° - 167° F). Redundant power inputs with overload current protection on the industrial unmanaged switch minimizes network downtime. This hardened industrial switch features copper gigabit ports for high-speed device connections, and a gigabit multi-mode SC port for long-distance fiber networking applications up to 550 meters.

  • 4 x Gigabit ports
  • 1 x Gigabit Multi-Mode Fiber SC port
  • Hardened IP30 rated metal switch
  • Extreme -40° - 75° C (-40° - 167° F) operating temperature range
  • Redundant power inputs with overload current protection
  • Alarm output triggered by power failure
  • 10Gbps switching capacity
  • Includes DIN-Rail and wall mounts
  • Power supply sold separately (models: TI-M6024, TI-S15052, 48VDC3000)
  • Lifetime Warranty

More from the Manufacturer

Availability: Call or email

$114.99
$114.99
TRENDnet

Fast shipping on all in-stock products

Quick turnaround on RFQs - email us today.

Buy from a certified veteran-owned small business (VOSB)

Questions? Call customer service at 503-208-8410.

Description

Details

TRENDnet 5-Port Hardened Industrial Gigabit DIN-Rail Switch, TI-G51SC, 1 x Multi-Mode SC Port, 4 x Gigabit Ports, 10Gbps, IP30 Rated, Lifetime Protection, Black - 5 Ports - Gigabit Ethernet - 1000Base-T, 1000Base-SX - 2 Layer Supported - Modular - 3.60 W Power Consumption - Twisted Pair, Optical Fiber - DIN Rail Mountable, Wall Mountable - Lifetime Limited Warranty

OVERVIEW:

  • Limited Warranty : Lifetime
  • Manageable : No
  • Layer Supported : 2
  • Package Contents :
  • 5-Port Industrial Gigabit DIN-Rail Switch with Multi-Mode SC Port
  • Quick Installation Guide
  • Removable terminal block
  • DIN-Rail / wall mount kit
  • Media Type Supported : Optical Fiber
  • Media Type Supported : Twisted Pair
  • Total Number of Network Ports : 5
  • Features : Surge Protection
  • Features : IP30
  • Product Material : Metal
  • Networking Standards : IEEE 802.3z
  • Networking Standards : IEEE 802.3x
  • Networking Standards : IEEE 802.3ab
  • Networking Standards : IEEE 802.3u
  • Networking Standards : IEEE 802.3
  • Ethernet Technology : Gigabit Ethernet
  • Total Number of Expansion Slots : 1
  • Network (RJ-45) : Yes
  • Input Voltage : 60 V DC
  • Input Voltage : 9 V DC
  • Network Technology : 1000Base-SX
  • Network Technology : 1000Base-T
  • Power Source : Power Adapter
  • Power Source : Power Supply
  • Power Source : DC
  • Form Factor : Wall Mountable
  • Form Factor : DIN Rail Mountable
  • Modular : Yes
  • Height : 1.1"
  • Width : 3.5"
  • Port/Expansion Slot Details : 1 x Gigabit Ethernet Expansion Slot
  • Port/Expansion Slot Details : 4 x Gigabit Ethernet Network
  • Depth : 3.5"
  • Power Consumption : 3.60 W
  • Country of Origin : Taiwan
  • Plug/Connector Type : Terminal Block
  • Weight (Approximate) : 10.30 oz
  • Additional Info

    Additional Info

    SKU 03441TIG51SC-BF
    Weight 10.3000
    Is Featured N/A
    Manufacturer TRENDnet
    Manufacturer Part Number TI-G51SC
    Width 3.5"
    Length 1
    Height 1.1"
    Product ID 03441TIG51SC
    UNSPSC N/A
    Other Part Number N/A
    Special Price N/A
