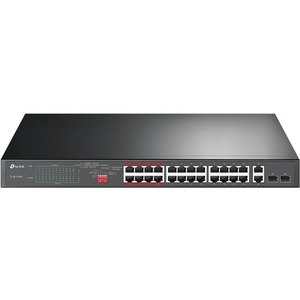

TP-Link TL-SL1226P - 24-Port 10/100Mbps Fast Ethernet PoE Switch - 24-PoE+ Ports @250W - w/ 2 Uplink Gigabit Ports + 2 Combo SFP Slots - Extend Mode - Priority Mode

Dedicated 24-Port PoE+ Switch for Wide Range of Applications with 250 W PoE Budget

Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 250 W PoE power budget for the 24? PoE ports makes it has wide range of applications, such as surveillance, offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and etc.

Dedicated Design for IP Surveillance-Up to 250 m Transmission

With extend mode, the PoE transmission distance reaches up to 250 m-perfect for IP Camera deployment in large areas.

Dedicated Design for IP Surveillance-Higher Performance and Security

Priority Mode and Isolation Mode make surveillance smoother and safer.

Priority Video Quality Guaranteed

Quality of sensitive applications like video monitoring in critical business areas is guaranteed by offering higher priority options for ports 1-8 when one-touch Priority Mode is on.

One-Click Traffic Separation for Ports 1-24

With one click, Isolation Mode easily divides traffic for ports 1-24 to avoid snooping and tampering. This enables the switch to isolate broadcast storm, improving LAN security and data transmission.

Smooth HD Video Monitoring

2? gigabit RJ45 ports and 2? combo gigabit SFP ports ensure smooth streaming even when 24? HD IP cameras work simultaneously.

Plug and Play

Intelligent Power Management to Prevent Power Overload

When your total power consumption exceeds 250 W, Intelligent Power Management automatically cuts lower priority ports' power to ensure high-priority ports' power supply. This protects the device from power overload operation. It also automatically detects the required PoE power for your device and protects your non-PoE equipment from being damaged.

Wide Operating Temperature with Good Heat Dissipation

Durable metal casing and professional heat dissipation design ensure the wide operating temperature (0-50?) with reliability.

More from the Manufacturer

Availability: Call or email

$199.29
$199.29
TP-LINK Technologies Co., Ltd

Fast shipping on all in-stock products

Quick turnaround on RFQs - email us today.

Buy from a certified veteran-owned small business (VOSB)

Questions? Call customer service at 503-208-8410.

Description

Details

TP-Link TL-SL1226P - 24-Port 10/100Mbps Fast Ethernet PoE Switch - 24-PoE+ Ports @250W - w/ 2 Uplink Gigabit Ports + 2 Combo SFP Slots - Extend Mode - Priority Mode

OVERVIEW:

  • Limited Warranty : 3 Year
  • Manageable : No
  • PoE (RJ-45) Port : Yes
  • Layer Supported : 2
  • Package Contents :
    • 24-Port 10/100Mbps + 2-Port Gigabit Unmanaged PoE+ Switch
    • Power Cable
    • Installation Guide
    • 2 x Mounting Brackets and the Fittings
  • Media Type Supported : Optical Fiber
  • Media Type Supported : Twisted Pair
  • Total Number of Network Ports : 26
  • PoE Budget : 250 W
  • Product Material : Metal
  • Ethernet Technology : Gigabit Ethernet
  • Ethernet Technology : Fast Ethernet
  • Total Number of Expansion Slots : 2.0
  • Network (RJ-45) : Yes
  • Network Technology : 1000Base-X
  • Network Technology : 1000Base-T
  • Network Technology : 10/100Base-T
  • Expansion Slot Type : SFP (mini-GBIC)
  • Power Source : Power Supply
  • Shared SFP Slot : Yes
  • Height : 1.7"
  • Number of SFP Slots : 2
  • Width : 17.3"
  • Port/Expansion Slot Details : 2 x Gigabit Ethernet TP/SFP Combo
  • Port/Expansion Slot Details : 24 x Fast Ethernet PoE+
  • Depth : 7.1"
  • Power Consumption : 18.32 W
  • Country of Origin : NA
  • Additional Info

    Additional Info

    SKU 03422TLSL1226P-BF
    Weight 1.0000
    Is Featured N/A
    Manufacturer TP-LINK Technologies Co., Ltd
    Manufacturer Part Number TL-SL1226P
    Width 17.3"
    Length 1
    Height 1.7"
    Product ID 03422TLSL1226P
    UNSPSC N/A
    Other Part Number N/A
    Special Price N/A
