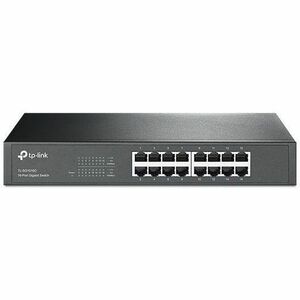

TP-LINK TL-SG1016D 10/100/1000Mbps 16-Port Gigabit 13-inch Rackmountable Switch, 32Gbps Capacity - 16 Ports - 16 x RJ-45 - 10/100/1000Base-T

What This Product Does

The TL-SG1016D Gigabit Ethernet Switch provides you with a high-performance, low-cost, easy-to-use, seamless and standard upgrade to improve old network to 1000Mbps network. All 16 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SG1016D can save power consumption, making it an eco-friendly solution for your business network.

TP-LINK Green Technology

This new generation TL-SG1016D Gigabit Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status to limit the carbon footprint of your network. It also complies with the EU'S RoHS, prohibiting the use of certain hazardous materials. Besides, most packaging material can be recycled.

High Performance

All 16 ports are Gigabit RJ-45 ports which can provide large file transferring and also be compatible with 10Mbps and 100Mbps Ethernet devices. Featuring non-blocking switching architecture, TL-SG1016D forwards and filters packets at full wire-speed for maximum throughput. With 10KB Jumbo frame, the performance of large files transfers is improved significantly. And IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode alleviate the tra?ffic congestion and make The TL-SG1016D work reliably. It's a perfect choice to update your network to Gigabit while protecting your previous investment properly.

Easy to Use

The auto features of this gigabit switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance.

Traffic Separation

Isolation Mode easily divides traffic for specific ports with one click to avoid snooping, tampering and isolation broadcast storm for higher security.

Loop Prevention

Monitor and address loop-related issues within your network structure to prevent disruptions caused by looping.

Availability: Call or email

$97.08
$97.08
TP-LINK Technologies Co., Ltd

Fast shipping on all in-stock products

Quick turnaround on RFQs - email us today.

Buy from a certified veteran-owned small business (VOSB)

Questions? Call customer service at 503-208-8410.

Description

Details

TP-LINK TL-SG1016D 10/100/1000Mbps 16-Port Gigabit 13-inch Rackmountable Switch, 32Gbps Capacity - 16 Ports - 16 x RJ-45 - 10/100/1000Base-T

OVERVIEW:

  • Manageable : No
  • Layer Supported : 2
  • Package Contents :
    • 16-Port Gigabit Desktop/Rackmount Switch
    • Power Cord
    • Installation Guide
    • Rackmount Kits
    • Rubber Feet
  • Media Type Supported : Twisted Pair
  • Total Number of Network Ports : 16
  • Features : Energy Efficient
  • Features : Loop Protection
  • Features : Fanless
  • Features : Plug and Play
  • Networking Standards : IEEE 802.3x
  • Networking Standards : IEEE 802.3ab
  • Networking Standards : IEEE 802.3u
  • Networking Standards : IEEE 802.3i
  • Ethernet Technology : Gigabit Ethernet
  • Network (RJ-45) : Yes
  • Input Voltage : 230 V AC
  • Input Voltage : 120 V AC
  • Network Technology : 10/100/1000Base-T
  • Power Source : Power Supply
  • Form Factor : Desktop
  • Form Factor : Rack-mountable
  • Height : 1.2"
  • Width : 11.6"
  • Port/Expansion Slot Details : 16 x Gigabit Ethernet Network
  • Depth : 7.1"
  • Environmental Compliance : Restriction of Hazardous Substances (RoHS)
  • Power Consumption : 9.95 W
  • Additional Info

    Additional Info

    SKU 03422TLSG1016D-BF
    Weight 1.0000
    Is Featured N/A
    Manufacturer TP-LINK Technologies Co., Ltd
    Manufacturer Part Number TL-SG1016D
    Width 11.6"
    Length 1
    Height 1.2"
    Product ID 03422TLSG1016D
    UNSPSC N/A
    Other Part Number N/A
    Special Price N/A
