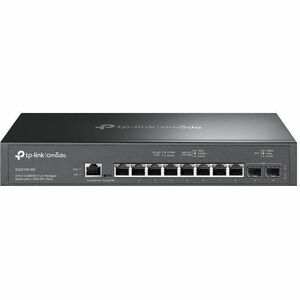

TP-Link Omada 8-Port 2.5G L2+ Managed Switch - 8 Ports - Manageable - 2.5 Gigabit Ethernet, 10 Gigabit Ethernet - 2.5GBase-T, 10GBase-X - 2 Layer Supported - 15 W Power Consumption - Twisted Pair, Optical Fiber - Rack-mountable, Desktop, Standalone

10G Lightning-Fast Uplink Connection

2? 10 Gbps SFP+ Slots for High-Bandwidth Connectivity

2.5G Ports for WiFi 7/6E/6

8? 2.5 Gbps Ports Uplock the Full Potential of WiFi 7/6E/6 APs

Centralized Cloud Management

SDN Solutions Integration for a Highly Efficient Network

Advanced L2+ Features

Static Routing, IGMP Snooping, 802.1Q VLAN and More

Enterprise Switch with 10G Uplink

2? 10 Gbps SFP+ slots provide non-blocking switching performance and ultra-low latency, so reliable and lightning-fast connections to server and other switches are easily built.

Unlock the Highest Performance of 2.5G Multi-Gig Bandwidth and Devices

8? 2.5-Gigabit ports unlock the highest performance of your Multi-Gig bandwidth and devices. Auto-negotiation speed connections sense the link speeds and intelligently adjust for compatibility and optimal performance for all your devices, including desktop, 4K video, 2.5G Wi-Fi 7/6E/6 APs, 2.5G NAS, 2.5G PCIe adapter, gaming console, VR gaming, and more.

Software Defined Networking (SDN) with Cloud Access

Omada's Software Defined Networking (SDN) platform integrates network devices, including access points, switches and gateways, providing 100% centralized cloud management. Omada creates a highly scalable network-all controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more.

Advanced L3 Features

An abundance of L2+ and L3 features are supported to help build a highly scalable and robust network, providing a reliable and efficient solution for enterprises, campuses and ISPs.

Secure Networking

Security features include IP-MAC-Port-VID Binding, Port Security, Storm Control and DHCP Snooping to defend against a range of network threats. An integrated list of common DoS attacks is available, making it easier than ever to prevent them. In addition, the Access Control Lists (ACL, L2 to L4) feature restricts access to sensitive network resources by denying packets based on source and destination MAC address, IP address, TCP/UDP ports or VLAN ID. Users' network access can be controlled via 802.1X authentication, which works with a RADIUS/Tacacs+ server to grant access only when valid user credentials are provided.

Enterprise Level Features

A complete lineup of L2+ features are supported, including 802.1Q VLAN, Port Mirroring, STP/RSTP/MSTP, Link Aggregation Control Protocol, and 802.3x Flow Control. Advanced IGMP Snooping ensures the switch intelligently forwards multicast streams to only the appropriate subscribers, cutting out unnecessary traffic, while IGMP throttling & filtering restrict each subscriber on a port level to prevent unauthorized multicast access. Static Routing is a simple way of segmenting the network and internally routs traffic through the switch for improved efficiency.

Advanced QoS

Voice and video traffic can be prioritized based on IP address, MAC address, TCP port number, UDP port number, and more. With QoS (Quality of Service), voice and video services remain smooth, even when bandwidth is in short supply.

ISP Features

QinQ, L2PT PPPoE ID Insertion and IGMP authentication features are provided, developed with service providers in mind. 802.3ah OAM and Device Link Detection Protocol (DLDP) offer easy monitoring and troubleshooting of Ethernet links.

IPv6 Support

IPv6 functions such as Dual IPv4/IPv6 Stack, MLD Snooping, IPv6 ACL, DHCPv6 Snooping, IPv6 Interface, Path Maximum Transmission Unit (PMTU) Discovery and IPv6 Neighbor Discover guarantee your network is r

Availability: Call or email

$262.89
$262.89
TP-LINK Technologies Co., Ltd

Fast shipping on all in-stock products

Quick turnaround on RFQs - email us today.

Buy from a certified veteran-owned small business (VOSB)

Questions? Call customer service at 503-208-8410.

Description

Details

TP-Link Omada 8-Port 2.5G L2+ Managed Switch - 8 Ports - Manageable - 2.5 Gigabit Ethernet, 10 Gigabit Ethernet - 2.5GBase-T, 10GBase-X - 2 Layer Supported - 15 W Power Consumption - Twisted Pair, Optical Fiber - Rack-mountable, Desktop, Standalone

OVERVIEW:

  • Manageable : Yes
  • Layer Supported : 2
  • Media Type Supported : Optical Fiber
  • Media Type Supported : Twisted Pair
  • Total Number of Network Ports : 8
  • Features : Fanless
  • Networking Standards : IEEE 802.1x
  • Networking Standards : IEEE 802.1p
  • Networking Standards : IEEE 802.1Q
  • Networking Standards : IEEE 802.1w
  • Networking Standards : IEEE 802.1s
  • Networking Standards : IEEE 802.1D
  • Networking Standards : IEEE 802.3x
  • Networking Standards : IEEE 802.3ad
  • Ethernet Technology : 10 Gigabit Ethernet
  • Ethernet Technology : 2.5 Gigabit Ethernet
  • Total Number of Expansion Slots : 2.0
  • Network (RJ-45) : Yes
  • Input Voltage : 230 V AC
  • Input Voltage : 120 V AC
  • Network Technology : 10GBase-X
  • Network Technology : 2.5GBase-T
  • Expansion Slot Type : SFP+
  • Uplink Port : Yes
  • Power Source : AC
  • Power Source : Power Supply
  • Form Factor : Standalone
  • Form Factor : Desktop
  • Form Factor : Rack-mountable
  • Height : 1.7"
  • Stack Port : Yes
  • Width : 11.6"
  • Number of SFP+ Slots : 2
  • Port/Expansion Slot Details : 2 x 10 Gigabit Ethernet Expansion Slot
  • Port/Expansion Slot Details : 8 x 2.5 Gigabit Ethernet Network
  • Depth : 7.1"
  • Power Consumption : 15 W
  • Additional Info

    Additional Info

    SKU 03422SG3210XM2-BF
    Weight 1.0000
    Is Featured N/A
    Manufacturer TP-LINK Technologies Co., Ltd
    Manufacturer Part Number SG3210X-M2
    Width 11.6"
    Length 1
    Height 1.7"
    Product ID 03422SG3210XM2
    UNSPSC N/A
    Other Part Number N/A
    Special Price N/A
