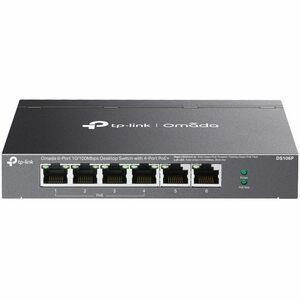

TP-Link Omada 6-Port 10/100Mbps Unmanaged Desktop Switch with 4-Port PoE+ - 10 Ports - Gigabit Ethernet, Fast Ethernet - 10/100/1000Base-T, 10/100Base-T - 2 Layer Supported - 2.52 W Power Consumption - 67 W PoE Budget - Twisted Pair - PoE Ports - Desktop,

  • 67 W PoE Budget
  • Long-Range PoE+ (250m)
  • One-Click Priority Mode
  • PoE Auto Recovery
  • Desktop or Wall-Mounting
  • Plug and Play
  • Fanless Design for Silent Operation
  • Durable Metal Casing


Power over Ethernet, Flexible Network Deployment

Compliant with the IEEE 802.3af/at PoE standards, the switch supports a total PoE power budget of 67 W with 30 W max per PoE+ port. When total power consumption exceeds 67 W, the intelligent power management will cut the lower priority ports power to protect devices from damage.

Instantaneous Multi-mode Toggles | Extend Mode | Up to 250m Transmissions

With extend mode, the PoE transmission distance reaches up to 250 m -perfect for IP Camera deployment in large areas.

Priority Mode | One-click Port Priority

Priority mode guarantees the quality of sensitive applications like video and voice in critical business areas by prioritizing the data of ports.

Recovery Mode | PoE Auto Recovery

Recovery mode helps automatically detect and reboot PD devices, such as cameras and APs, when they fall offline or go unresponsive-all without needing manual monitoring and restarts.

Availability: Call or email

$46.98
$46.98
TP-LINK Technologies Co., Ltd

Fast shipping on all in-stock products

Quick turnaround on RFQs - email us today.

Buy from a certified veteran-owned small business (VOSB)

Questions? Call customer service at 503-208-8410.

Description

Details

TP-Link Omada 6-Port 10/100Mbps Unmanaged Desktop Switch with 4-Port PoE+ - 10 Ports - Gigabit Ethernet, Fast Ethernet - 10/100/1000Base-T, 10/100Base-T - 2 Layer Supported - 2.52 W Power Consumption - 67 W PoE Budget - Twisted Pair - PoE Ports - Desktop, Wall Mountable

OVERVIEW:

  • Manageable : No
  • PoE (RJ-45) Port : Yes
  • Layer Supported : 2
  • Package Contents :
    • Omada 6-Port 10/100Mbps Unmanaged Desktop Switch with 4-Port PoE+
    • Power Adapter
    • Installation Guide
  • Media Type Supported : Twisted Pair
  • Total Number of Network Ports : 10
  • Features : Fanless
  • Features : Plug and Play
  • PoE Budget : 67 W
  • Product Material : Metal
  • Networking Standards : IEEE 802.3at
  • Networking Standards : IEEE 802.3af
  • Networking Standards : IEEE 802.3x
  • Ethernet Technology : Fast Ethernet
  • Ethernet Technology : Gigabit Ethernet
  • Network (RJ-45) : Yes
  • Network Technology : 10/100Base-T
  • Network Technology : 10/100/1000Base-T
  • Power Source : Power Adapter
  • Form Factor : Wall Mountable
  • Form Factor : Desktop
  • Height : 1"
  • Width : 6.2"
  • Port/Expansion Slot Details : 4 x Fast Ethernet PoE+
  • Port/Expansion Slot Details : 6 x Fast Ethernet Network
  • Depth : 4"
  • Environmental Compliance : Restriction of Hazardous Substances (RoHS)
  • Power Consumption : 2.52 W
  • Additional Info

    Additional Info

    SKU 03422DS106P-BF
    Weight 1.0000
    Is Featured N/A
    Manufacturer TP-LINK Technologies Co., Ltd
    Manufacturer Part Number DS106P
    Width 6.2"
    Length 1
    Height 1"
    Product ID 03422DS106P
    UNSPSC N/A
    Other Part Number N/A
    Special Price N/A
