RUCKUS ICX 7150 Enterprise-class Stackable Access Switch - 48 Ports - Manageable - Gigabit Ethernet, 10 Gigabit Ethernet, 2.5 Gigabit Ethernet - 10/100/1000Base-T, 10GBase-X - 3 Layer Supported - Modular - 24 W Power Consumption - 740 W PoE Budget - Twist

RUCKUS ICX 7150 Enterprise-class Stackable Access Switch - 48 Ports - Manageable - Gigabit Ethernet, 10 Gigabit Ethernet, 2.5 Gigabit Ethernet - 10/100/1000Base-T, 10GBase-X - 3 Layer Supported - Modular - 24 W Power Consumption - 740 W PoE Budget - Twist

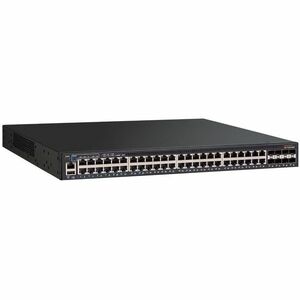

RUCKUS ICX 7150 Z-Series Switch

The RUCKUS ICX 7150-48ZP 48-port switch adds higher performance, greater resiliency and increased PoE power. The switch offers Multigigabit technology (IEEE 802.3bz) to match the highest performing 802.11ac Wave 2 wireless access points available, with dual redundant, hot-swappable power supplies and fans, and up to 8x10 GbE uplink/stacking ports.

The switch offers 16 Multigigabit (100Mbps/1Gbps/2.5Gbps) ports, each with Powerover-HDBaseT (PoH) up to 90 watts and 802.3bt ready, plus 32 10/100/1000 Mbps ports with PoE+. With a maximum PoE budget of 1480 watts, this switch delivers the power, and performance, to drive PoE+ power to all 48 ports.

Availability: Call or email

$5,840.24

Qty:

Description

Details

RUCKUS ICX 7150 Enterprise-class Stackable Access Switch - 48 Ports - Manageable - Gigabit Ethernet, 10 Gigabit Ethernet, 2.5 Gigabit Ethernet - 10/100/1000Base-T, 10GBase-X - 3 Layer Supported - Modular - 24 W Power Consumption - 740 W PoE Budget - Twisted Pair, Optical Fiber - PoE Ports - Black - 1U - Rack-mountable, Desktop, DIN Rail Mountable - Lifetime Limited Warranty

OVERVIEW:

Limited Warranty : Lifetime

Manageable : Yes

PoE (RJ-45) Port : Yes

Product Color : Black

Layer Supported : 3

Media Type Supported : Optical Fiber

Media Type Supported : Twisted Pair

Total Number of Network Ports : 48

Features : Energy Efficient

Features : Access Control List

Features : In-Service Software Upgrade (ISSU)

PoE Budget : 740 W

Networking Standards : IEEE 802.3af

Networking Standards : IEEE 802.3at

Networking Standards : IEEE 802.3bt

Networking Standards : IEEE 802.1br

Networking Standards : IEEE 802.1Q

Networking Standards : IEEE 802.3z

Networking Standards : IEEE 802.3x

Networking Standards : IEEE 802.3u

Networking Standards : IEEE 802.3bz

Networking Standards : IEEE 802.3ae

Networking Standards : IEEE 802.3ad

Networking Standards : IEEE 802.3ab

Networking Standards : IEEE 802.3

Networking Standards : IEEE 802.1w (RSTP)

Networking Standards : IEEE 802.1D

Networking Standards : IEEE 802.1ab

Networking Standards : IEEE 802.1s

Networking Standards : IEEE 802.1x

Networking Standards : IEEE 802.1p

Networking Standards : IEEE 802.3az

Ethernet Technology : 2.5 Gigabit Ethernet

Ethernet Technology : 10 Gigabit Ethernet

Ethernet Technology : Gigabit Ethernet

Total Number of Expansion Slots : 8

Network (RJ-45) : Yes

Compatible Rack Unit : 1U

Network Technology : 10GBase-X

Network Technology : 10/100/1000Base-T

Expansion Slot Type : SFP+

Uplink Port : Yes

Power Source : Power Supply

Form Factor : DIN Rail Mountable

Form Factor : Desktop

Form Factor : Rack-mountable

Modular : Yes

Redundant Power Supply Supported : Yes

Height : 1.7"

Stack Port : Yes

Number of Power Supplies Supported : 2

Width : 17.3"

Number of SFP+ Slots : 8

Port/Expansion Slot Details : 8 x 10 Gigabit Ethernet Expansion Slot

Port/Expansion Slot Details : 32 x Gigabit Ethernet PoE+

Port/Expansion Slot Details : 16 x 2.5Gigabit Ethernet PoH

Number of Power Supplies Installed : 1

Depth : 13.1"

Environmental Compliance : Waste Electrical and Electronic Equipment Directive (WEEE)

Environmental Compliance : Restriction of Hazardous Substances (RoHS) 6

Power Consumption : 24 W

Plug/Connector Type : C14

Weight (Approximate) : 14.57 lb

Additional Info

SKU	03021ICX715048ZPE8X10GR-BF
Weight	14.5700
Is Featured	N/A
Manufacturer	CommScope, Inc
Manufacturer Part Number	ICX7150-48ZP-E8X10GR
Width	17.3"
Length	1
Height	1.7"
Product ID	03021ICX715048ZPE8X10GR
UNSPSC	N/A
Other Part Number	N/A
Special Price	N/A
