QCT The Next Wave Data Center/Enterprise Switch - Manageable - 10GBase-X - 3 Layer Supported - Modular - Optical Fiber - Rack-mountable, Rail-mountable - 3 Year Limited Warranty

Data center networks face changes with hardware and meeting the requirements of the software it hosts. Quanta Cloud Technology provides a series of Bare Metal Switches, the QantaMesh BMS product line, that addresses these changes in the data center market. The QuantaMesh BMS product lines support speeds up to 100G speeds on their Ethernet Switches. To meet the requirements of high performance, high availability, fast scale out, low latency performance, and continuous serviceability in data center applications, the QuantaMesh BMS product line is the best choice.

BMC (Baseboard Management Controller) embedded on the server as the core of the Intelligent Platform Management Interface (IPMI) architecture can now be implemented in the Ethernet switch. In addition to providing health monitoring of the temperature, power status, and cooling fans; BMC also aids in the deployment and management of software and hardware peripherals.

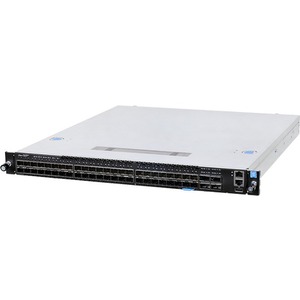

QuantaMesh T3048-LY7 supports 48 SFP+ (1/10GbE speed) ports and 4 QSFP28 (40/100GbE speed) in a compact rack unit size. By levering merchant silicon chip, T3048-LY7 is a high performance high density Ethernet switch with advanced features such as smart table, dynamic load balancing, and RIOT support. With ONIE (Open Network Installation Environment) pre-loaded it could be used for any OS which supports ONIE installer to achieve agile installation and fast response for the changing demand.

Availability: Call or email

$11,564.98
$11,564.98
Quanta Computer, lnc

Fast shipping on all in-stock products

Quick turnaround on RFQs - email us today.

Buy from a certified veteran-owned small business (VOSB)

Questions? Call customer service at 503-208-8410.

Description

Details

QCT The Next Wave Data Center/Enterprise Switch - Manageable - 10GBase-X - 3 Layer Supported - Modular - Optical Fiber - Rack-mountable, Rail-mountable - 3 Year Limited Warranty

OVERVIEW:

  • Limited Warranty : 3 Year
  • Manageable : Yes
  • Layer Supported : 3
  • Media Type Supported : Optical Fiber
  • Ethernet Technology : 100 Gigabit Ethernet
  • Ethernet Technology : 10 Gigabit Ethernet
  • Total Number of Expansion Slots : 52.0
  • Environmentally Friendly : Yes
  • Network Technology : 100GBase-X
  • Network Technology : 10GBase-X
  • Expansion Slot Type : QSFP28
  • Expansion Slot Type : SFP+
  • Power Source : Power Supply
  • Form Factor : Rail-mountable
  • Form Factor : Rack-mountable
  • Shared SFP Slot : No
  • Modular : Yes
  • Redundant Power Supply Supported : Yes
  • Height : 1.7"
  • Stack Port : No
  • Width : 17.3"
  • Number of SFP+ Slots : 48
  • Port/Expansion Slot Details : 4 x 100 Gigabit Ethernet Expansion Slot
  • Port/Expansion Slot Details : 48 x 10 Gigabit Ethernet Expansion Slot
  • Depth : 20"
  • Environmental Compliance : Restriction of Hazardous Substances (RoHS)
  • Country of Origin : NA
  • Weight (Approximate) : 19.58 lb
  • Additional Info

    Additional Info

    SKU 029341LY7UZZ0ST5-BF
    Weight 19.5800
    Is Featured N/A
    Manufacturer Quanta Computer, lnc
    Manufacturer Part Number 1LY7UZZ0ST5
    Width 17.3"
    Length 1
    Height 1.7"
    Product ID 029341LY7UZZ0ST5
    UNSPSC N/A
    Other Part Number N/A
    Special Price N/A
