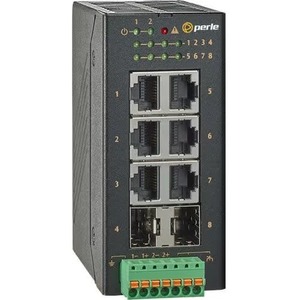

Perle IDS-106GE-2SFP-XT Ethernet Switch - 8 Ports - Gigabit Ethernet - 10/100/1000Base-T, 100/1000Base-X - 2 Layer Supported - Modular - 2 SFP Slots - 5.55 W Power Consumption - Twisted Pair, Optical Fiber - DIN Rail Mountable, Compact - 5 Year Limited Wa

With a combination of six Gigabit copper ports, and two SFP fiber ports for long distance connectivity, Perle IDS-106GE Industrial Gigabit Ethernet Switches are designed for easy deployment in industrial environments with harsh operating conditions and limited space. Designed to stand up to extreme temperatures, surges, vibrations, and shocks found in industrial automation, infrastructure, transportation, security, oil and gas, and mining the IDS-106GE Switches are economical easy-to-use devices, that provide essential industrial Ethernet networking functionality.

These unmanaged switches support 9 to 55VDC redundant power input and provide a relay alarm for power failure. The full/half-duplex auto-negotiation and auto MDI/MDIX operation simplifies installation and setup for convenient connection of a variety of network devices. And, QoS support allows for traffic prioritization and effective management of resources.

For automation and industrial control systems using EtherNet/IP or PROFINET, these rugged, DIN rail mountable switches with metal housing provides security and easy installation (mounting kit is included).

Availability: Call or email

$319.00
$319.00
Perle Systems, Inc

Fast shipping on all in-stock products

Quick turnaround on RFQs - email us today.

Buy from a certified veteran-owned small business (VOSB)

Questions? Call customer service at 503-208-8410.

Description

Details

Perle IDS-106GE-2SFP-XT Ethernet Switch - 8 Ports - Gigabit Ethernet - 10/100/1000Base-T, 100/1000Base-X - 2 Layer Supported - Modular - 2 SFP Slots - 5.55 W Power Consumption - Twisted Pair, Optical Fiber - DIN Rail Mountable, Compact - 5 Year Limited Warranty

OVERVIEW:

  • Limited Warranty : 5 Year
  • Manageable : No
  • Layer Supported : 2
  • Package Contents :
    • IDS-106GE-2SFP-XT Ethernet Switch
    • Terminal Block
    • Installation Guide
    • Mounting Kit
  • Media Type Supported : Optical Fiber
  • Media Type Supported : Twisted Pair
  • Total Number of Network Ports : 8
  • Features : Fanless
  • Product Material : Metal
  • Networking Standards : IEEE 802.1p
  • Networking Standards : IEEE 802.3az
  • Networking Standards : IEEE 802.3u
  • Networking Standards : IEEE 802.3
  • Ethernet Technology : Gigabit Ethernet
  • Network (RJ-45) : Yes
  • Input Voltage : 55 V DC
  • Input Voltage : 9 V DC
  • Environmentally Friendly : Yes
  • Network Technology : 100/1000Base-X
  • Network Technology : 10/100/1000Base-T
  • Expansion Slot Type : SFP (mini-GBIC)
  • Form Factor : Compact
  • Form Factor : DIN Rail Mountable
  • Modular : Yes
  • Number of SFP Slots : 2
  • Port/Expansion Slot Details : 2 x Gigabit Ethernet Expansion Slot
  • Port/Expansion Slot Details : 6 x Gigabit Ethernet Network
  • Environmental Compliance : Waste Electrical and Electronic Equipment Directive (WEEE)
  • Environmental Compliance : Restriction of Hazardous Substances (RoHS)
  • Environmental Compliance : Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
  • Power Consumption : 5.55 W
  • Plug/Connector Type : Terminal Block
  • Additional Info

    Additional Info

    SKU 0281207017390-BF
    Weight 1.0000
    Is Featured N/A
    Manufacturer Perle Systems, Inc
    Manufacturer Part Number 07017390
    Width 1
    Length 1
    Height 1
    Product ID 0281207017390
    UNSPSC N/A
    Other Part Number N/A
