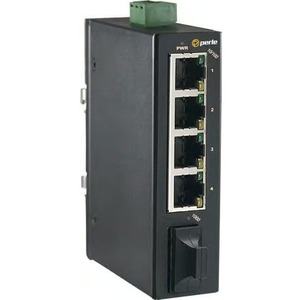

Perle IDS-104FE-S2ST20 Ethernet Switch - 5 Ports - Fast Ethernet - 100Base-TX, 100Base-FX - 2 Layer Supported - 1.82 W Power Consumption - Twisted Pair, Optical Fiber - DIN Rail Mountable, Compact - 5 Year Limited Warranty

With a combination of four Fast Ethernet copper ports, and one Fast Ethernet fiber port for long distance connectivity, Perle IDS-104FE Industrial Ethernet Switches are designed for easy deployment in industrial environments with harsh operating conditions and limited space. Designed to stand up to extreme temperatures, surges, vibrations, and shocks found in industrial automation, infrastructure, transportation, security, oil and gas, and mining the IDS-104FE Switches are economical easy-to-use devices, that provide essential industrial Ethernet networking functionality.

These unmanaged switches support 9 to 55VDC redundant power input and provide a relay alarm for power failure. The full/half-duplex auto-negotiation and auto MDI/MDIX operation simplifies installation and setup for convenient connection of a variety of network devices. And, QoS support allows for traffic prioritization and effective management of resources.

For automation and industrial control systems using EtherNet/IP, these rugged, DIN rail mountable switches with metal housing provides security and easy installation (mounting kit is included).

Availability: Call or email

$184.00
$184.00
Perle Systems, Inc

Fast shipping on all in-stock products

Quick turnaround on RFQs - email us today.

Buy from a certified veteran-owned small business (VOSB)

Questions? Call customer service at 503-208-8410.

Description

Details

Perle IDS-104FE-S2ST20 Ethernet Switch - 5 Ports - Fast Ethernet - 100Base-TX, 100Base-FX - 2 Layer Supported - 1.82 W Power Consumption - Twisted Pair, Optical Fiber - DIN Rail Mountable, Compact - 5 Year Limited Warranty

OVERVIEW:

  • Limited Warranty : 5 Year
  • Manageable : No
  • Layer Supported : 2
  • Package Contents :
    • IDS-104FE-S2ST20 Ethernet Switch
    • Terminal Block
    • Installation Guide
    • Mounting Kit
  • Media Type Supported : Optical Fiber
  • Media Type Supported : Twisted Pair
  • Total Number of Network Ports : 5
  • Features : Fanless
  • Product Material : Plastic
  • Product Material : Metal
  • Networking Standards : IEEE 802.1p
  • Networking Standards : IEEE 802.3az
  • Networking Standards : IEEE 802.3x
  • Networking Standards : IEEE 802.3u
  • Ethernet Technology : Fast Ethernet
  • Network (RJ-45) : Yes
  • Input Voltage : 55 V DC
  • Input Voltage : 9 V DC
  • Environmentally Friendly : Yes
  • Network Technology : 100Base-FX
  • Network Technology : 100Base-TX
  • Form Factor : Compact
  • Form Factor : DIN Rail Mountable
  • Height : 1"
  • Width : 4.3"
  • Port/Expansion Slot Details : 5 x Fast Ethernet Network
  • Depth : 2.8"
  • Environmental Compliance : Waste Electrical and Electronic Equipment Directive (WEEE)
  • Environmental Compliance : Restriction of Hazardous Substances (RoHS)
  • Environmental Compliance : Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
  • Power Consumption : 1.82 W
  • Plug/Connector Type : Terminal Block
  • Weight (Approximate) : 7.05 oz
  • Additional Info

    Additional Info

    SKU 0281207017440-BF
    Weight 7.0500
    Is Featured N/A
    Manufacturer Perle Systems, Inc
    Manufacturer Part Number 07017440
    Width 4.3"
    Length 1
    Height 1"
    Product ID 0281207017440
    UNSPSC N/A
    Other Part Number N/A
    Special Price N/A
