Omnitron Systems 10G Unmanaged Multi-Gigabit / Multi-Rate Ethernet Switch - 2x 10/100/1000BASE-T, 3x 10/100/1000/2.5G/5G/10GBASE-T, AC Powered, 5 Year Warranty

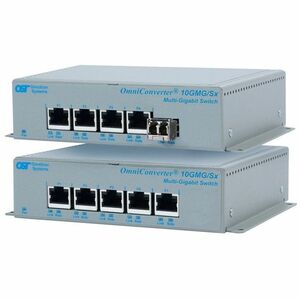

The OmniConverter 10GMG/Sx are unmanaged multigigabit Ethernet switches featuring one 1/10G SFP/SFP+ or multi-gigabit/multi-rate RJ-45 uplink port with two multi-gigabit/multi-rate RJ-45 and two 10/100/1000 RJ-45 downlink/access ports. The RJ-45 user ports support multigigabit/multi-rate speeds of 100Mbps, 1Gbps, 2.5Gbps, 5Gbps and 10Gbps.

The OmniConverter switches feature a Small Form Pluggable (SFP) transceiver receptacle port supporting a variety of copper and fiber transceivers. It supports 10/100/1000BASE-T, 1000BASE-T, 2.5GBASE-T, 5GBASE-T and 10GBASE-T copper transceivers and 1G and 10G multimode or single-mode fiber, dual or single-fiber transceivers in standard, CWDM and DWDM wavelengths.

The OmniConverter switches support frame sizes up to 10,240 bytes.

The OmniConverter switches are well suited for the bandwidth demands imposed by IP cameras, access points and small cell devices on the market today. OmniConverter 10G switches provide high-speed network distance extension with fiber optic cabling.

All models support Directed Switch mode, which directs multicast traffic (such as video) only to the appropriate uplink port, preventing multicast traffic from flooding other network ports.

The compact standalone OmniConverter switches can be tabletop mounted, wall mounted, or DIN-rail mounted using an optional DIN-rail mounting clip (8251-0). They can also be mounted on a 1U 19" rack-mount shelf. They are available with DC input power via terminal connector or an external 100 to 240VAC power adapter.

Availability: Call or email

$1,979.48
$1,979.48

Fast shipping on all in-stock products

Quick turnaround on RFQs - email us today.

Buy from a certified veteran-owned small business (VOSB)

Questions? Call customer service at 503-208-8410.

Description

Details

Omnitron Systems 10G Unmanaged Multi-Gigabit / Multi-Rate Ethernet Switch - 2x 10/100/1000BASE-T, 3x 10/100/1000/2.5G/5G/10GBASE-T, AC Powered, 5 Year Warranty

OVERVIEW:

  • Limited Warranty : 5 Year
  • Manageable : No
  • Layer Supported : 2
  • Package Contents :
    • OmniConverter 10GMG/S, 5x RJ-45, Made in USA TAA/BAA/NDAA Compliant
    • AC Power Supply
    • US Power Cable
    • User Manual
  • Media Type Supported : Twisted Pair
  • Total Number of Network Ports : 5
  • Networking Standards : IEEE 802.3bz
  • Networking Standards : IEEE 802.3
  • Ethernet Technology : 10 Gigabit Ethernet
  • Ethernet Technology : Gigabit Ethernet
  • Network (RJ-45) : Yes
  • Input Voltage : 230 V AC
  • Input Voltage : 120 V AC
  • Input Voltage : 57 V DC
  • Input Voltage : 12 V DC
  • Compatible Rack Unit : 1U
  • Environmentally Friendly : Yes
  • Network Technology : 10GBase-T
  • Network Technology : 10/100/1000Base-T
  • Uplink Port : Yes
  • Power Source : Power Supply
  • Power Source : Power Adapter
  • Power Source : AC/DC
  • Form Factor : Standalone
  • Form Factor : Table Top
  • Form Factor : DIN Rail Mountable
  • Form Factor : Wall Mountable
  • Height : 1.5"
  • Width : 6.3"
  • Port/Expansion Slot Details : 2 x Gigabit Ethernet Network
  • Port/Expansion Slot Details : 3 x 10 Gigabit Ethernet Network
  • Depth : 5.2"
  • Environmental Compliance : Waste Electrical and Electronic Equipment Directive (WEEE)
  • Environmental Compliance : Restriction of Hazardous Substances (RoHS)
  • Environmental Compliance : Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
  • Country of Origin : United States
  • Weight (Approximate) : 1.50 lb
  • TAA Compliant : Yes
  • Additional Info

    Additional Info

    SKU 0271796501141-BF
    Weight 1.5000
    Is Featured N/A
    Manufacturer Omnitron Systems
    Manufacturer Part Number 9650-1-14-1
    Width 6.3"
    Length 1
    Height 1.5"
    Product ID 0271796501141
    UNSPSC N/A
    Other Part Number N/A
    Special Price N/A
