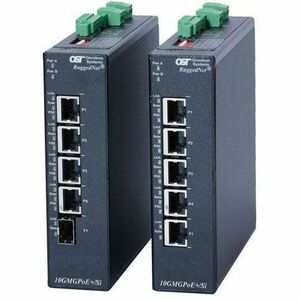

Omnitron Systems 10G Unmanaged Industrial Multi-Gigabit / Multi-Rate PoE + Switch - 1x 1000/10GBASE-X (SFP/SFP+) + 2x 10/100/1000/2.5G/5G/10GBASE-T PoE/PSE, 2x 10/100/1000BASE-T PoE/PSE, DC Terminal Powered, 5 Year Warranty

The RuggedNet 10GMGPoE+/Si and 10GMGPoEBT/Si are unmanaged industrial multi-gigabit Ethernet switches featuring one 1/10G SFP/SFP+ or multi-gigabit/multi-rate RJ-45 uplink port with two multi-gigabit/multi-rate RJ-45 and two 10/100/1000 RJ-45 Power-over-Ethernet downlink/access ports. They support PoE, PoE+ and PoEBT up to 100 watts depending on the model.

The RJ-45 user ports support multi-gigabit/multi-rate speeds of 100Mbps, 1Gbps, 2.5Gbps, 5Gbps and 10Gbps. The 10GMGPoE+/Si supports IEEE 802.3at (15 and 30W) and the 10GMGPoEBT/Si supports IEEE 802.3bt (60 and 100W) per user port depending on the model.

The RuggedNet switches feature a Small Form Pluggable (SFP) transceiver receptacle port supporting a variety of copper and fiber transceivers. It supports 10/100/1000BASE-T, 1000BASE-T, 2.5GBASE-T, 5GBASE-T and 10GBASE-T copper transceivers and 1G and 10G multimode or single-mode fiber, dual or single-fiber transceivers in standard, CWDM and DWDM wavelengths. The RuggedNet switches support frame sizes up to 10,240 bytes.

The RuggedNet PoE switches are well suited for the power and bandwidth demands imposed by IP cameras, access points and small cell devices on the market today. RuggedNet 10G switches provide high-speed network distance extension with fiber optic cabling, and function as PoE injectors.

All models support Directed Switch mode, which directs multicast traffic (such as video) only to the appropriate uplink port, preventing multicast traffic from flooding other network ports.

Configurable features include a PoE power reset function that enables a PD device to be re-initialized remotely, eliminating the need for costly truck rolls to remote PD sites. When a problem with a PD is identified, the fiber port on a managed switch can be shut down or disconnected, triggering the PoE power reset function on the RuggedNet. The PoE power to the PD is disabled for 5 seconds when a loss of receive fiber link is detected by the RuggedNet.

The compact standalone RuggedNet switches can be tabletop mounted, wall mounted, or DIN-rail mounted using an optional DIN-rail mounting clip (8251-0). They can also be mounted on a 1U 19" rack-mount shelf. They are available with DC input power via terminal connector or an external 100 to 240VAC power adapter.

Availability: Call or email

Regular Price: $2,698.59

Special Price $2,536.67

Regular Price: $2,698.59

Special Price $2,536.67

Fast shipping on all in-stock products

Quick turnaround on RFQs - email us today.

Buy from a certified veteran-owned small business (VOSB)

Questions? Call customer service at 503-208-8410.

Description

Details

Omnitron Systems 10G Unmanaged Industrial Multi-Gigabit / Multi-Rate PoE + Switch - 1x 1000/10GBASE-X (SFP/SFP+) + 2x 10/100/1000/2.5G/5G/10GBASE-T PoE/PSE, 2x 10/100/1000BASE-T PoE/PSE, DC Terminal Powered, 5 Year Warranty

OVERVIEW:

  • Limited Warranty : 5 Year
  • Manageable : No
  • PoE (RJ-45) Port : Yes
  • Layer Supported : 2
  • Package Contents :
    • RuggedNet 10GMGPoE+/Si, 1 x SFP/SFP+, 4 x RJ-45 PoE/PSE, Made in USA TAA/BAA/NDAA Compliant
    • User Manual
  • Media Type Supported : Optical Fiber
  • Media Type Supported : Twisted Pair
  • Total Number of Network Ports : 4
  • Networking Standards : IEEE 802.3bz
  • Networking Standards : IEEE 802.3
  • Ethernet Technology : Gigabit Ethernet
  • Ethernet Technology : 10 Gigabit Ethernet
  • Total Number of Expansion Slots : 1.0
  • Input Voltage : 46 V DC
  • Input Voltage : 230 V AC
  • Input Voltage : 120 V AC
  • Input Voltage : 57 V DC
  • Compatible Rack Unit : 1U
  • Environmentally Friendly : Yes
  • Network Technology : 10GBase-X
  • Network Technology : 10GBase-T
  • Network Technology : 10/100/1000Base-T
  • Expansion Slot Type : SFP+
  • Expansion Slot Type : SFP
  • Power Source : PoE+
  • Power Source : Power Adapter
  • Power Source : AC/DC
  • Form Factor : Standalone
  • Form Factor : Table Top
  • Form Factor : DIN Rail Mountable
  • Form Factor : Wall Mountable
  • Height : 1.5"
  • Number of SFP Slots : 1
  • Width : 6.3"
  • Number of SFP+ Slots : 1
  • Port/Expansion Slot Details : 2 x Gigabit Ethernet PoE+
  • Port/Expansion Slot Details : 1 x 10 Gigabit Ethernet (SFP/SFP+)
  • Port/Expansion Slot Details : 2 x 10 Gigabit Ethernet PoE+
  • Depth : 5.2"
  • Environmental Compliance : Waste Electrical and Electronic Equipment Directive (WEEE)
  • Environmental Compliance : Restriction of Hazardous Substances (RoHS)
  • Environmental Compliance : Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
  • Country of Origin : United States
  • Weight (Approximate) : 1.50 lb
  • TAA Compliant : Yes
  • Additional Info

    Additional Info

    SKU 0271796610142Z-BF
    Weight 1.5000
    Is Featured N/A
    Manufacturer Omnitron Systems
    Manufacturer Part Number 9661-0-14-2Z
    Width 6.3"
    Length 1
    Height 1.5"
    Product ID 0271796610142Z
    UNSPSC N/A
    Other Part Number N/A
    Special Price N/A
