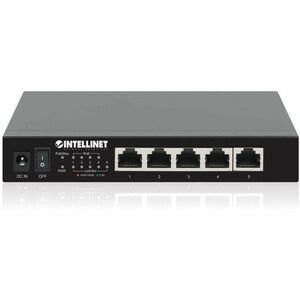

Intellinet 5-Port 2.5G Ethernet PoE+ Switch - 5 Ports - Gigabit Ethernet, 2.5 Gigabit Ethernet - 10/100/1000Base-T, 2500Base-T - 58 W Power Consumption - 55 W PoE Budget - Twisted Pair - PoE Ports - Desktop, Wall Mountable - TAA Compliant

Next-gen 2.5 Gbps Desktop 5-Port PoE Switch - Supports 10/100/1000/2500 Mbps, Power over Ethernet 802.3at

The 5-Port 2.5G Ethernet Unmanaged PoE+ Switch from Intellinet Network Solutions passes both data and electrical power to a number of PoE-compatible devices via standard Cat5e or Cat6 network cables. Equipped with five multi-gigabit Ethernet PoE+ copper ports, this Switch can power wireless LAN bridges, VoIP phones and more while delivering network speeds up to 2500 Mbps.

Eliminate bottlenecks with 2.5G capability - great for high-bandwidth Wi-Fi 6 IEEE 802.11ax Access Points and more

Since at least the arrival of Wi-Fi 6 (but even with legacy Wi-Fi 5 [802.11ac]), "regular" Gigabit Ethernet ports have been at their bandwidth limits when connecting to wireless networks. This Switch's ability to support 2.5GBASE-T means it can deliver data to wireless APs faster and better accommodate other higher-bandwidth devices in your enterprise network.

High-power PoE+ with output up to 30 watts

This switch supports the IEEE 802.3at protocol and can inject up to 30 watts of power per port. IEEE802.3af- or IEEE802.3at-compliant devices attached to the switch require no additional power, which eliminates the time and expense of electrical rewiring and minimizes the unsightly clutter caused by power supplies and adapters in awkward places such as ceilings and walls. Any mix of PoE and non-PoE devices is supported, and thanks to its short circuit, overload and high-voltage protection function, your equipment is well-protected.

Availability: Call or email

$164.33
$164.33

Fast shipping on all in-stock products

Quick turnaround on RFQs - email us today.

Buy from a certified veteran-owned small business (VOSB)

Questions? Call customer service at 503-208-8410.

Description

Details

Intellinet 5-Port 2.5G Ethernet PoE+ Switch - 5 Ports - Gigabit Ethernet, 2.5 Gigabit Ethernet - 10/100/1000Base-T, 2500Base-T - 58 W Power Consumption - 55 W PoE Budget - Twisted Pair - PoE Ports - Desktop, Wall Mountable - TAA Compliant

OVERVIEW:

  • Manageable : No
  • PoE (RJ-45) Port : Yes
  • Media Type Supported : Twisted Pair
  • Total Number of Network Ports : 5
  • Features : Fanless
  • PoE Budget : 55 W
  • Product Material : Metal
  • Networking Standards : IEEE 802.3bz
  • Networking Standards : IEEE 802.3x
  • Networking Standards : IEEE 802.3u
  • Networking Standards : IEEE 802.3at
  • Networking Standards : IEEE 802.3af
  • Networking Standards : IEEE 802.3ab
  • Networking Standards : IEEE 802.3
  • Ethernet Technology : 2.5 Gigabit Ethernet
  • Ethernet Technology : Gigabit Ethernet
  • Network (RJ-45) : Yes
  • Input Voltage : 230 V AC
  • Input Voltage : 120 V AC
  • Network Technology : 2500Base-T
  • Network Technology : 10/100/1000Base-T
  • Power Source : Power Adapter
  • Form Factor : Wall Mountable
  • Form Factor : Desktop
  • Height : 1"
  • Width : 6.3"
  • Port/Expansion Slot Details : 5 x 10/100/1000/2500 Gigabit Ethernet RJ-45 Network Ports
  • Power Consumption : 58 W
  • Length : 4.3"
  • Maximum Data Transfer Rate : 312.50 MB/s
  • Weight (Approximate) : 1.10 lb
  • TAA Compliant : Yes
  • Additional Info

    Additional Info

    SKU 02162561921-BF
    Weight 1.1000
    Is Featured N/A
    Manufacturer IC INTRACOM
    Manufacturer Part Number 561921
    Width 6.3"
    Length 4.3"
    Height 1"
    Product ID 02162561921
    UNSPSC N/A
    Other Part Number N/A
