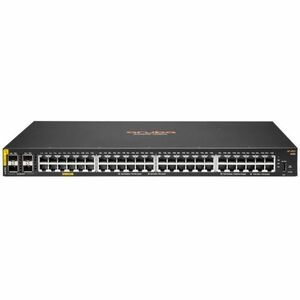

HPE CX 6100 48G Class4 PoE 4SFP+ 370W Switch - 48 Ports - Manageable - Gigabit Ethernet, 10 Gigabit Ethernet - 10/100/1000Base-T, 10GBase-X - 2 Layer Supported - Modular - 30.60 W Power Consumption - 370 W PoE Budget - Twisted Pair, Optical Fiber - PoE Po

The HPE Aruba Networking CX 6100 Switch Series is a modern family of entry level access switches ideal for branch offices, mid-market enterprise, and SMB networks. Designed for reliable, simple, and secure access, the HPE CX 6100 switches provide a convenient wired access solution for enterprise networks supporting IoT, mobile, and cloud applications.

Prepare your network for tomorrow's unpredictable demands with a powerful Aruba ASIC architecture and programmable AOS-CX operating system used across the HPE Aruba CX portfolio to deliver a more consistent, more efficient operator experience. This layer 2 switch series has convenient built-in high speed uplinks with up to 740W of IEEE 802.3at Class 4 PoE to support IoT devices such as security cameras and wireless APs. A compact and fanless 12 port model is ideal for use in quiet work spaces. With robust QoS, support for static routing, and IPv6, the HPE CX 6100 also simplifies ownership with no switch software licensing requirements.

Entry Level Aruba CX Access Layer Switches

The HPE Aruba Networking CX 6100 Switch Series offers gigabit connectivity with high speed uplinks and optional PoE to provide entry level, reliable, and convenient wired access connectivity for enterprise branch office and SMB networks.

Using Aruba AOS-CX operating system across HPE Aruba Networking CX switching platforms and deployment domains provides a simpler, more consistent operator experience.

Fully-managed enterprise class switches deliver Layer 2 capabilities with support static routing, ACLs, robust QoS, traffic prioritization, sFlow, and IPv6 support.

Right size deployment with choice of 12, 24, and 48 port 1U models with convenient built-in 1/10 GbE uplinks and up to 740W of Class 4 PoE.

Simplifies ownership with no switch software licensing or subscriptions required.

Performance and Power

The HPE Aruba Networking CX 6100 Switch Series is designed with Aruba ASICs that deliver very low latency, increased packet buffering, and adaptive power consumption.

Deploy wireless access points and IoT devices with HPE Aruba Networking CX 6100 switch models that support up to740W IEEE 802.3at Class 4 Power over Ethernet for up to 30W per port.

Four built-in wire speed 1/10GbE uplinks eliminate bottlenecks at the access layer where users and devices connect.

Simplified Configuration and Management

The HPE Aruba Networking CX 6100 Switch Series provides flexibility to manage and simplify configurations with Aruba Central, Aruba NetEdit, easy to use Web GUI, or industry standard CLI.

Aruba NetEdit introduces automation that allows for rapid network-wide changes and verifies policy conformance post network updates.

Manage via single pane of glass with Aruba Central across wired, wireless, and WAN.

Reduce manual IT operation tasks around initial deployment or on-going configuration changes to accommodate adds, moves, and changes with colorless ports using local user roles and local-MAC-Authentication (LMA).

Software-defined ready with REST APIs for fine-grained programmability of network tasks.




Availability: Call or email

To see product price, add this item to your cart. You can always remove it later. What's this?
To see product price, add this item to your cart. You can always remove it later. What's this?

Fast shipping on all in-stock products

Quick turnaround on RFQs - email us today.

Buy from a certified veteran-owned small business (VOSB)

Questions? Call customer service at 503-208-8410.

Description

Details

HPE CX 6100 48G Class4 PoE 4SFP+ 370W Switch - 48 Ports - Manageable - Gigabit Ethernet, 10 Gigabit Ethernet - 10/100/1000Base-T, 10GBase-X - 2 Layer Supported - Modular - 30.60 W Power Consumption - 370 W PoE Budget - Twisted Pair, Optical Fiber - PoE Ports - 1U - Rack-mountable, Wall Mountable

OVERVIEW:

  • Manageable : Yes
  • PoE (RJ-45) Port : Yes
  • Product Color : Black
  • Layer Supported : 2
  • Media Type Supported : Optical Fiber
  • Media Type Supported : Twisted Pair
  • Total Number of Network Ports : 48
  • PoE Budget : 370 W
  • Networking Standards : IEEE 802.1p
  • Networking Standards : IEEE 802.1Q
  • Networking Standards : IEEE 802.1s
  • Networking Standards : IEEE 802.1w
  • Networking Standards : IEEE 802.3
  • Networking Standards : IEEE 802.3ab
  • Networking Standards : IEEE 802.3az
  • Networking Standards : IEEE 802.3x
  • Networking Standards : IEEE 802.3at
  • Ethernet Technology : 10 Gigabit Ethernet
  • Ethernet Technology : Gigabit Ethernet
  • Total Number of Expansion Slots : 4.0
  • Input Voltage : 230 V AC
  • Input Voltage : 120 V AC
  • Compatible Rack Unit : 1U
  • Environmentally Friendly : Yes
  • Network Technology : 10GBase-X
  • Network Technology : 10/100/1000Base-T
  • Expansion Slot Type : SFP+
  • Uplink Port : Yes
  • Power Source : Power Supply
  • Form Factor : Wall Mountable
  • Form Factor : Rack-mountable
  • Modular : Yes
  • Height : 1.7"
  • Number of Power Supplies Supported : 1
  • Width : 17.4"
  • Number of SFP+ Slots : 4
  • Port/Expansion Slot Details : 4 x 10 Gigabit Ethernet SFP+ Expansion Slot
  • Port/Expansion Slot Details : 48 x Gigabit Ethernet PoE
  • Number of Power Supplies Installed : 1
  • Depth : 12"
  • Environmental Compliance : Restriction of Hazardous Substances (RoHS)
  • Power Consumption : 30.60 W
  • Maximum Data Transfer Rate : 1.25 GB/s
  • Weight (Approximate) : 11.02 lb
  • Additional Info

    Additional Info

    SKU 04096JL675A#ACJ-BF
    Weight 11.0200
    Is Featured N/A
    Manufacturer Hewlett Packard Enterprise
    Manufacturer Part Number JL675A#ACJ
    Width 17.4"
    Length 1
    Height 1.7"
    Product ID 04096JL675A#ACJ
    UNSPSC N/A
    Other Part Number N/A
    Special Price N/A
