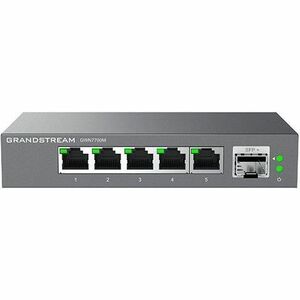

Grandstream GWN7700 Ethernet Switch - 5 Ports - Gigabit Ethernet, 2.5 Gigabit Ethernet - 100/1000Base-T, 2.5GBase-T, 1000Base-X - 2 Layer Supported - 7 W Power Consumption - Twisted Pair, Optical Fiber - Wall Mountable, Desktop

GWN7700M Series

Unmanaged 2.5G Multi-Gigabit Network Switches

The GWN7700M series are 6 & 9 port unmanaged multi-Gigabit network switches that provide high-speed network connectivity up to 2.5Gbps to home offices and small-to-medium businesses

  • 5 and 8 Multi-Gigabit Copper Ports provide 100/1000/2500Mbps connectivity
  • One SFP+ Fiber Port with 1 Gigabit or 10-Gigabit connectivity
  • LED Indicators; Per port: Link/Activity/Speed Per device: Power
  • Auto MDI/MDIX crossover for all ports
  • Whisper Quiet: fanless
  • Broadcast/Multicast/Unicast Storm Control (fixed to 100Mbps) to monitor traffic levels
  • Green technology reduces power consumption
  • QoS - Supports Default Strict Priority when present

Unmanaged Network Switches

The GWN7700M Series are 6 and 9 port unmanaged multi-Gigabit network switches that provide high-speed network connectivity

through 5 or 8 built-in 2.5 Gbps ports.

Plug and Play

These unmanaged switches do not require any configuration or installation, allowing deployments to be up and running immediately.

Availability: Call or email

$60.00
$60.00

Fast shipping on all in-stock products

Quick turnaround on RFQs - email us today.

Buy from a certified veteran-owned small business (VOSB)

Questions? Call customer service at 503-208-8410.

Description

Details

Grandstream GWN7700 Ethernet Switch - 5 Ports - Gigabit Ethernet, 2.5 Gigabit Ethernet - 100/1000Base-T, 2.5GBase-T, 1000Base-X - 2 Layer Supported - 7 W Power Consumption - Twisted Pair, Optical Fiber - Wall Mountable, Desktop

OVERVIEW:

  • Manageable : No
  • Layer Supported : 2
  • Media Type Supported : Optical Fiber
  • Media Type Supported : Twisted Pair
  • Total Number of Network Ports : 5
  • Features : Energy Efficient
  • Features : Plug and Play
  • Features : Fanless
  • Product Material : Plastic
  • Networking Standards : IEEE 802.3aq
  • Networking Standards : IEEE 802.3ae
  • Networking Standards : IEEE 802.1x
  • Networking Standards : IEEE 802.1p
  • Networking Standards : IEEE 802.3x
  • Networking Standards : IEEE 802.3bz
  • Networking Standards : IEEE 802.3ab
  • Networking Standards : IEEE 802.3u
  • Networking Standards : IEEE 802.3i
  • Ethernet Technology : 2.5 Gigabit Ethernet
  • Ethernet Technology : Gigabit Ethernet
  • Total Number of Expansion Slots : 1
  • Network (RJ-45) : Yes
  • Input Voltage : 12 V DC
  • Network Technology : 1000Base-X
  • Network Technology : 2.5GBase-T
  • Network Technology : 100/1000Base-T
  • Expansion Slot Type : SFP+
  • Uplink Port : Yes
  • Power Source : Power Adapter
  • Form Factor : Desktop
  • Form Factor : Wall Mountable
  • Height : 1.1"
  • Width : 3.1"
  • Number of SFP+ Slots : 1
  • Port/Expansion Slot Details : 1 ? Gigabit Ethernet SFP+ Expansion Slot
  • Port/Expansion Slot Details : 5 ? 100/1000/2500 Gigabit Ethernet RJ-45 Network Port
  • Power Consumption : 7 W
  • Length : 5.7"
  • Maximum Data Transfer Rate : 320 MB/s
  • Additional Info

    Additional Info

    SKU 05071GWN7700M-BF
    Weight 1.0000
    Is Featured N/A
    Manufacturer Grandstream Networks, Inc
    Manufacturer Part Number GWN7700M
    Width 3.1"
    Length 5.7"
    Height 1.1"
    Product ID 05071GWN7700M
    UNSPSC N/A
    Other Part Number N/A
    Special Price N/A
