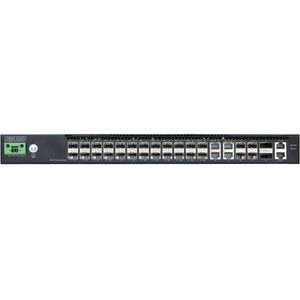

The Edgecore ECS4530 Series switch is a high port density Gigabit Ethernet fiber switch with four 10G uplink ports. By inserting a CSFP transceiver with two bidirectional fiber ports into a CSFP port, Internet Service Providers (ISPs) and Multiple System Operators (MSOs) can support twice as many subscribers per port and reduce the space and heating or cooling costs needed for deploying two 24 port switches and larger 48-port switches. The switch is ideal for ISPs/MSOs that want to provide home users with FTTH triple-play services with up to a Gigabit of bandwidth. It is also ideal for ISPs/MSOs that want to aggregate FE/GE access switches with Gigabit fiber uplinks. The ECS4530 Series switch is packed with features that bring high availability, comprehensive security, robust multicast control, and advance QoS to the network edge, while maintaining simple management. The switch also supports the most advanced IPv6 management, IPv6 security, and IPv6 multicast control in accordance with the growth of IPv6 deployment.
Key Features and Benefits | Performance and Scalability
The Edgecore ECS4530 Series is a high-performance Gigabit Ethernet Layer 2+ managed switch with 256Gbps switching capacity. The switch delivers wire-speed switching performance on all Gigabit ports, taking full advantage of existing high-performance Gigabit fiber IAD, CPEs, and access switches with Gigabit fiber uplinks etc, significantly improving the responsiveness of applications and file transfer times. There are 24 CSFP ports, and by inserting a CSFP transceiver that supports two BIDI fiber ports, each port can connect to two CPE/IAD devices, so the total number of physical ports is 48.
The four built-in 10G SFP+ ports provide uplink flexibility, allowing the insertion of fiber or copper, Gigabit or 10G transceivers, to create 10 Gbps high-speed uplinks to servers or service provider, corporate, or campus networks, reducing bottlenecks and increasing the performance of the access network.
Continuous Availability
The IEEE 802.1w Rapid Spanning Tree Protocol provides a loop-free network and redundant links to the core network with rapid convergence, to ensure faster recovery from failed links, enhancing overall network stability and reliability. The IEEE 802.1s Multiple Spanning Tree Protocol runs STP per VLAN base, providing Layer 2 load sharing on redundant links up to 64 instances.
The ECS4530 Series supports IEEE 802.3ad Link Aggregation Control Protocol (LACP). It increases bandwidth by automatically aggregating several physical links together as a logical trunk and offers load balancing and fault tolerance for uplink connections.
The ECS4530 Series supports G.8032 Ethernet Ring Protection Switching with the ability for the network to detect and recover from incidents without impacting users, meeting the most demanding quality and availability requirements. Rapid recovery time when problems do occur is as low as 50ms.
Enhanced Security
Port security limits the total number of devices from using a switch port and protects against MAC flooding attacks.
IEEE 802.1X port-based or MAC-based access control ensures all users are authorized before being granted access to the network. When a user is authenticated, the VLAN, QoS and security policy are automatically applied the port where the user is connected, otherwise the port is grouped in a guest VLAN with limited access.
DHCP snooping allows a switch to protect a network from rogue DHCP servers that offer invalid IP addresses.
IP Source Guard prevents people from using IP addresses that were not assigned to them.
