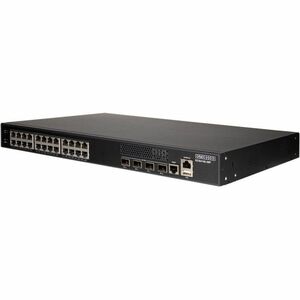

Edge-Core ECS4150-28P Ethernet Switch - 24 Ports - Manageable - Gigabit Ethernet, 10 Gigabit Ethernet - 10/100/1000Base-T, 10GBase-X - 4 Layer Supported - Modular - 450 W Power Consumption - 370 W PoE Budget - Twisted Pair, Optical Fiber - PoE Ports - 5 Y

The Edgecore ECS4150-28T switch is a Gigabit Ethernet access switch with four 10G SFP+ uplinks. The switch is ideal for Internet Service Providers (ISPs) and Multiple System Operators (MSOs) wanting to provide home users with triple-play services with up to a Gigabit of bandwidth. This switch is also positioned as Cloud Edge access switch to connect IOT and other devices in Enterprises and SMB deployments. It is also an ideal Gigabit access switch for SMB, enterprise, and campus networks. The ECS4150-28P is a PoE switch which can provide up to 30 Watts to Power Devices such as Wireless Access Point, VoIP Phone, Surveillance camera, IoT devices etc over Cat 5 UTP cable eliminate the need for individual power source. The ECS4150-28T/ECS4150-28P is packed with features that bring high availability, comprehensive security, robust multicast control, and advance QoS to the network edge, while maintaining simple management. The switch also supports the most advance IPv6 management, IPv6 security, and IPv6 multicast control in accordance with the growth of IPv6 deployment

Availability: Call or email

$999.00
$999.00

Fast shipping on all in-stock products

Quick turnaround on RFQs - email us today.

Buy from a certified veteran-owned small business (VOSB)

Questions? Call customer service at 503-208-8410.

Description

Details

Edge-Core ECS4150-28P Ethernet Switch - 24 Ports - Manageable - Gigabit Ethernet, 10 Gigabit Ethernet - 10/100/1000Base-T, 10GBase-X - 4 Layer Supported - Modular - 450 W Power Consumption - 370 W PoE Budget - Twisted Pair, Optical Fiber - PoE Ports - 5 Year Limited Warranty

OVERVIEW:

  • Limited Warranty : 5 Year
  • Manageable : Yes
  • PoE (RJ-45) Port : Yes
  • Layer Supported : 4
  • Media Type Supported : Optical Fiber
  • Media Type Supported : Twisted Pair
  • Total Number of Network Ports : 24
  • Features : Fanless
  • PoE Budget : 370 W
  • Networking Standards : IEEE 802.3at
  • Networking Standards : IEEE 802.3af
  • Networking Standards : IEEE 802.1ab
  • Networking Standards : IEEE 802.1p
  • Networking Standards : IEEE 802.3ae
  • Networking Standards : IEEE 802.1v
  • Networking Standards : IEEE 802.3az
  • Networking Standards : IEEE 802.3ad
  • Networking Standards : IEEE 802.1Q
  • Networking Standards : IEEE 802.1x
  • Networking Standards : IEEE 802.1s
  • Networking Standards : IEEE 802.1w
  • Networking Standards : IEEE 802.1D
  • Networking Standards : IEEE 802.3x
  • Networking Standards : IEEE 802.3z
  • Ethernet Technology : 10 Gigabit Ethernet
  • Ethernet Technology : Gigabit Ethernet
  • Total Number of Expansion Slots : 4.0
  • Network (RJ-45) : Yes
  • Input Voltage : 230 V AC
  • Input Voltage : 120 V AC
  • Environmentally Friendly : Yes
  • Network Technology : 10GBase-X
  • Network Technology : 10/100/1000Base-T
  • Expansion Slot Type : SFP+
  • Uplink Port : Yes
  • Power Source : Power Supply
  • Modular : Yes
  • Height : 1.7"
  • Width : 17.3"
  • Number of SFP+ Slots : 4
  • Port/Expansion Slot Details : 4 x 10 Gigabit Ethernet Expansion Slot
  • Port/Expansion Slot Details : 24 x Gigabit Ethernet PoE
  • Depth : 11"
  • Environmental Compliance : Waste Electrical and Electronic Equipment Directive (WEEE)
  • Environmental Compliance : Restriction of Hazardous Substances (RoHS)
  • Power Consumption : 450 W
  • Weight (Approximate) : 10.47 lb
  • Additional Info

    Additional Info

    SKU 05009ECS415028P-BF
    Weight 10.4700
    Is Featured N/A
    Manufacturer Edge-Core Networks Corporation
    Manufacturer Part Number ECS4150-28P
    Width 17.3"
    Length 1
    Height 1.7"
    Product ID 05009ECS415028P
    UNSPSC N/A
    Other Part Number N/A
    Special Price N/A
