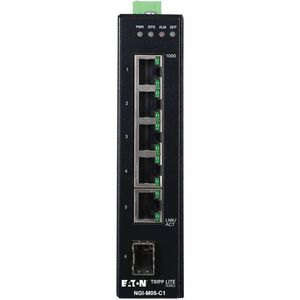

Eaton Tripp Lite Series 5-Port Managed Industrial Gigabit Ethernet Switch - 10/100/1000 Mbps, GbE SFP Slot, -40° to 75°C, DIN Mount, TAA - 5 Ports - Manageable - Gigabit Ethernet - 10/100/1000Base-T, 100Base-FX, 1000Base-X, 1000Base-SX/LX - TAA Co

5-Port Managed Gigabit Ethernet Switch Connects Your Network Devices to a LAN

This space-saving Tripp Lite switch transmits data over a Gigabit Ethernet network. Five auto-negotiating 10/100/1000 Mbps ports send data via Cat5e/6/6a cable only to the devices designated to receive it, which improves the efficiency and potential throughput of the network. The NGI-M05-C1 also features a GbE SFP slot for uplinking data to other switches via optical fiber or copper. LEDs indicate when the switch is powered on and which Ethernet ports are showing activity.

Protective Metal Housing Built to Last in Harsh Environments

The compact NGI-M05-C1 adds 10/100/1000 Mbps Gigabit Ethernet capacity to industrial automation, government, military, oil and gas, mining and outdoor applications, as well as other environments with space constraints and wide temperature ranges. The IP30 industrial-grade aluminum case withstands vibration, shock and free fall. It can also operate in extreme temperatures ranging from -40 to 75 degrees Celsius (-40 to 167 degrees Fahrenheit).

Monitors and Controls Devices via CLI and Web Configuration

The NGI-M05-C1 supports MAC address auto-learning and auto-aging for efficient routing, as well as automatic MDI/MDI-X crossover detection for plug-and-play functionality. It also supports QoS, IGMP snooping, SFP DDMI and other device management features that fulfill the needs of high-performance managed industrial networks. IEEE 802.3x flow control allows smooth transmission of large files.

Works with the Most Popular Web Browsers

The NGI-M05-C1 is browser-based and works independently from the connected computer's operating system. Because switch compatibility is based on common hardware standards, rather than system software dependencies, the NGI-M05-C1 accommodates most platforms. Preferred web browsers include Google Chrome (on both Windows and macOS) and Microsoft Edge (Windows only).

Pre-Installed DIN Rail Clip Allows for Convenient Installation

The device may be DIN mounted using the pre-installed rail clip, which mounts firmly to any standard 35 mm DIN rail. Providing seamless operation in the event of power dips or failures, the switch features redundant 6-pin 20-57VDC terminal block power inputs to help prevent unnecessary downtime. When used with two power sources, the switch also supports alarm relay contacts that you can wire to your existing alarm circuit to notify you instantly when a power disruption occurs.

TAA-Compliant for GSA Schedule Purchases

The NGI-M05-C1 is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.

Availability: Call or email

$420.00
$420.00

Fast shipping on all in-stock products

Quick turnaround on RFQs - email us today.

Buy from a certified veteran-owned small business (VOSB)

Questions? Call customer service at 503-208-8410.

Description

Details

Eaton Tripp Lite Series 5-Port Managed Industrial Gigabit Ethernet Switch - 10/100/1000 Mbps, GbE SFP Slot, -40° to 75°C, DIN Mount, TAA - 5 Ports - Manageable - Gigabit Ethernet - 10/100/1000Base-T, 100Base-FX, 1000Base-X, 1000Base-SX/LX - TAA Compliant - 2 Layer Supported - Modular - 1 SFP Slots - 10 W Power Consumption - Optical Fiber, Twisted Pair - DIN Rail Mountable - 3 Year Limited Warranty

OVERVIEW:

  • Limited Warranty : 3 Year
  • Manageable : Yes
  • PoE (RJ-45) Port : No
  • Layer Supported : 2
  • Package Contents :
    • NGI-M05-C1 Ethernet Switch
    • DIN Rail-mounting Clip (Pre-installed)
  • Media Type Supported : Twisted Pair
  • Media Type Supported : Optical Fiber
  • Total Number of Network Ports : 5
  • Product Material : Metal
  • Networking Standards : IEEE 802.3az
  • Networking Standards : IEEE 802.1p
  • Networking Standards : IEEE 802.3x
  • Networking Standards : IEEE 802.3z
  • Networking Standards : IEEE 802.3ab
  • Networking Standards : IEEE 802.3u
  • Networking Standards : IEEE 802.3
  • Ethernet Technology : Gigabit Ethernet
  • Total Number of Expansion Slots : 1
  • Network (RJ-45) : Yes
  • Environmentally Friendly : Yes
  • Network Technology : 1000Base-SX/LX
  • Network Technology : 1000Base-X
  • Network Technology : 100Base-FX
  • Network Technology : 10/100/1000Base-T
  • Expansion Slot Type : SFP (mini-GBIC)
  • Uplink Port : Yes
  • Form Factor : DIN Rail Mountable
  • Shared SFP Slot : No
  • Modular : Yes
  • Height : 5.4"
  • Number of SFP Slots : 1
  • Width : 1.2"
  • Port/Expansion Slot Details : 1 x Gigabit Ethernet Uplink
  • Port/Expansion Slot Details : 5 x Gigabit Ethernet Network
  • Depth : 4.1"
  • Environmental Compliance : Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
  • Environmental Compliance : Restriction of Hazardous Substances (RoHS)
  • Power Consumption : 10 W
  • Country of Origin : Taiwan
  • Plug/Connector Type : Terminal Block
  • Weight (Approximate) : 1.17 lb
  • TAA Compliant : Yes
  • Additional Info

    Additional Info

    SKU 01731NGIM05C1-BF
    Weight 1.1700
    Is Featured N/A
    Manufacturer Tripp Lite by Eaton
    Manufacturer Part Number NGI-M05-C1
    Width 1.2"
    Length 1
    Height 5.4"
    Product ID 01731NGIM05C1
    UNSPSC N/A
    Other Part Number N/A
