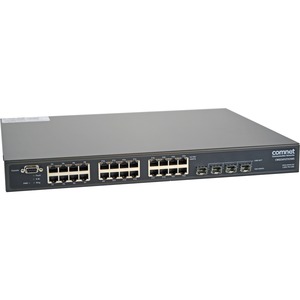

ComNet CWGE26FX2TX24MS Ethernet Switch - 22 Ports - Manageable - 2 Layer Supported - Modular - 4 SFP Slots - 36 W Power Consumption - Twisted Pair, Optical Fiber - 1U - Rack-mountable - 5 Year Limited Warranty

The ComNet CWGE26FX2TX24MS is a commercial Managed Ethernet Switch. It provides twenty-two 10/100/1000BASE-T(X) ports, plus two gigabit combo ports which are user-selectable between 10/100/1000BASE-T(X) ports or two 100/1000FX SFP* ports. A further two-100/1000FX SFP ports are also included. All SFP ports utilize ComNet SFPs for fiber and connector type and distance. The CWGE26FX2TX24MS is a redundant switch offering multiple Ethernet redundancy protocols to protect your applications from network interruptions or temporary malfunctions by redirecting transmission within the network.

FEATURES:

  • Supports 26 Gigabit Ports:
    • 2 100/1000Base-FX SFP Ports
    • 2 Gigabit Combo Ports (RJ-45/SFP)
    • 22 10/100/1000BASE-T(X) RJ-45 Ports
  • Supports Private VLAN
  • Supports IPV6 new Internet protocol version
  • IGMP v2/v3 (IGMP snooping support) for filtering multicast traffic
  • Supports multiple redundant network rings
  • Supports Jumbo frame up to 9.6K Bytes
  • HTTPS/SSH protocol to enhance network security
  • Supports SNTP client
  • Supports application-based QoS management
  • Supports Device Binding security function
  • Supports ACL and 802.1x User Authentication for security
  • Internal Power Supply
  • STP/RSTP/MSTP (IEEE 802.1s/w/D) supported
  • Windows utility, eConsole, supports centralized management, and is web-based configurable, or by Telnet and console (CLI) ports
  • Supports IP-based bandwidth management
  • SNMP V1/V2c/V3, RMON and 802.1Q VLAN for secure network management
  • Fastest Redundant Ethernet Ring: C-Ring. Recovery time <30ms, with up to 250 switches within the ring
  • Low-profile 1-RU (1.75-inch) high rack-mountable chassis mounts within any standard 19-inch equipment rack
  • Operating Temperature: 0° to +50° C
  • Multiple warning notifications for unexpected events
  • Supports LLDP (Link Layer Discovery Protocol)
APPLICATIONS:
  • HD Surveillance
  • High-Port Count Ethernet Hub Locations

Availability: Call or email

$2,047.48
$2,047.48

Fast shipping on all in-stock products

Quick turnaround on RFQs - email us today.

Buy from a certified veteran-owned small business (VOSB)

Questions? Call customer service at 503-208-8410.

Description

Details

ComNet CWGE26FX2TX24MS Ethernet Switch - 22 Ports - Manageable - 2 Layer Supported - Modular - 4 SFP Slots - 36 W Power Consumption - Twisted Pair, Optical Fiber - 1U - Rack-mountable - 5 Year Limited Warranty

OVERVIEW:

  • Limited Warranty : 5 Year
  • Manageable : Yes
  • Layer Supported : 2
  • Package Contents :
    • CWGE26FX2TX24MS Ethernet Switch
    • Rack-Mount Installation Kit
    • Console Cable
    • AC Power Cable
  • Media Type Supported : Optical Fiber
  • Media Type Supported : Twisted Pair
  • Total Number of Network Ports : 22
  • Ethernet Technology : Gigabit Ethernet
  • Total Number of Expansion Slots : 4.0
  • Compatible Rack Unit : 1U
  • Environmentally Friendly : Yes
  • Network Technology : 100/1000Base-FX
  • Network Technology : 10/100/1000Base-TX
  • Expansion Slot Type : SFP
  • Power Source : Power Supply
  • Form Factor : Rack-mountable
  • Shared SFP Slot : Yes
  • Modular : Yes
  • Height : 1.7"
  • Number of SFP Slots : 4
  • Width : 17"
  • Port/Expansion Slot Details : 2 x Gigabit Ethernet TP/SFP Combo
  • Port/Expansion Slot Details : 2 x Gigabit Ethernet Expansion Slot
  • Port/Expansion Slot Details : 22 x Gigabit Ethernet Network
  • Depth : 13.5"
  • Environmental Compliance : Waste Electrical and Electronic Equipment Directive (WEEE)
  • Environmental Compliance : Restriction of Hazardous Substances (RoHS)
  • Power Consumption : 36 W
  • Length : 13.5"
  • Weight (Approximate) : 13 lb
  • Additional Info

    Additional Info

    SKU 04938CWGE26FX2TX24MS-BF
    Weight 13.0000
    Is Featured N/A
    Manufacturer ACRE
    Manufacturer Part Number CWGE26FX2TX24MS
    Width 17"
    Length 13.5"
    Height 1.7"
    Product ID 04938CWGE26FX2TX24MS
    UNSPSC N/A
    Other Part Number N/A
    Special Price N/A
