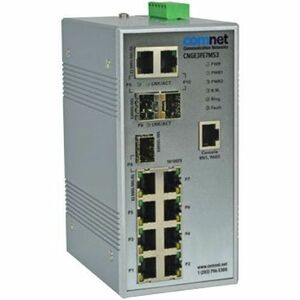

ComNet CNGE3FE7MS3 Ethernet Switch - 7 Ports - Manageable - Fast Ethernet, Gigabit Ethernet - 10/100Base-TX, 10/100/1000Base-T - 2 Layer Supported - 3 SFP Slots - 12 W Power Consumption - Twisted Pair, Optical Fiber - DIN Rail Mountable, Wall Mountable -

The ComNet CNGE3FE7MS3 Managed Ethernet Switch provides robust transmission of seven (7) 10/100BASE-T(X) and three (3) 10/100/1000T(X) or 100/1000FX combo ports, of gigabit Ethernet data. It is available for use with either conventional CAT-5e copper or optical transmission media. The 7 electrical ports support the 10/100Mbps Ethernet IEEE 802.3 protocol, and auto-negotiating and auto-MDI/MDIX features are provided for simplicity and ease of installation. Three ports are 10/100/1000 configurable for copper or fiber media for use with multimode or single mode optical fiber, selected by optional SFP* modules. These network managed layer 2 switches are optically (100/1000BASE-FX) and electrically compatible with any IEEE 802.3 compliant Ethernet devices. The CNGE3FE7MS3 incorporates LED indicators for monitoring the operating status of the managed switch and network. These units are DIN-rail or wall mountable.

Availability: Call or email

$2,001.48
$2,001.48

Fast shipping on all in-stock products

Quick turnaround on RFQs - email us today.

Buy from a certified veteran-owned small business (VOSB)

Questions? Call customer service at 503-208-8410.

Description

Details

ComNet CNGE3FE7MS3 Ethernet Switch - 7 Ports - Manageable - Fast Ethernet, Gigabit Ethernet - 10/100Base-TX, 10/100/1000Base-T - 2 Layer Supported - 3 SFP Slots - 12 W Power Consumption - Twisted Pair, Optical Fiber - DIN Rail Mountable, Wall Mountable - Lifetime Limited Warranty - TAA Compliant

OVERVIEW:

  • Limited Warranty : Lifetime
  • Manageable : Yes
  • Product Color : Silver
  • Layer Supported : 2
  • Package Contents :
    • CNGE3FE7MS3 Ethernet Switch
    • 90-264VAC Power Supply
  • Media Type Supported : Optical Fiber
  • Media Type Supported : Twisted Pair
  • Total Number of Network Ports : 7
  • Networking Standards : IEEE 802.1ab
  • Networking Standards : IEEE 802.1x
  • Networking Standards : IEEE 802.1s
  • Networking Standards : IEEE 802.1w
  • Networking Standards : IEEE 802.1Q
  • Networking Standards : IEEE 802.1p
  • Networking Standards : IEEE 802.1D
  • Networking Standards : IEEE 802.3ad
  • Networking Standards : IEEE 802.3x
  • Networking Standards : IEEE 802.3ab
  • Networking Standards : IEEE 802.3z
  • Networking Standards : IEEE 802.3u
  • Networking Standards : IEEE 802.3
  • Ethernet Technology : Gigabit Ethernet
  • Ethernet Technology : Fast Ethernet
  • Total Number of Expansion Slots : 3.0
  • Network (RJ-45) : Yes
  • Input Voltage : 48 V DC
  • Environmentally Friendly : Yes
  • Network Technology : 10/100/1000Base-T
  • Network Technology : 10/100Base-TX
  • Expansion Slot Type : SFP
  • Power Source : Power Supply
  • Form Factor : Wall Mountable
  • Form Factor : DIN Rail Mountable
  • Shared SFP Slot : Yes
  • Redundant Power Supply Supported : Yes
  • Number of SFP Slots : 3
  • Environmental Compliance : Waste Electrical and Electronic Equipment Directive (WEEE)
  • Environmental Compliance : Restriction of Hazardous Substances (RoHS)
  • Power Consumption : 12 W
  • TAA Compliant : Yes
