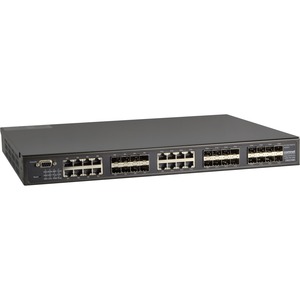

ComNet CNGE24MS2 Ethernet Switch - Manageable - Gigabit Ethernet - 100/1000Base-FX, 1000Base-X - 2 Layer Supported - Modular - 24 SFP Slots - Optical Fiber, Twisted Pair - Desktop, Rack-mountable - Lifetime Limited Warranty

The ComNet CNGE24MS2 has eight 100/1000Base-FX SFP ports and sixteen Gigabit combo ports that allow for TX or FX transmission. All SFP ports utilize ComNet SFP modules for fiber and connector type and distance. The IEEE802.3-compliant unit offers multiple Ethernet redundancy protocols (ComRing, C-Ring, and MSTP/ RSTP/STP) which protect your applications from network interruptions or temporary malfunctions by redirecting transmission within the network. The switch provides advanced IP-based management that can limit the maximum bandwidth for each connected IP device, allowing the user to adjust usage. Application-based QoS can set a higher priority for data streaming. The Device-Binding function can prevent unauthorized network access, increasing security. The unit also provides advanced DOS/DDOS auto prevention. If IP flow becomes too large, too quickly, the switch will lock the source IP address for a set period preventing unauthorized access.

Features

  • Internal Power Supply
  • 19 inch rack mountable design
  • MSTP/RSTP/STP (IEEE 802.1s/w/D)
  • Fast Redundant Ethernet Ring: C-Ring (recovery time <20ms over 250 units of connection)
  • Com-Ring open architecture supports other switch manufacturers' ring technologies, for seamless network integration
  • TOS/Diffserv supported
  • Quality of Service (802.1p) for real-time traffic
  • VLAN (802.1Q) with VLAN tagging and GVRP supported
  • IGMP v2/v3 (IGMP snooping support) for filtering multicast traffic
  • Supports IP-based bandwidth management
  • Supports application-based QoS management
  • Supports DOS/DDOS auto prevention
  • Port configuration, status, statistics, monitoring, security
  • Features 100/1000Base-FX SFP Ports
  • Supports SMTP client
  • DDM (Digital Diagnostic Monitoring) remotely ascertains the status of the operating voltage, current, and operating temperature of the SFP modules
  • Supports SNMP v1/v2c/v3 & RMON & 802.1Q VLAN Network Management
  • Supports ACL, 802.1x User Authentication for security
  • Supports 9.6K Bytes Jumbo Frame
  • Multiple notifications warn of unexpected events
  • Web-based, Telnet, Console (CLI), and Windows-based utility (eConsole) configuration
  • Supports Link Layer Discovery Protocol (LLDP)
  • Supports IPV6 new internet protocol version
  • Provided HTTPS/SSH protocol enhances network security
  • Supports Device Binding security function
  • Features 100/1000Base-X SFP Combo Ports
  • DHCP Client/Server

Availability: Call or email

$4,815.95
$4,815.95

Fast shipping on all in-stock products

Quick turnaround on RFQs - email us today.

Buy from a certified veteran-owned small business (VOSB)

Questions? Call customer service at 503-208-8410.

Description

Details

ComNet CNGE24MS2 Ethernet Switch - Manageable - Gigabit Ethernet - 100/1000Base-FX, 1000Base-X - 2 Layer Supported - Modular - 24 SFP Slots - Optical Fiber, Twisted Pair - Desktop, Rack-mountable - Lifetime Limited Warranty

OVERVIEW:

  • Limited Warranty : Lifetime
  • Manageable : Yes
  • Layer Supported : 2
  • Package Contents :
    • CNGE24MS2 Ethernet Switch
    • Power Supply
  • Media Type Supported : Twisted Pair
  • Media Type Supported : Optical Fiber
  • Ethernet Technology : Gigabit Ethernet
  • Total Number of Expansion Slots : 24.0
  • Environmentally Friendly : Yes
  • Network Technology : 1000Base-X
  • Network Technology : 100/1000Base-FX
  • Expansion Slot Type : SFP (mini-GBIC)
  • Power Source : Power Supply
  • Form Factor : Rack-mountable
  • Form Factor : Desktop
  • Shared SFP Slot : Yes
  • Modular : Yes
  • Height : 1.7"
  • Number of SFP Slots : 24
  • Width : 17"
  • Port/Expansion Slot Details : 16 x Gigabit Ethernet Combo (Ethernet /SFP)
  • Port/Expansion Slot Details : 8 x Gigabit Ethernet Expansion Slot
  • Depth : 13.5"
  • Environmental Compliance : Waste Electrical and Electronic Equipment Directive (WEEE)
  • Environmental Compliance : Restriction of Hazardous Substances (RoHS)
  • Weight (Approximate) : 9.50 lb
  • Additional Info

    Additional Info

    SKU 04938CNGE24MS2-BF
    Weight 9.5000
    Is Featured N/A
    Manufacturer ACRE
    Manufacturer Part Number CNGE24MS2
    Width 17"
    Length 1
    Height 1.7"
    Product ID 04938CNGE24MS2
    UNSPSC N/A
    Other Part Number N/A
    Special Price N/A
