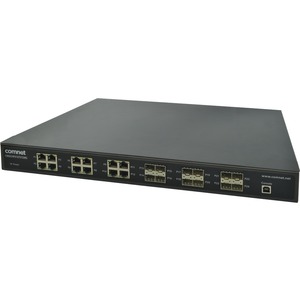

ComNet CNGE24FX12TX12MS[POE] Ethernet Switch - 24 Ports - Manageable - 3 Layer Supported - Modular - 12 SFP Slots - Twisted Pair, Optical Fiber - Rack-mountable, Desktop - Lifetime Limited Warranty

The ComNet CNGE24FX12TX12MS[POE] has twelve 100/1000Base-FX SFP ports and twelve 10/100/1000Base-TX ports. All SFP ports utilize ComNet SFP modules for fiber and connector type and distance. The IEEE802.3-compliant unit offers multiple Ethernet redundancy protocols (MSTP/RSTP/STP/ERPS (G.8032)) which protect your applications from network interruptions or temporary malfunctions by redirecting transmission within the network. The switch provides advanced IP-based management that can limit the maximum bandwidth for each connected IP device, allowing the user to adjust usage. The CNGE24FX12TX12MSPOE models provide twelve electrical ports supporting up to thirty watts of power. All PoE ports are IEEE 802.3at compliant. Each model is provided with redundant power inputs which can be either one mains voltage and one or two low voltage DC inputs or two low voltage DC inputs.

Features

  • Supports IPV6 new internet protocol version
  • Provided HTTPS/SSH protocol enhances network security
  • Supports Device Binding security function
  • IGMP v2/v3 (IGMP snooping support) for filtering multicast traffic
  • Supports SNMP v1/v2c/v3 & RMON & 802.1Q VLAN Network Management
  • Supports ACL, 802.1x User Authentication for security
  • Multiple notifications warn of unexpected events
  • Fast Redundancy/Recovery - MSTP/RSTP/STP (IEEE802.1s/w/D) and ERPS (G.8032)
  • Supports IP-based bandwidth management
  • Supports application-based QoS management
  • Supports LLDP Protocol
  • 19 inch rack mountable design
  • Electric Port Supports Auto-negotiation for Full Duplex or Half Duplex Data Throughput
  • Web-based, Telnet and Console (CLI) configuration, and Windows-based (eVision) monitoring
  • Supports Jumbo Frame up to 9.6KB for streaming video applications
  • Multiple power supply options available including internal mains AC and/or dual external DC inputs

Availability: Call or email

$2,768.86
$2,768.86

Fast shipping on all in-stock products

Quick turnaround on RFQs - email us today.

Buy from a certified veteran-owned small business (VOSB)

Questions? Call customer service at 503-208-8410.

Description

Details

ComNet CNGE24FX12TX12MS[POE] Ethernet Switch - 24 Ports - Manageable - 3 Layer Supported - Modular - 12 SFP Slots - Twisted Pair, Optical Fiber - Rack-mountable, Desktop - Lifetime Limited Warranty

OVERVIEW:

  • Limited Warranty : Lifetime
  • Manageable : Yes
  • Layer Supported : 3
  • Media Type Supported : Optical Fiber
  • Media Type Supported : Twisted Pair
  • Total Number of Network Ports : 24
  • Ethernet Technology : Gigabit Ethernet
  • Total Number of Expansion Slots : 12.0
  • Environmentally Friendly : Yes
  • Network Technology : 10/100/1000Base-TX
  • Network Technology : 1000Base-FX
  • Expansion Slot Type : SFP (mini-GBIC)
  • Power Source : Power Supply
  • Form Factor : Desktop
  • Form Factor : Rack-mountable
  • Shared SFP Slot : No
  • Modular : Yes
  • Redundant Power Supply Supported : Yes
  • Height : 17"
  • Number of SFP Slots : 12
  • Width : 10"
  • Port/Expansion Slot Details : 12 x Gigabit Ethernet Network
  • Port/Expansion Slot Details : 12 x Gigabit Ethernet Expansion Slot
  • Depth : 1.5"
  • Environmental Compliance : Waste Electrical and Electronic Equipment Directive (WEEE)
  • Environmental Compliance : Restriction of Hazardous Substances (RoHS)
  • Country of Origin : United States
  • Weight (Approximate) : 7.90 lb
  • Additional Info

    Additional Info

    SKU 04938CNGE24FX12TX12MS/12-BF
    Weight 7.9000
    Is Featured N/A
    Manufacturer ACRE
    Manufacturer Part Number CNGE24FX12TX12MS/12
    Width 10"
    Length 1
    Height 17"
    Product ID 04938CNGE24FX12TX12MS/12
    UNSPSC N/A
    Other Part Number N/A
    Special Price N/A
