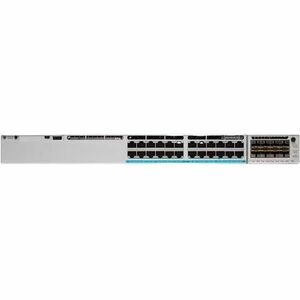

Cisco Catalyst C9300-24UX-M Layer 3 Switch - 24 Ports - 3 Layer Supported - 809.90 W Power Consumption - PoE Ports - 1U - Rack-mountable - Lifetime Limited Warranty

The Catalyst 9300-M addresses the most demanding enterprise applications by combining the simplicity of the Meraki dashboard with powerful switching hardware. To satisfy high-bandwidth applications and the deployment of high-speed 802.11ax/wifi-6 access points, the Catalyst 9300-M provides multigigabit ports, 480G stacking, and modular 10/40G uplinks. The Catalyst 9300-M delivers resiliency with fast stack convergence and StackPower. The Catalyst 9300-M provides Adaptive Policy using an over-the-wire tag which segments traffic into security groups to deliver scalable security. The Catalyst 9300-M is integrated under the Meraki dashboard to provide a simply powerful solution to the most demanding wired access applications.

Adaptive Policy provides simple & scalable security policies to segment traffic using Security Groups. Security Groups are created in the dashboard using natural language such as "IOT device" & "Guest." The security policy intent (e.g., Permit or Deny) is then simply provisioned between Security Groups which results in the segmentation of each group's traffic. By making security policy management intuitive and scalable relative to legacy IP-address based Access Control Lists, Adaptive Policy empowers operators to confidently secure their network traffic independent of future network changes.

By pooling & distributing power across C9300-Ms using a series of StackPower cables, StackPower provides simple and resilient power distribution across the stack.

A Catalyst 9300 switch can also be migrated to a Meraki-managed persona, where it would function as its Catalyst Meraki 9300 equivalent.

Availability: Call or email

$14,952.39
$14,952.39
Cisco Systems, Inc

Fast shipping on all in-stock products

Quick turnaround on RFQs - email us today.

Buy from a certified veteran-owned small business (VOSB)

Questions? Call customer service at 503-208-8410.

Description

Details

Cisco Catalyst C9300-24UX-M Layer 3 Switch - 24 Ports - 3 Layer Supported - 809.90 W Power Consumption - PoE Ports - 1U - Rack-mountable - Lifetime Limited Warranty

OVERVIEW:

  • Limited Warranty : Lifetime
  • PoE (RJ-45) Port : Yes
  • Layer Supported : 3
  • Package Contents :
    • Catalyst C9300-24UX-M Layer 3 Switch
    • 1 x Power Supply Unit
    • Rack Mount Brackets
    • Screw Kit
    • 3 x Pre-Installed Fans
  • Total Number of Network Ports : 24
  • Features : Fanless
  • Networking Standards : IEEE 802.1x
  • Network (RJ-45) : Yes
  • Compatible Rack Unit : 1U
  • Environmentally Friendly : Yes
  • Uplink Port : Yes
  • Power Source : UPoE
  • Power Source : PoE+
  • Form Factor : Rack-mountable
  • Shared SFP Slot : Yes
  • Height : 1.7"
  • Stack Port : Yes
  • Width : 17.5"
  • Port/Expansion Slot Details : 24 x 100M/1G/2.5G/5G/10G RJ45
  • Depth : 20.2"
  • Environmental Compliance : Restriction of Hazardous Substances (RoHS)
  • Power Consumption : 809.90 W
  • Weight (Approximate) : 18.18 lb
  • Additional Info

    Additional Info

    SKU 01468C930024UXM-BF
    Weight 18.1800
    Is Featured N/A
    Manufacturer Cisco Systems, Inc
    Manufacturer Part Number C9300-24UX-M
    Width 17.5"
    Length 1
    Height 1.7"
    Product ID 01468C930024UXM
    UNSPSC N/A
    Other Part Number N/A
    Special Price N/A
