Network traffic has grown exponentially over the last several years, and this trend is expected to continue into the foreseeable future. By 2016, there will be 19 billion networked devices, up from 10 billion in 2011. Business IP traffic is expected to reach 13.1 exabytes per month in 20161 . Networks must be capable of scaling well beyond the needs of today to deal with the traffic of tomorrow while at the same time providing investment protection.

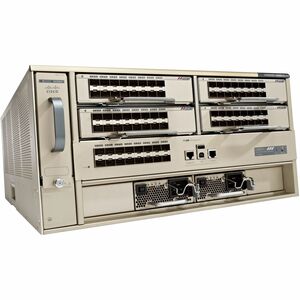

The Cisco® Catalyst® 6880-X Series Switch (Figure 1) is an extensible fixed aggregation switch that delivers a best-in-class Cisco Catalyst 6500 feature set in a small form factor. This premier aggregation platform offers best-in-class scalability and flexibility with the premier Cisco Catalyst 6500 feature sets. This platform is ideal for those who want to introduce premium 10G services in small or midsize campus backbones. This unique platform offers 10G port density, full MPLS/VPLS functionality with large table sizes (up to 2M FIB entries), and more than 15 years of best-in-class features. With a full suite of L2/L3, virtualization, security, multicast, IPV6, application visibility, smart operations, and rich media services Cisco Catalyst 6800-X delivers unprecedented capabilities on day one. This platform also runs on the same architecture as the Cisco Catalyst 6500 Supervisor Engine 2T and therefore offers stability with a proven operating system software.
The Cisco Catalyst 6800-X Series chassis offers integrated resiliency by providing N+1 redundant fans, 1+1 power supply redundancy, and support for Virtual Switching System (VSS), thereby limiting network downtime, and ensures workforce productivity, customer satisfaction, and profitability.
Cisco Catalyst 6880-X Product Details
The Cisco Catalyst 6880-X provides flexibility to build desired port density through two versions (C6880-X-LE with standard FIB/ACL/Netflow tables and C6880-X with larger FIB/ACL/Netflow tables) of base chassis along with optional port cards (Figure 2). The base chassis comes with 16 10G/1G ports, and each port card supports 16 additional 10G/1G ports. Each system can be built up to 80 ports in 16-port increments. The port interface on the base module and the port cards supports both 10 Gigabit Ethernet and 1 Gigabit Ethernet speeds allowing customers to use their investment in 1 Gigabit Ethernet SFP and upgrade to 10 Gigabit Ethernet SFP+ when business demands change, without having to do a comprehensive upgrade of the existing deployment. The port cards are hot swappable.
