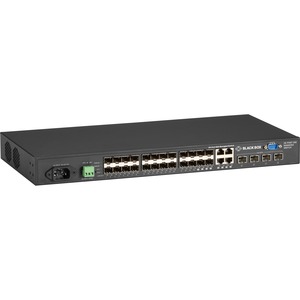

Black Box Gigabit Managed Ethernet SFP Fiber Switch - 28-Port - 4 Ports - Manageable - Gigabit Ethernet, 10 Gigabit Ethernet - 10GBase-X, 1000Base-X, 10/100/1000Base-T - 2 Layer Supported - Modular - 20 SFP Slots - 38.64 W Power Consumption - Optical Fibe

This advanced, fully-manageable Layer 2 switch gives you networking versatility. It features 28 high-speed fiber ports: (4) 1-Gbps/10-Gbps SFP fiber ports, (20) 100-/1000-Mbps SFP fiber ports, and (4) dual-media 100-/1000-Mbps SFP/twisted-pair ports.

This all fiber switch gives you the flexibility to select a variety of ranges with SFP transceivers.

Advanced functions in an economical package.

This switch offers advanced switching and security features normally found in more expensive switches. You'll get extensive management capabilities, greater bandwidth control, and QoS for switching in VoIP and other real-time, high-performance applications.

Pack up the trunk.

To provide more bandwidth to a specific application or segment, combine ports using the switch's 802.3ad Link Aggregate Control Protocol (LACP) capabilities. With this bandwidth aggregation feature, the combined ports create a multilink trunk for load sharing. The switch supports 14 groups with 8 ports per group.

High-level service.

The switch offers extensive Quality of Service support including prioritization, classification, scheduling, rate limitations, and more. The switch also supports eight hardware queues.

Safe and secure.

Your network is safe with this switch. It also offers MAC address filtering and VLAN capabilities so you can segregate networks.

Multiple management options.

Monitor, configure, and control the switch via its RS-232 serial port, or through Ethernet using CLI or Web-based management.

Green

The SFP Gigabit/10-Gigabit Managed Fiber Switch Eco features IEEE 802.3az energy-efficient Ethernet, which scales down power consumption during periods of low data activity. This feature adds up to energy savings of up to 50%.

SFPs

For the SFP slots, order SFP modules, such as the 850-nm Multimode Gigabit SFP Module (LFP411) and 1310-nm Single-mode Gigabit SFP Module (LFP412). For information on SFP module compatibility, contact our FREE Tech Support)

Availability: Call or email

$1,185.08
$1,185.08
Black Box Corporation

Fast shipping on all in-stock products

Quick turnaround on RFQs - email us today.

Buy from a certified veteran-owned small business (VOSB)

Questions? Call customer service at 503-208-8410.

Description

Details

Black Box Gigabit Managed Ethernet SFP Fiber Switch - 28-Port - 4 Ports - Manageable - Gigabit Ethernet, 10 Gigabit Ethernet - 10GBase-X, 1000Base-X, 10/100/1000Base-T - 2 Layer Supported - Modular - 20 SFP Slots - 38.64 W Power Consumption - Optical Fiber, Twisted Pair - Rack-mountable - 1 Year Limited Warranty - TAA Compliant

OVERVIEW:

  • Limited Warranty : 1 Year
  • Manageable : Yes
  • Layer Supported : 2
  • Package Contents :
    • Gigabit Managed Ethernet SFP Fiber Switch - 28-Port
    • AC Power Cord
    • 1 x Terminal Block
    • 4 x Adhesive Rubber Feet
    • 1 x Quick Installation Guid
  • Media Type Supported : Twisted Pair
  • Media Type Supported : Optical Fiber
  • Total Number of Network Ports : 4
  • Networking Standards : IEEE 802.3ag
  • Networking Standards : IEEE 802.3az
  • Networking Standards : IEEE 802.3ah
  • Networking Standards : IEEE 802.3ae
  • Networking Standards : IEEE 802.3ab
  • Networking Standards : IEEE 802.3z
  • Networking Standards : IEEE 802.3x
  • Networking Standards : IEEE 802.3u
  • Networking Standards : IEEE 802.1ab
  • Networking Standards : IEEE 802.1p
  • Networking Standards : IEEE 802.1x
  • Networking Standards : IEEE 802.1Q
  • Networking Standards : IEEE 802.1s
  • Networking Standards : IEEE 802.1w
  • Networking Standards : IEEE 802.1D
  • Networking Standards : IEEE 802.3ad
  • Ethernet Technology : 10 Gigabit Ethernet
  • Ethernet Technology : Gigabit Ethernet
  • Total Number of Expansion Slots : 24.0
  • Network (RJ-45) : Yes
  • Environmentally Friendly : Yes
  • Network Technology : 10/100/1000Base-T
  • Network Technology : 1000Base-X
  • Network Technology : 10GBase-X
  • Expansion Slot Type : SFP+
  • Expansion Slot Type : SFP
  • Uplink Port : Yes
  • Power Source : Power Supply
  • Form Factor : Rack-mountable
  • Shared SFP Slot : Yes
  • Modular : Yes
  • Height : 1.7"
  • Number of SFP Slots : 20
  • Width : 17.4"
  • Number of SFP+ Slots : 4
  • Port/Expansion Slot Details : 4 x Gigabit Ethernet TP/SFP Combo
  • Depth : 8.3"
  • Environmental Compliance : Waste Electrical and Electronic Equipment Directive (WEEE)
  • Environmental Compliance : Restriction of Hazardous Substances (RoHS)
  • Power Consumption : 38.64 W
  • Country of Origin : Taiwan
  • Weight (Approximate) : 6.80 lb
  • TAA Compliant : Yes
  • Additional Info

    Additional Info

    SKU 01312LGB5128AR2-BF
    Weight 6.8000
    Is Featured N/A
    Manufacturer Black Box Corporation
    Manufacturer Part Number LGB5128A-R2
    Width 17.4"
    Length 1
    Height 1.7"
    Product ID 01312LGB5128AR2
    UNSPSC N/A
    Other Part Number N/A
    Special Price N/A
