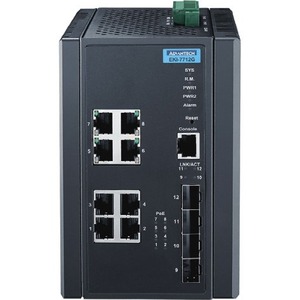

B+B SmartWorx EKI-7712G-4FMPI Ethernet Switch - 8 Ports - Manageable - Gigabit Ethernet - 10/100/1000Base-TX, 1000Base-X - 2 Layer Supported - Modular - 4 SFP Slots - 12 W Power Consumption - 370 W PoE Budget - Twisted Pair, Optical Fiber - PoE Ports - Wa

The EKI-7712G-4FMPI is a next generation PoE switch which supports IEEE 802.3bt Class 8 90W PoE for high-powered application. Combined with 6 x IEEE 802.3af/at PoE Gigabit ports, 2 x IEEE 802.3bt PoE Gigabit ports, and 4 x SFP ports, EKI-7712G-4FMPI provides multiple usages for different scenarios. The EKI-7712G-4FMPI is embedded with Advantech's IXM function, which can benefit users with fast deployment and can save considerably engineering time and costs. It also supports NMS to help IT managers with networking maintenance and failure prevention. It is also equipped with X-Ring Pro, which can achieve ultra-high-speed recovery times of <20 ms to ensure network stability.

Availability: Call or email

$2,475.00
$2,475.00

Fast shipping on all in-stock products

Quick turnaround on RFQs - email us today.

Buy from a certified veteran-owned small business (VOSB)

Questions? Call customer service at 503-208-8410.

Description

Details

B+B SmartWorx EKI-7712G-4FMPI Ethernet Switch - 8 Ports - Manageable - Gigabit Ethernet - 10/100/1000Base-TX, 1000Base-X - 2 Layer Supported - Modular - 4 SFP Slots - 12 W Power Consumption - 370 W PoE Budget - Twisted Pair, Optical Fiber - PoE Ports - Wall Mountable, DIN Rail Mountable - 5 Year Limited Warranty

OVERVIEW:

  • Limited Warranty : 5 Year
  • Manageable : Yes
  • PoE (RJ-45) Port : Yes
  • Layer Supported : 2
  • Media Type Supported : Optical Fiber
  • Media Type Supported : Twisted Pair
  • Total Number of Network Ports : 8
  • PoE Budget : 370 W
  • Product Material : Metal
  • Networking Standards : IEEE 802.3bt
  • Networking Standards : IEEE 802.3af
  • Networking Standards : IEEE 802.3at
  • Networking Standards : IEEE 802.3x
  • Networking Standards : IEEE 802.3z
  • Networking Standards : IEEE 802.3ab
  • Networking Standards : IEEE 802.3u
  • Networking Standards : IEEE 802.3
  • Ethernet Technology : Gigabit Ethernet
  • Total Number of Expansion Slots : 4.0
  • Network (RJ-45) : Yes
  • Input Voltage : 55 V DC
  • Environmentally Friendly : Yes
  • Network Technology : 1000Base-X
  • Network Technology : 10/100/1000Base-TX
  • Expansion Slot Type : SFP (mini-GBIC)
  • Power Source : DC
  • Form Factor : DIN Rail Mountable
  • Form Factor : Wall Mountable
  • Shared SFP Slot : No
  • Modular : Yes
  • Height : 6"
  • Number of SFP Slots : 4
  • Width : 3.8"
  • Port/Expansion Slot Details : 4 x Gigabit Ethernet Expansion Slot
  • Port/Expansion Slot Details : 8 x Gigabit Ethernet Network
  • Depth : 4.1"
  • Environmental Compliance : Restriction of Hazardous Substances (RoHS)
  • Power Consumption : 12 W
  • Weight (Approximate) : 2.43 lb
  • Additional Info

    Additional Info

    SKU 01074EKI7712G4FMPIAU-BF
    Weight 2.4300
    Is Featured N/A
    Manufacturer Advantech Co., Ltd
    Manufacturer Part Number EKI-7712G-4FMPI-AU
    Width 3.8"
    Length 1
    Height 6"
    Product ID 01074EKI7712G4FMPIAU
    UNSPSC N/A
    Other Part Number N/A
    Special Price N/A
