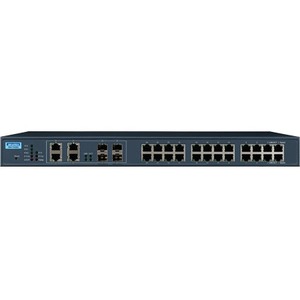

B+B SmartWorx 24G+4G Combo Port L2 Managed PoE Switch - 24 Ports - Manageable - Gigabit Ethernet - 10/100/1000Base-TX, 1000Base-X - 2 Layer Supported - Modular - 4 SFP Slots - 20 W Power Consumption - 30 W PoE Budget - Twisted Pair, Optical Fiber - PoE Po

The EKI-7428G is an industrial-class layer 2 full managed switch including 24 Gigabit ports and 4 Gigabit combo ports. It is designed for rack-mount installation, and can be deployed in demanding industrial environments. It is suitable for edge to core industrial networks. It integrates Layer 2 switching software, which is optimized for scale and performance, delivering wire speed across all ports up to 56 Gbps for layer 2 traffic forwarding. In addition, the PoE design provides up to 30 watts per port to fulfill high power consumption device, moreover, it supports high reliability with -40 ~ 70°C operating temperatures, and dual 48 VDC input power design ensure vital network capabilities with minimum downtime. It is also embedded with Advantech IXM, which benefits users by giving them fast deployment and can dramatically save engineer's time and costs.

Availability: Call or email

$1,700.00
$1,700.00

Fast shipping on all in-stock products

Quick turnaround on RFQs - email us today.

Buy from a certified veteran-owned small business (VOSB)

Questions? Call customer service at 503-208-8410.

Description

Details

B+B SmartWorx 24G+4G Combo Port L2 Managed PoE Switch - 24 Ports - Manageable - Gigabit Ethernet - 10/100/1000Base-TX, 1000Base-X - 2 Layer Supported - Modular - 4 SFP Slots - 20 W Power Consumption - 30 W PoE Budget - Twisted Pair, Optical Fiber - PoE Ports - 1U - Rack-mountable - 5 Year Limited Warranty

OVERVIEW:

  • Limited Warranty : 5 Year
  • Manageable : Yes
  • PoE (RJ-45) Port : Yes
  • Layer Supported : 2
  • Media Type Supported : Optical Fiber
  • Media Type Supported : Twisted Pair
  • Total Number of Network Ports : 24
  • PoE Budget : 30 W
  • Product Material : Metal
  • Networking Standards : IEEE 802.3at
  • Networking Standards : IEEE 802.3ab
  • Networking Standards : IEEE 802.3ad
  • Networking Standards : IEEE 802.1x
  • Networking Standards : IEEE 802.1Q
  • Networking Standards : IEEE 802.1p
  • Networking Standards : IEEE 802.1w
  • Networking Standards : IEEE 802.1D
  • Networking Standards : IEEE 802.3z
  • Networking Standards : IEEE 802.3x
  • Networking Standards : IEEE 802.3u
  • Networking Standards : IEEE 802.3
  • Ethernet Technology : Gigabit Ethernet
  • Total Number of Expansion Slots : 4.0
  • Network (RJ-45) : Yes
  • Input Voltage : 48 V DC
  • Compatible Rack Unit : 1U
  • Environmentally Friendly : Yes
  • Network Technology : 1000Base-X
  • Network Technology : 10/100/1000Base-TX
  • Expansion Slot Type : SFP (mini-GBIC)
  • Power Source : DC
  • Form Factor : Rack-mountable
  • Shared SFP Slot : Yes
  • Modular : Yes
  • Height : 1.7"
  • Number of SFP Slots : 4
  • Width : 17.2"
  • Port/Expansion Slot Details : 4 x Gigabit Ethernet TP/SFP Combo
  • Port/Expansion Slot Details : 24 x Gigabit Ethernet PoE
  • Depth : 10.2"
  • Environmental Compliance : Restriction of Hazardous Substances (RoHS)
  • Power Consumption : 20 W
  • Weight (Approximate) : 2.43 lb
  • Additional Info

    Additional Info

    SKU 01074EKI7428G4CPIAU-BF
    Weight 2.4300
    Is Featured N/A
    Manufacturer Advantech Co., Ltd
    Manufacturer Part Number EKI-7428G-4CPI-AU
    Width 17.2"
    Length 1
    Height 1.7"
    Product ID 01074EKI7428G4CPIAU
    UNSPSC N/A
    Other Part Number N/A
    Special Price N/A
