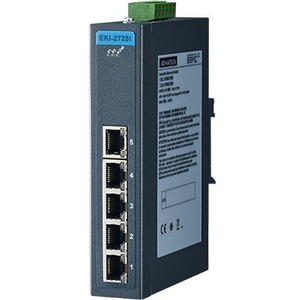

Advantech Ethernet Device, 5-port Ind. Unmanaged GbE Switch W/T - 5 Ports - Gigabit Ethernet - 10/100/1000Base-T - 2 Layer Supported - Twisted Pair - DIN Rail Mountable, Wall Mountable

The EKI-2725 supports Gigabit Ethernet. The power is a +12 ~ 48 V DC redundant input design, and is secured with a double protection mechanism: Power Polarity Reverse Protect and an Overload Current Fuse. The former tolerates reverse power wiring while the later secures the system from overload currents. Each port of EKI-2725 has 2 LED's to show the link status transmission speed and collision status. It also provides a relay output for an event alarm. In the event of a power failure, the built-in LED will activate the alarm to notify administrators. Engineers can simply verify the hardware status by checking the LED, and have troubleshooting easy and quick. EKI-2725 comes with compact metal housing that rates IP30 to help against from dusty industrial environments.

Availability: Call or email

$230.33
$230.33

Fast shipping on all in-stock products

Quick turnaround on RFQs - email us today.

Buy from a certified veteran-owned small business (VOSB)

Questions? Call customer service at 503-208-8410.

Description

Details

Advantech Ethernet Device, 5-port Ind. Unmanaged GbE Switch W/T - 5 Ports - Gigabit Ethernet - 10/100/1000Base-T - 2 Layer Supported - Twisted Pair - DIN Rail Mountable, Wall Mountable

OVERVIEW:

  • Manageable : No
  • Layer Supported : 2
  • Media Type Supported : Twisted Pair
  • Total Number of Network Ports : 5
  • Ethernet Technology : Gigabit Ethernet
  • Network Technology : 10/100/1000Base-T
  • Uplink Port : No
  • Form Factor : Wall Mountable
  • Form Factor : DIN Rail Mountable
  • Modular : No
  • Height : 5.5"
  • Stack Port : No
  • Width : 1.2"
  • Port/Expansion Slot Details : 5 x Gigabit Ethernet Network
  • Depth : 3.7"
  • Additional Info

    Additional Info

    SKU 01074EKI2725ICE-BF
    Weight 1.0000
    Is Featured N/A
    Manufacturer Advantech Co., Ltd
    Manufacturer Part Number EKI-2725I-CE
    Width 1.2"
    Length 1
    Height 5.5"
    Product ID 01074EKI2725ICE
    UNSPSC N/A
    Other Part Number N/A
