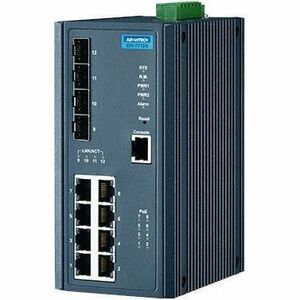

Advantech EKI-7712G-4FPI Ethernet Switch - 8 Ports - Manageable - Gigabit Ethernet - 10/100/1000Base-TX, 1000Base-X - 2 Layer Supported - 4 SFP Slots - 12.10 W Power Consumption - 240 W PoE Budget - Twisted Pair, Optical Fiber - PoE Ports - Wall Mountable

EKI-7712G-4FP/4FPI supports 8 Gigabit IEEE 802.3 af/at PoE ports and 4 SFP (mini-GBIC) ports. They can provide up to 30 watts per port to fulfill high power consumption PD (Power Device). Besides, it is embedded with Advantech IXM function, this can benefit users for fast deployment and can dramatically save engineers time and costs. The EKI-7712G series also support NMS to help IT managers with networking maintenance and failure prevention. Finally, the EKI-7712G series is equipped with X-Ring Pro which can achieve ultra high speed recovery time of less than 20 ms to ensure network stability. The switch also features a wide -40° to 75°C operating temperature (EKI-7712G-4FPI) and NEMA TS2 rating, making the switch an ideal solution for use in traffic applications and have successfully passed the EN50121-4 European railway standard requirements of emission and immunity for railway platforms and trackside deployment.

Availability: Call or email

$1,254.93
$1,254.93

Fast shipping on all in-stock products

Quick turnaround on RFQs - email us today.

Buy from a certified veteran-owned small business (VOSB)

Questions? Call customer service at 503-208-8410.

Description

Details

Advantech EKI-7712G-4FPI Ethernet Switch - 8 Ports - Manageable - Gigabit Ethernet - 10/100/1000Base-TX, 1000Base-X - 2 Layer Supported - 4 SFP Slots - 12.10 W Power Consumption - 240 W PoE Budget - Twisted Pair, Optical Fiber - PoE Ports - Wall Mountable, DIN Rail Mountable - 5 Year Limited Warranty

OVERVIEW:

  • Limited Warranty : 5 Year
  • Manageable : Yes
  • PoE (RJ-45) Port : Yes
  • Layer Supported : 2
  • Media Type Supported : Optical Fiber
  • Media Type Supported : Twisted Pair
  • Total Number of Network Ports : 8
  • Features : IP30
  • PoE Budget : 240 W
  • Product Material : Metal
  • Networking Standards : IEEE 802.1ab
  • Networking Standards : IEEE 802.1ad
  • Networking Standards : IEEE 802.1Q
  • Networking Standards : IEEE 802.3af
  • Networking Standards : IEEE 802.3at
  • Networking Standards : IEEE 802.1w
  • Networking Standards : IEEE 802.1s
  • Networking Standards : IEEE 802.1D
  • Networking Standards : IEEE 802.1x
  • Networking Standards : IEEE 802.3ad
  • Networking Standards : IEEE 802.1p
  • Ethernet Technology : Gigabit Ethernet
  • Total Number of Expansion Slots : 4
  • Network (RJ-45) : Yes
  • Input Voltage : 48 V DC
  • Network Technology : 1000Base-X
  • Network Technology : 10/100/1000Base-TX
  • Expansion Slot Type : SFP
  • Power Source : Power Supply
  • Form Factor : DIN Rail Mountable
  • Form Factor : Wall Mountable
  • Redundant Power Supply Supported : Yes
  • Height : 2.9"
  • Number of SFP Slots : 4
  • Width : 6"
  • Port/Expansion Slot Details : 1 x RS-232 Console Port
  • Port/Expansion Slot Details : 4 x Gigabit Ethernet SFP Expansion Slot
  • Port/Expansion Slot Details : 8 x 10/100/1000BASE-T Gigabit Ethernet PoE RJ-45 Network Port
  • Depth : 4.1"
  • Environmental Compliance : Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
  • Environmental Compliance : Restriction of Hazardous Substances (RoHS)
  • Environmental Compliance : Restriction of Hazardous Substances (RoHS) 3
  • Power Consumption : 12.10 W
  • Country of Origin : Taiwan
  • Maximum Data Transfer Rate : 125 MB/s
  • Plug/Connector Type : Terminal Block
  • Weight (Approximate) : 2.43 lb
  • Additional Info

    Additional Info

    SKU 01074EKI7712G4FPIAU-BF
    Weight 2.4300
    Is Featured N/A
    Manufacturer Advantech Co., Ltd
    Manufacturer Part Number EKI-7712G-4FPI-AU
    Width 6"
    Length 1
    Height 2.9"
    Product ID 01074EKI7712G4FPIAU
    UNSPSC N/A
    Other Part Number N/A
    Special Price N/A
