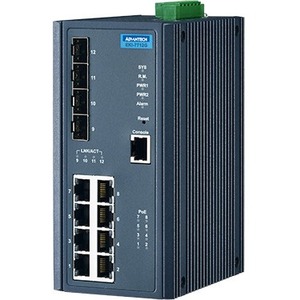

Advantech 8GE + 4SFP Port Managed PoE Ethernet Switch w/Wide Temp - 8 Ports - Manageable - 2 Layer Supported - Modular - 4 SFP Slots - Twisted Pair, Optical Fiber - DIN Rail Mountable, Wall Mountable - 5 Year Limited Warranty

EKI-7712G-4FP/4FPI supports 8 Gigabit IEEE 802.3 af/at PoE ports and 4 SFP (mini-GBIC) ports. They can provide up to 30 watts per port to fulfill high power consumption PD (Power Device). Besides, it is embedded with Advantech IXM function, this can benefit users for fast deployment and can dramatically save engineers time and costs. The EKI-7712G series also support NMS to help IT managers with networking maintenance and failure prevention. Finally, the EKI-7712G series is equipped with X-Ring Pro which can achieve ultra high speed recovery time of less than 20 ms to ensure network stability. The switch also features a wide -40° to 75°C operating temperature (EKI-7712G-4FPI) and NEMA TS2 rating, making the switch an ideal solution for use in traffic applications and have successfully passed the EN50121-4 European railway standard requirements of emission and immunity for railway platforms and trackside deployment.

Availability: Call or email

$1,569.36
$1,569.36

Fast shipping on all in-stock products

Quick turnaround on RFQs - email us today.

Buy from a certified veteran-owned small business (VOSB)

Questions? Call customer service at 503-208-8410.

Description

Details

Advantech 8GE + 4SFP Port Managed PoE Ethernet Switch w/Wide Temp - 8 Ports - Manageable - 2 Layer Supported - Modular - 4 SFP Slots - Twisted Pair, Optical Fiber - DIN Rail Mountable, Wall Mountable - 5 Year Limited Warranty

OVERVIEW:

  • Limited Warranty : 5 Year
  • Manageable : Yes
  • Layer Supported : 2
  • Media Type Supported : Optical Fiber
  • Media Type Supported : Twisted Pair
  • Total Number of Network Ports : 8
  • Ethernet Technology : Gigabit Ethernet
  • Environmentally Friendly : Yes
  • Network Technology : 1000Base-X
  • Network Technology : 10/100/1000Base-T
  • Expansion Slot Type : SFP
  • Uplink Port : No
  • Form Factor : Wall Mountable
  • Form Factor : DIN Rail Mountable
  • Modular : Yes
  • Height : 6"
  • Number of SFP Slots : 4
  • Stack Port : No
  • Width : 2.9"
  • Port/Expansion Slot Details : 4 x Gigabit Ethernet Expansion Slot
  • Port/Expansion Slot Details : 8 x Gigabit Ethernet Network
  • Depth : 4.1"
  • Environmental Compliance : Restriction of Hazardous Substances (RoHS)
  • Country of Origin : Taiwan
  • Weight (Approximate) : 2.43 lb
  • Additional Info

    Additional Info

    SKU 01074EKI7712G4FPIAE-BF
    Weight 2.4300
    Is Featured N/A
    Manufacturer Advantech Co., Ltd
    Manufacturer Part Number EKI-7712G-4FPI-AE
    Width 2.9"
    Length 1
    Height 6"
    Product ID 01074EKI7712G4FPIAE
    UNSPSC N/A
    Other Part Number N/A
    Special Price N/A
