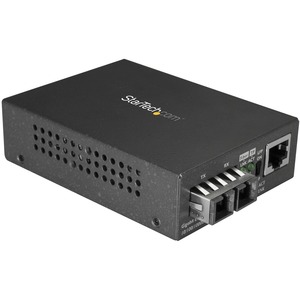

StarTech.com Single Mode SC Fiber Ethernet Media Converter - 1000BASE-LX Gigabit Fiber Optic to Copper Bridge - 10/100/1000 Network 10km - Single mode fiber Ethernet media converter extends & bridges copper networks - 10/100/1000 (Gigabit), 1000BASE-LX, 1

This fiber media converter converts and extends a Gigabit Ethernet (1000 Mbps) network up to 10 km over single-mode fiber on 1000BASE-LX networks.

Extend your GbE network cost-effectively

The fiber media converter provides a cost-effective way to transparently convert copper to fiber, or fiber to copper, for connecting remote sub-networks to larger fiber-optic networks. Providing both SC fiber and RJ45 Ethernet ports, it integrates easily into a wide range of Gigabit Ethernetnetwork infrastructures.The RJ45 port supports triple-speed (10/100/1000 BASE-T) auto-negotiation.

Reliable and scalable network connectivity

Supporting a maximum single-mode fiber cable distance of up to 10 km (6.2 mi.), the media converter delivers a simple and reliable solution for connecting Gigabit Ethernet networks to remote locations, while ensuring solid network performance. It provides optimum network scalability for connecting two or more Ethernet network nodes, for instance, connecting two buildings on the same campus or facility. The media converter also delivers high-speed bandwidth to meet the increasing demands of large-scale workgroups that require expansion of a Gigabit Ethernet network.

The MCMGBSCSM10 is backed by a StarTech.com 2-year warranty and free lifetime technical support.

More from the Manufacturer

More from the Manufacturer

Availability: Call or email

$97.68
$97.68
StarTech.com

Fast shipping on all in-stock products

Quick turnaround on RFQs - email us today.

Buy from a certified veteran-owned small business (VOSB)

Questions? Call customer service at 503-208-8410.

Description

Details

StarTech.com Single Mode SC Fiber Ethernet Media Converter - 1000BASE-LX Gigabit Fiber Optic to Copper Bridge - 10/100/1000 Network 10km - Single mode fiber Ethernet media converter extends & bridges copper networks - 10/100/1000 (Gigabit), 1000BASE-LX, 1310nm, 10km (6.2mi), Unmanaged, SMF, SC, RJ45, Mounting Brackets, LFP, VLAN, ESD Surge + Contact & Air Protection, 2 Yr Warranty

OVERVIEW:

  • Power Source : AC Adapter
  • Package Contents :
    • Gigabit Ethernet to SC Fiber Media Converter - 1000Base-LX - Single-mode - 10 km
    • 1 x Universal Power Adapter (NA/JP, UK, EU, ANZ)
    • 1 x Quick-start Guide
  • Media Type Supported : Optical Fiber
  • Media Type Supported : Twisted Pair
  • Total Number of Ports : 2
  • Limited Warranty : 2 Year
  • Power Consumption : 10 W
  • Form Factor : Wall Mountable
  • Ethernet Technology : Gigabit Ethernet
  • Fiber Mode Supported : Single-mode
  • Network (RJ-45) : Yes
  • Plug/Connector Type : Type N
  • Height : 1"
  • Network Technology : 100Base-LX
  • Network Technology : 10Base-T
  • Network Technology : 1000Base-LX
  • Network Technology : 1000Base-T
  • Environmentally Friendly : Yes
  • Width : 4.1"
  • Fiber Optic Cable Wavelength : 0.1 mil
  • Depth : 2.8"
  • Maximum Distance Supported : 10 km
  • Weight (Approximate) : 6.90 oz
  • Environmental Compliance : Waste Electrical and Electronic Equipment Directive (WEEE)
  • Environmental Compliance : Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
  • Environmental Compliance : Restriction of Hazardous Substances (RoHS)
  • Country of Origin : Taiwan
  • TAA Compliant : Yes
  • Number of Network (RJ-45) Ports : 1
  • Number of SC Ports : 1
  • SC Port Type : Duplex
  • Additional Info

    Additional Info

    SKU 03243MCMGBSCSM10-BF
    Weight 6.9000
    Is Featured N/A
    Manufacturer StarTech.com
    Manufacturer Part Number MCMGBSCSM10
    Width 4.1"
    Length 1
    Height 1"
    Product ID 03243MCMGBSCSM10
    UNSPSC N/A
    Other Part Number N/A
    Special Price N/A
