StarTech.com 10/100 Mbps Ethernet Single Mode WDM Fiber Media Converter Kit SC 20km - Convert and extend a 10/100 Mbps Ethernet connection up to 12.4 miles/20 km over a single mode SC fiber cable - fiber converter - ethernet media converter - fibre conver

The ET90110WDM2 10/100 Mbps Ethernet Single Mode WDM Fiber Media Converter Kit SC (20km) lets you extend a 10/100 Mbps Ethernet connection over single mode fiber, at distances up to 20 km (12.4 mi).

The converter offers Wavelength-Division Multiplexing (WDM), enabling bi-directional communication over a single strand of fiber, essentially doubling the capacity of your existing fiber infrastructure without having to install new cabling.

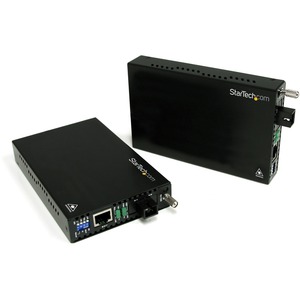

The Ethernet to WDM Fiber Kit includes both endpoints (two interchangeable modules) - a simple solution for connecting 10/100Base-T networks to remote locations using SC-terminated single mode fiber. The Ethernet to Fiber Converter also features a durable all-steel chassis, and a simple plug-and-play installation with minimal configuration required.

For added versatility, this fiber media converter supports standalone operation, or one or both sides can be installed into a 20 Slot, 2U Rackmount Chassis (ETCHS2U).

Backed by a StarTech.com 2-year warranty and free lifetime technical support.

More from the Manufacturer

More from the Manufacturer

Availability: Call or email

$397.10
$397.10
StarTech.com

Fast shipping on all in-stock products

Quick turnaround on RFQs - email us today.

Buy from a certified veteran-owned small business (VOSB)

Questions? Call customer service at 503-208-8410.

Description

Details

StarTech.com 10/100 Mbps Ethernet Single Mode WDM Fiber Media Converter Kit SC 20km - Convert and extend a 10/100 Mbps Ethernet connection up to 12.4 miles/20 km over a single mode SC fiber cable - fiber converter - ethernet media converter - fibre converter - 10/100 media converter - utp to fiber

OVERVIEW:

  • Power Source : AC Adapter
  • Package Contents :
    • 1 x Local Media Converter Unit
    • 1 x Remote Media Converter Unit
    • 2 x Universal Power Adapters (NA/EU/UK/AU)
    • 1 x Grounding Screw
    • 1 x Instruction Manual
  • Media Type Supported : Optical Fiber
  • Media Type Supported : Twisted Pair
  • Total Number of Ports : 2
  • Limited Warranty : 2 Year
  • Power Consumption : 19.20 W
  • Form Factor : Desktop
  • Form Factor : Rack-mountable
  • Ethernet Technology : Fast Ethernet
  • Fiber Mode Supported : Single-mode
  • Network (RJ-45) : Yes
  • Plug/Connector Type : Type M
  • Height : 1"
  • Network Technology : 100Base-FX
  • Network Technology : 10/100Base-TX
  • Environmentally Friendly : Yes
  • DVI : No
  • Width : 3.5"
  • Fiber Optic Cable Wavelength : 0.1 mil
  • Fiber Optic Cable Wavelength : 0.1 mil
  • USB : No
  • Depth : 6.3"
  • Management Port : No
  • Maximum Distance Supported : 20 km
  • Weight (Approximate) : 2.70 lb
  • Environmental Compliance : Waste Electrical and Electronic Equipment Directive (WEEE)
  • Environmental Compliance : Restriction of Hazardous Substances (RoHS)
  • Environmental Compliance : Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
  • Country of Origin : Taiwan
  • TAA Compliant : Yes
  • Number of Network (RJ-45) Ports : 1
  • Number of SC Ports : 1
  • SC Port Type : Duplex
  • Additional Info

    Additional Info

    SKU 03243ET90110WDM2-BF
    Weight 2.7000
    Is Featured N/A
    Manufacturer StarTech.com
    Manufacturer Part Number ET90110WDM2
    Width 3.5"
    Length 1
    Height 1"
    Product ID 03243ET90110WDM2
    UNSPSC N/A
    Other Part Number N/A
    Special Price N/A
