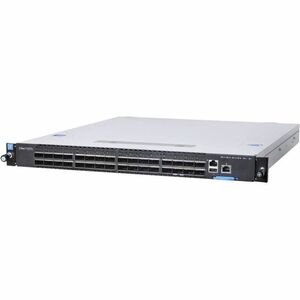

Quanta QuantaMesh T7032-IX7D Ethernet Switch - 2 Ports - Manageable - 40 Gigabit Ethernet, 100 Gigabit Ethernet - 40GBase-X, 100GBase-X - 3 Layer Supported - 293 W Power Consumption - Twisted Pair, Optical Fiber - 1U - Rack-mountable, Standalone - 3 Year

The Next Wave 100G Ethernet Switch for Data Center and Cloud

Data center networks face the changes with hardware and meet the requirements of the software it hosts. Quanta Cloud Technology provides a series of Ethernet Switches, the QCT QuantaMesh switch product line, that addresses these changes and provides the advanced features that meet the demands for the contemporary data center applications. The QCT QuantaMesh product lines provide the connections from 1G to 100Gbps speeds on its Ethernet Switches. To meet the requirements of high performance, high availability, fast scale out, low latency performance, and continuous serviceability for data center applications. The QCT QuantaMesh Ethernet Switch product line supported with QNOS (Quanta Network OS) to provide the advanced features, which is the best choice for Data Center application.

QCT T7032-IX7D is a high-performance and low latency layer 3 managed switches deployed as the Data Center Leaf Switch to connect to 100G servers or deployed as Data Center Spine Switch to aggregate 100G connections from Leaf Switches to expend the network scalability. T7032-IX7D supports 32 QSFP28, each supporting 1 x 100GbE or 1 x 40GbE, or via breakout cables, 2 x 50GbE, 4 x 25GbE, or 4 x 10GbE. It equipped with BMC in a 1-Rack-Unit (1RU) switch and supports 3.2 Terabits per second (Tbps) of bandwidth. By levering merchant silicon chip, T7032-IX7D is a high performance and high density Ethernet switch with advanced features such as smart table, dynamic load balancing, and VxLAN/RIOT support. T7032-IX7D also support larger tables size, improves the performance for larger packet buffers and reduced the latency. With QNOS (Quanta Network OS) supported, T7032-IX7D is the best fit for Data Center application.

Availability: Call or email

$11,333.19
$11,333.19
Quanta Computer, lnc

Fast shipping on all in-stock products

Quick turnaround on RFQs - email us today.

Buy from a certified veteran-owned small business (VOSB)

Questions? Call customer service at 503-208-8410.

Description

Details

Quanta QuantaMesh T7032-IX7D Ethernet Switch - 2 Ports - Manageable - 40 Gigabit Ethernet, 100 Gigabit Ethernet - 40GBase-X, 100GBase-X - 3 Layer Supported - 293 W Power Consumption - Twisted Pair, Optical Fiber - 1U - Rack-mountable, Standalone - 3 Year Limited Warranty

OVERVIEW:

  • Limited Warranty : 3 Year
  • Manageable : Yes
  • Layer Supported : 3
  • Media Type Supported : Optical Fiber
  • Media Type Supported : Twisted Pair
  • Total Number of Network Ports : 2
  • Features : Zero-Touch Provisioning (ZTP)
  • Product Material : Metal
  • Networking Standards : IEEE 802.1Qbb
  • Networking Standards : IEEE 802.1ab
  • Networking Standards : IEEE 802.1p
  • Networking Standards : IEEE 802.3ad
  • Networking Standards : IEEE 802.1ad
  • Networking Standards : IEEE 802.1Q
  • Networking Standards : IEEE 802.1s
  • Networking Standards : IEEE 802.1w
  • Ethernet Technology : 100 Gigabit Ethernet
  • Ethernet Technology : 40 Gigabit Ethernet
  • Total Number of Expansion Slots : 32
  • Network (RJ-45) : Yes
  • Input Voltage : 230 V AC
  • Input Voltage : 120 V AC
  • Compatible Rack Unit : 1U
  • Network Technology : 100GBase-X
  • Network Technology : 40GBase-X
  • Expansion Slot Type : QSFP28
  • Power Source : AC
  • Power Source : Power Supply
  • Form Factor : Standalone
  • Form Factor : Rack-mountable
  • Height : 1.7"
  • Width : 17.3"
  • Fiber Optic Cable Wavelength : 0 mil
  • Fiber Optic Cable Wavelength : 0.1 mil
  • Port/Expansion Slot Details : 1 x Gigabit Ethernet RJ-45 Management Port
  • Port/Expansion Slot Details : 1 x USB 2.0 Port
  • Port/Expansion Slot Details : 1 x RJ-45 Console Port
  • Port/Expansion Slot Details : 32 x 40/100 Gigabit Ethernet QSFP28 Expansion Slot
  • Number of Power Supplies Installed : 2
  • Depth : 20"
  • Environmental Compliance : Restriction of Hazardous Substances (RoHS) 6
  • Power Consumption : 293 W
  • Maximum Data Transfer Rate : 12.50 GB/s
  • Weight (Approximate) : 20.57 lb
  • Additional Info

    Additional Info

    SKU 029341IX7U7Z0002-BF
    Weight 20.5700
    Is Featured N/A
    Manufacturer Quanta Computer, lnc
    Manufacturer Part Number 1IX7U7Z0002
    Width 17.3"
    Length 1
    Height 1.7"
    Product ID 029341IX7U7Z0002
    UNSPSC N/A
    Other Part Number N/A
    Special Price N/A
