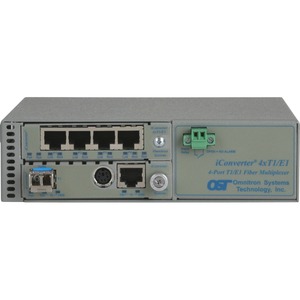

The iConverter 4xT1/E1 MUX/M multiplexes up to four T1/E1s and Ethernet onto a fiber optic transport link, and features remotely managed testing and configuration capabilities.
The iConverter 4xT1/E1 MUX/M operates in a back-to-back configuration, with one multiplexer at each end of the fiber transport link. The 4xT1/E1 MUX/M can be used in applications where services from legacy TDM equipment require transport across long distances that exceed the reach or capacity of copper. This includes applications such as T1/E1 extension, mobile backhaul and building-to-building PBX connectivity, making it ideal for Enterprise, Telecom and Utility industries.
The 4xT1/E1 MUX/M supports fixed-fiber and Small Form Pluggable (SFP) transceivers, enabling easy adaptability to different fiber types, distances and wavelengths. The 4xT1/E1 MUX/M supports multimode, single-mode, single-mode single-fiber, in standard and CWDM wavelengths.
The copper interfaces feature four RJ-48 connectors for balanced T1/E1 applications. An optional adapter cable is available to convert each RJ-48 interface to a BNC interface for unbalanced E1 transport applications.
The 4xT1/E1 MUX/M supports AMI, B8ZS and HDB3 line codes. DIP-switches provide easy configuration of the T1/E1 line codes and line build-out.
The 4xT1/E1 MUX/M features user-selectable local loop-back on both the copper and fiber ports, remote fiber loop-back and circuit test modes. These functions facilitate diagnosis of the remote unit, and minimizes the need for test equipment and support personnel at each end of a link. Alarm relay and LEDs provide fault notification for loss of power, LOS and AIS.
Configuration of T1/E1 line codes, line build out, loopbacks and circuit test is accomplished via local serial port, Telnet, SNMP or DIP-switches.
The 4xT1/E1 MUX/M is a compact, managed standalone unit available in both AC and DC models. The AC model accepts AC power input ranging from 100VAC to 240VAC, 50/60Hz, while the DC model accepts 18VDC to 60VDC.
