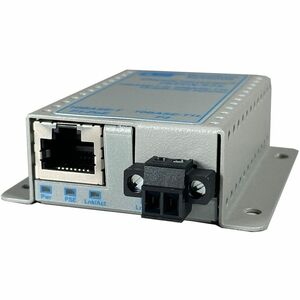

OmniConverter 10TPS/T1L 10BASE-T PoE+ to 10BASE-T1L Media Converter RJ-45 T1L Terminal, Wallmount - 1 x 10BASE-T PoE+, 1 x 10BASE-T1L, US AC Powered, Lifetime Warranty

The OmniConverter 10T/T1L is a family of IEEE 802.3cg compliant products that converts 10BASE-T Ethernet to single-pair 10BASE-T1L Ethernet. They use single-pair Ethernet cabling (SPE) to extend the Ethernet link distance up to 1km.

The OmniConverter 10T/T1L features one 2-pin terminal block 10BASE-T1L IEEE 802.3cg compliant port and one 10BASE-T RJ-45 port supporting 10Mbps full-duplex data rates. The 10TPS/T1L supports IEEE 802.3at (PoE+) on the 10BASE-T RJ-45 port.

The OmniConverter 10T/T1L achieves seamless Ethernet connectivity to IEEE 802.3cg compliant devices, such as field transmitters, building controllers or cameras.

The modules are plug-and-play devices that support 10Mbps data rates and full duplex for simple in-line installation to instantly extend network distances for industrial and inbuilding automation applications.

They are available as a standalone unit with or without integrated mounting brackets. It can be DIN-rail mounted using the optional DIN-rail mounting clip kit (8252-0). Models are available with an external 100 to 240VAC power adapter or with a 2-Pin DC terminal connector.
