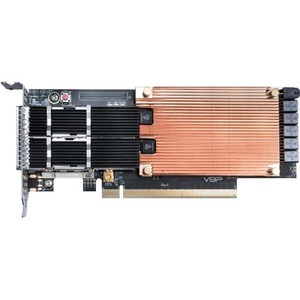

Cisco Nexus V9P-3 200Gigabit Ethernet Card - PCI Express 3.0 x16 - 200 Gbit/s Data Transfer Rate - 2 Port(s) - Optical Fiber - 100GBase-SR4, 40GBase-SR4, 40GBAse-LR4, 100GBase-LR4 - QSFP-DD - Plug-in Card

Highest-density network application card

The Cisco Nexus® SmartNIC+ V9P is an FPGA-based network application card, optimized for low latency and high density.

The device packs a powerful 16nm Xilinx Virtex UltraScale Plus (VU9P) FPGAs with 2.5M logic cells, into a compact, half-height, half-length, PCIe 16x form factor.

High-capacity and low-latency memory | An extensive memory hierarchy for complex, memory-intensive applications

The Xilinx VU9P FPGA (Field Programmable Gate Array) features 75Mbit of block RAM and 270Mbit of UltraRAM on chip. The Cisco Nexus SmartNIC+ V9P further incorporates an additional 9GB of DDR4 DRAM on the board for high throughput access. The DRAM is accessible via a 72-bit-wide bus for maximum performance.

The Cisco Nexus V9P-3 FPGA Application SmartNIC model performs at a higher speed reducing the compile time by 40% over the V9P model compile times, that reduces project build time while increasing network uptime. The improved V9P-3 model logic performance and the faster clocked FPGA helps to eliminate any timing issues and can be programmed to reduce network latency to create a better user experience.

High-bandwidth connectivity | Dual QSFP-DD ports provide up to 400Gbps of full duplex connectivity.

The dual QSFP-DD ports offer high-speed 4x40GbE or 2x200GbE connectivity. Using QSFP-DD breakout cables expands the connectivity to 16x10GbE/25GbE4 connections. This high-density connectivity enables a range of high-performance, directly connected network applications, bypassing the need for traditional switching and multiplexing requirements.

Extensive IP library | Cisco is a specialist in low-latency, high-performance FPGA IP cores.

We provide you the same high-speed, low-latency IP blocks used in our market leading products, including:

  • 10GbE PCS/MAC with ultra-low-latency performance
  • Low-latency, high-throughput PCIe DMA engine
  • Timing, signaling, and register interfaces, including I2C
  • Packet field extractor and frame multiplexer (with source code)
  • Asynchronous FIFO and CDC modules (with source code)

Several example designs are also provided to help get design work started and completed quickly.

Availability: Call or email

$10,040.81
$10,040.81
Cisco Systems, Inc

Fast shipping on all in-stock products

Quick turnaround on RFQs - email us today.

Buy from a certified veteran-owned small business (VOSB)

Questions? Call customer service at 503-208-8410.

Description

Details

Cisco Nexus V9P-3 200Gigabit Ethernet Card - PCI Express 3.0 x16 - 200 Gbit/s Data Transfer Rate - 2 Port(s) - Optical Fiber - 100GBase-SR4, 40GBase-SR4, 40GBAse-LR4, 100GBase-LR4 - QSFP-DD - Plug-in Card

OVERVIEW:

  • Limited Warranty : 1 Year
  • Network Technology : 100GBase-LR4
  • Network Technology : 40GBAse-LR4
  • Network Technology : 40GBase-SR4
  • Network Technology : 100GBase-SR4
  • Media Type Supported : Optical Fiber
  • Host Interface : PCI Express 3.0 x16
  • Expansion Slot Type : QSFP-DD
  • Total Number of Ports : 2
  • Form Factor : Plug-in Card
  • Height : 2.7"
  • Maximum Data Transfer Rate : 200 Gbit/s
  • Width : 6.6"
  • Environmentally Friendly : Yes
  • Environmental Compliance : Waste Electrical and Electronic Equipment Directive (WEEE)
  • Additional Info

    Additional Info

    SKU 01468NXNV9P316X9GB=-BF
    Weight 1.0000
    Is Featured N/A
    Manufacturer Cisco Systems, Inc
    Manufacturer Part Number NXN-V9P3-16X-9GB=
    Width 6.6"
    Length 1
    Height 2.7"
    Product ID 01468NXNV9P316X9GB=
    UNSPSC N/A
    Other Part Number N/A
