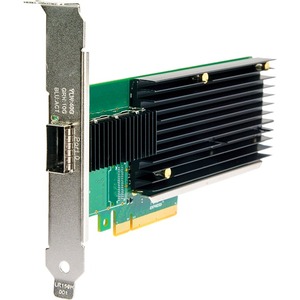

Axiom 40Gbs Dual Port QSFP+ PCIe 3.0 x8 NIC Card for Dell - 540-BBRN - PCI Express 3.0 x8 - 40 Gbit/s Data Transfer Rate - Intel XL710AM2 - 2 Port(s) - Optical Fiber - 40GBase-X - QSFP+ - Plug-in Card

Features

The Axiom QSFP+ PCIe 3.0 x8 40Gbs Fiber Network Adapter is designed for Servers and high-end appliances. They offer simple integration into any PCI Express X8 to 40 Gigabit Networks. Based on Intel XL710AM Ethernet controller with two fully integrated Gigabit Ethernet Media Access Control (MAC) and XLPPI Interfaces, the Axiom QSFP+ NIC cards are the ideal solution for implementing multiple network segments, mission-critical high-powered networking applications and environments within high performance servers.

Key Features:

  • Network Virtualization offloads for VXLAN and NVGRE
  • Unified Networking Providing a single wire for LAN and storage: NAS (SMB, NFS) and SAN (iSCSI,FCoE)
  • Virtual Bridging Support - VEPA/802.1Qbg,BPE/802.1Qbh
  • Physical Functions - Up to 8 per port
  • Support for 128 Virtual Device Queues (VMDq) per port
  • Hardware Queue Pairs - Up to 1.5K (non-RDMA); up to 256K (RDMA)
  • Virtualization - Alleviating hypervisor I/O bottlenecks by providing flow separation for Virtual Machines
  • Includes Full Height and Half Height Mounting Brackets

Availability: Call or email

$827.33
$827.33
Axiom Memory Solutions

Fast shipping on all in-stock products

Quick turnaround on RFQs - email us today.

Buy from a certified veteran-owned small business (VOSB)

Questions? Call customer service at 503-208-8410.

Description

Details

Axiom 40Gbs Dual Port QSFP+ PCIe 3.0 x8 NIC Card for Dell - 540-BBRN - PCI Express 3.0 x8 - 40 Gbit/s Data Transfer Rate - Intel XL710AM2 - 2 Port(s) - Optical Fiber - 40GBase-X - QSFP+ - Plug-in Card

OVERVIEW:

  • Limited Warranty : 3 Year
  • Network Technology : 40GBase-X
  • Package Contents :
    • 40Gbs Dual Port QSFP+ PCIe 3.0 x8 NIC Card for Dell - 540-BBRN
    • Full Height Mounting Brackets
    • Half Height Mounting Brackets
  • Media Type Supported : Optical Fiber
  • Host Interface : PCI Express 3.0 x8
  • Chipset Manufacturer : Intel
  • Device Supported : NAS Storage Device/Server
  • Expansion Slot Type : QSFP+
  • Total Number of Ports : 2
  • Chipset Model : XL710AM2
  • Form Factor : Plug-in Card
  • Height : 6.5"
  • Maximum Data Transfer Rate : 40 Gbit/s
  • Width : 0.5"
  • Depth : 2.7"
  • Weight (Approximate) : 4.96 oz
  • Additional Info

    Additional Info

    SKU 01253540BBRNAX-BF
    Weight 4.9600
    Is Featured N/A
    Manufacturer Axiom Memory Solutions
    Manufacturer Part Number 540-BBRN-AX
    Width 0.5"
    Length 1
    Height 6.5"
    Product ID 01253540BBRNAX
    UNSPSC N/A
    Other Part Number N/A
    Special Price N/A
