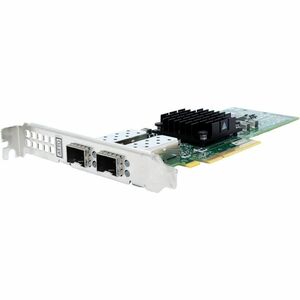

ATTO 10/25/40/50/100GbE FastFrame SmartNICs - PCI Express 3.0 x8 - 25 Gbit/s Data Transfer Rate - 2 Port(s) - Optical Fiber - Low Profile Bracket Height - SFP28 - Plug-in Card

ATTO FastFrame SmartNICs fourth generation of Ethernet connectivity products provide unmatched performance, industry-lowest latency and the versatility needed to support the most demanding and complex ecosystems. Supporting line speeds of up to 100GbE and latency as low as 1µs, ATTO SmartNICs can be used across the data center from the core to the edge.

As Ethernet networks are being enhanced to manage large unstructured data they can depend on the company that customers have trusted for over 30 years to move and protect their data. FastFrame adapters are suitable for media & entertainment applications such as video post-production, finishing, imaging, archiving and workgroup file sharing, as well as IT applications such as data analytics, high-performance computing (HPC) clusters, hyperconverged servers, AI/ML/DL, and unstructured data.

ATTO 360 Tuning, Monitoring and Analytics

ATTO simplifies the installation and configuration of our world-class SmartNICs via our ATTO 360 management utility. This software offers easy-to-use tuning profiles for performance optimization including partner-specific storage profiles that get the most out of your adapter and Ethernet storage. This application also includes ATTOview monitoring that analyzes thousands of metrics in both real-time and point-in-time via a time series database. An advanced diagnostics engine points users to potential bottlenecks offering instant advice to solve connection issues.

Optimized for Data Center Applications

ATTO uses the latest controller technology to accelerate data I/O and deliver industryleading performance. With end-to-end Quality of Service algorithms built into the product, network congestion is greatly reduced, RDMA support as well as built-in hardware and software offload engines accelerate data and reduce CPU overhead.

ATTO Ethernet Suite for Windows and Linux

Our groundbreaking custom installer, Ethernet Suite, loads relevant drivers, ATTO 360 management utility, and all dependencies needed to transport data via RDMA if needed. Other options require you to load drivers, utilities, and dependencies separately and consume valuable time, ATTO Ethernet Suite has everything you need in a single convenient package designed to have ATTO users up and running quickly without frustration.

Performance Engineered for 4K/8K Digital Video

Bandwidth reductions caused by transmission control protocol overhead make many competing NICs incapable of supporting 8K video. Our SmartNICs, in contrast, utilize RoCE to free up the full pipeline, providing sufficient bandwidth for multiple streams of raw 8K and 4K video.

Availability: Call or email

$945.00
$945.00
Atto Technology

Fast shipping on all in-stock products

Quick turnaround on RFQs - email us today.

Buy from a certified veteran-owned small business (VOSB)

Questions? Call customer service at 503-208-8410.

Description

Details

ATTO 10/25/40/50/100GbE FastFrame SmartNICs - PCI Express 3.0 x8 - 25 Gbit/s Data Transfer Rate - 2 Port(s) - Optical Fiber - Low Profile Bracket Height - SFP28 - Plug-in Card

OVERVIEW:

  • Limited Warranty : 3 Year
  • Media Type Supported : Optical Fiber
  • Total Number of Expansion Slots : 2
  • Host Interface : PCI Express 3.0 x8
  • Device Supported : Rack Server
  • Expansion Slot Type : SFP28
  • Total Number of Ports : 2
  • Form Factor : Plug-in Card
  • Features : Plug and Play
  • Features : User Datagram Protocol (UDP)
  • Features : Network Virtualization using Generic Routing Encapsulation (NVGRE)
  • Features : Virtual Extensible LAN (VXLAN)
  • Features : Single Root I/O Virtualization (SR-IOV)
  • Features : Transmit Side Scaling (TSS)
  • Features : Receive Side Scaling (RSS)
  • Features : Large Receive Offload (LRO)
  • Features : TCP Segmentation Offload (TSO)
  • Features : Extended Message-Signaled Interrupts (MSI-X)
  • Features : Large Send Offload (LSO)
  • Features : RDMA over Converged Ethernet (RoCE)
  • Bracket Height : Low Profile
  • Maximum Data Transfer Rate : 25 Gbit/s
  • Environmental Compliance : Restriction of Hazardous Substances (RoHS)
  • Additional Info

    Additional Info

    SKU 01217FFRMN422DA0-BF
    Weight 1.0000
    Is Featured N/A
    Manufacturer Atto Technology
    Manufacturer Part Number FFRM-N422-DA0
    Width 1
    Length 1
    Height 1
    Product ID 01217FFRMN422DA0
    UNSPSC N/A
    Other Part Number N/A
    Special Price N/A
