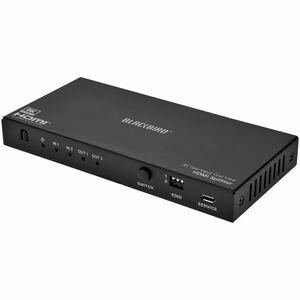

This 8K Dual Function HDMI® Splitter/Switch allows you to switch between either of two HDMI inputs and distribute the signal to two HDMI displays. It supports HDMI video resolutions up to 8K@60Hz with the YCbCr 4:2:0 color space, as well as multichannel compressed and uncompressed audio streams. It complies with the HDMI 2.1 and HDCP™ 2.3 specifications and can deliver up to 40Gbps video bandwidth. It includes DIP switches to manage the EDID® settings.
- Switches between either of two inputs and distributes the signal to two HDMI® displays, or simultaneously sends the image from one source to both displays
- Supports video resolutions up to 8K@60Hz 10-bit with the YCbCr 4:2:0 color space, including 8K@30Hz 10-bit with YCbCr 4:4:4, and 4K@120Hz 10-bit with YCbCr 4:4:4
- Complies with the HDMI 2.1 and HDCP™ 2.3 specifications
- Delivers up to 40Gbps video bandwidth
- Supports HDR, HDR10, HDR10+, Dolby Vision™, and Hyper Log Gamma (HLG) passthrough
- Supports multichannel compressed and uncompressed audio streams, Including LPCM, Dolby Digital™, Dolby Digital Plus™, Dolby Digital EX, Dolby TrueHD™, DTS®, DTS:X®, DTS 96/24, DTS High Res, DTS-HD Master Audio, and Direct Stream Digital™ (DSD)
- Supports the Variable Refresh Rate (VRR), Fast as Possible V-active (FVA), and Auto Low Latency Mode (ALLM) HDMI features
- Built-in signal equalizer with retiming
- Advanced EDID® management
SPLITTER AND SWITCH
Switches between either of two inputs and distributes the signal to two HDMI® displays, or simultaneously sends the image from one source to both displays.
ULTRA DEFINITION VIDEO
Supports full 8K60 Ultra Definition video with 4,2,0 color space for the ultimate in motion video experience.
INTENSE CONTRAST
Supports HDR, HDR10, HDR10+, Dolby Vision™, and Hyper Log Gamma (HLG) passthrough.
FURIOUS SOUND
Supports multichannel compressed and uncompressed audio streams, Including LPCM, Dolby Digital™, Dolby Digital Plus™, Dolby Digital EX, Dolby TrueHD™, DTS®, DTS:X®, DTS 96/24, DTS High Res, DTS-HD Master Audio, and Direct Stream Digital™ (DSD)
