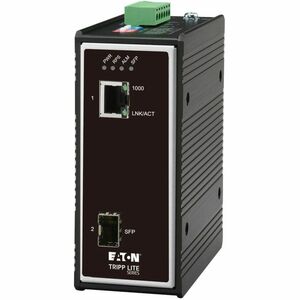

Eaton Tripp Lite Series Industrial Gigabit Fiber to Ethernet Media Converter, 10/100/1000 Mbps, RJ45/SFP, -40° to 75°C, DC Power, TAA - 1 x Network (RJ-45) - Multi-mode, Single-mode - Gigabit Ethernet - 10/100/1000Base-T, 100/1000Base-X - 1 x Expa

Features | Customize a Network Extension over Fiber Optic Cable
This network media converter works with a variety of SFP transceivers to convert a copper Gigabit Ethernet signal to fiber optic and extend it to a second network device. The customizable SFP port supports both singlemode and multimode transceivers, allowing your network connection to reach hubs, switches and other devices located farther away than copper cabling's 100-meter limit. Auto-negotiation and automatic MDI/MDI-X configuration seamlessly connect devices without crossover cabling.

Monitor Your Installation with Link Fault Signaling and Loop Back Functions
Determine the health of your network connection via the Link Fault Signaling (LFS) and Line Loop Back (LLB) functions. The LFS LED indicates when a copper or fiber cable has been severed or another cause of disruption in service has occurred. The LLB diagnostic test ensures copper and fiber cables have been correctly installed. Use the DIP switches to control each function or turn them on or off.

LEDs Indicate Installation Performance and Diagnostic Functions
Easy-to-read LEDs on the side of the unit indicate essential status information, including network speed and connection, LFS diagnostics and unit power. The included 20-57VDC terminal block provides primary and secondary power inputs.

Protective Metal Housing Built to Withstand a Variety of Hazards
The IP30 industrial-grade aluminum case is protected from entry by tools, wires and other solid objects greater than 2.5 millimeters in diameter. It can also operate in extreme temperatures ranging from -40 to 75 degrees Celsius (-40 to 167 degrees Fahrenheit). It is protected from electrostatic discharge (ESD), radio frequency interference (RFI) and power surges. Hardware is included for DIN mounting.

TAA-Compliant for GSA Schedule Purchases
The N785-I01-SFP-D is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.

Availability: Call or email

$248.00
$248.00
Eaton Corporation

Fast shipping on all in-stock products

Quick turnaround on RFQs - email us today.

Buy from a certified veteran-owned small business (VOSB)

Questions? Call customer service at 503-208-8410.

Description

Details

Eaton Tripp Lite Series Industrial Gigabit Fiber to Ethernet Media Converter, 10/100/1000 Mbps, RJ45/SFP, -40° to 75°C, DC Power, TAA - 1 x Network (RJ-45) - Multi-mode, Single-mode - Gigabit Ethernet - 10/100/1000Base-T, 100/1000Base-X - 1 x Expansion Slots - SFP (mini-GBIC) - 1 x SFP Slots - DIN Rail Mountable - TAA Compliant

OVERVIEW:

  • Power Source : AC Adapter
  • Package Contents :
    • N785-I01-SFP-D Transceiver/Media Converter
    • SFP Connector Cap
    • RJ45 Connector Cap
    • Terminal Block (20-57VDC)
    • DIN Rail Kit
    • Quick Start Guide
  • Media Type Supported : Optical Fiber
  • Media Type Supported : Twisted Pair
  • Total Number of Expansion Slots : 1
  • Total Number of Ports : 1
  • Limited Warranty : 2 Year
  • Power Consumption : 6 W
  • Form Factor : DIN Rail Mountable
  • Ethernet Technology : Gigabit Ethernet
  • Fiber Mode Supported : Single-mode
  • Fiber Mode Supported : Multi-mode
  • Network (RJ-45) : Yes
  • Plug/Connector Type : Terminal Block
  • Height : 0.6"
  • Network Technology : 100/1000Base-X
  • Network Technology : 10/100/1000Base-T
  • Environmentally Friendly : Yes
  • Expansion Slot Type : SFP (mini-GBIC)
  • Width : 1.8"
  • Number of SFP Slots : 1
  • Depth : 3.8"
  • Weight (Approximate) : 14.88 oz
  • Environmental Compliance : Restriction of Hazardous Substances (RoHS)
  • Country of Origin : Taiwan
  • TAA Compliant : Yes
  • Number of Network (RJ-45) Ports : 1
  • Additional Info

    Additional Info

    SKU 01731N785I01SFPD-BF
    Weight 14.8800
    Is Featured N/A
    Manufacturer Eaton Corporation
    Manufacturer Part Number N785-I01-SFP-D
    Width 1.8"
    Length 1
    Height 0.6"
    Product ID 01731N785I01SFPD
    UNSPSC N/A
    Other Part Number N/A
    Special Price N/A
