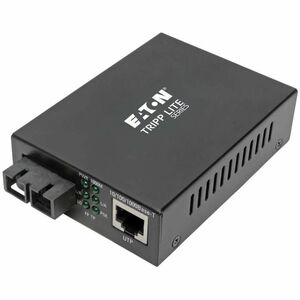

Eaton Tripp Lite Series Gigabit Multimode Fiber to Ethernet Media Converter, POE+, International Power Cables, 10/100/1000 SC, 1310 nm, 2 km (1.2 mi.) - 1 x Network (RJ-45) - 1 x SC Ports - DuplexSC Port - Multi-mode - 1310 nm Fiber - Gigabit Ethernet - 1

Extends your copper Gigabit Ethernet network connection up to 550 m over LC fiber optic cable with the addition of PoE.

Features | Extends Power and Data to a PoE+ Device up to 550 m via LC Multimode Fiber Cable
This economical unit converts a multimode fiber optic signal to a copper Ethernet signal that extends both power (48 VDC) and 10/100/1000 Mbps Gigabit Ethernet up to 550 meters (1,804 feet) using Cat5e/6 cabling. The N785-INT-PLCMM1 is ideal for providing power and data to PoE and PoE+ devices, such as security cameras, VoIP telephones, point-of-sale kiosks and access control devices.

Supports Power over Ethernet to Save You Money and Give You More Installation Choices
PoE saves you the expense and effort of purchasing, connecting and installing individual power supplies for each device. It also helps you install PoE devices in areas far away from AC outlets, such as poles or ceilings.

Supports Auto-Sensing of Network Speed and Other Advanced Functions
Monitoring and controlling your network nodes is easy with the N785-INT-PLCMM1's advanced features, such as automatic network speed sensing, full/half-duplex auto-detection and automatic MDI/MDIX configuration. Six LEDs indicate the converter's power, PoE, Ethernet network and fiber link statuses at a glance. Link fault pass through (LFP) monitors both the LC and RJ45 ports to ensure link status remains active.

Completely Plug-and-Play with No Additional Software Required for Connection
The compact metal converter is easy to install and set up with no software or drivers required. The included power supply comes with four international power cables (North America, Europe, United Kingdom, Australia) for connecting to an AC outlet with no computer or other signal source needed.

Availability: Call or email

$215.00
$215.00

Fast shipping on all in-stock products

Quick turnaround on RFQs - email us today.

Buy from a certified veteran-owned small business (VOSB)

Questions? Call customer service at 503-208-8410.

Description

Details

Eaton Tripp Lite Series Gigabit Multimode Fiber to Ethernet Media Converter, POE+, International Power Cables, 10/100/1000 SC, 1310 nm, 2 km (1.2 mi.) - 1 x Network (RJ-45) - 1 x SC Ports - DuplexSC Port - Multi-mode - 1310 nm Fiber - Gigabit Ethernet - 10/100/1000Base-T - 1.24 Mile - AC Adapter - Pole, Ceiling Mountable

OVERVIEW:

  • Power Source : AC Adapter
  • Package Contents :
    • N785-INT-PSCMM2 Transceiver/Media Converter
    • External Power Supply (Input: 100-240V, 50/60 Hz, 1.5A; Output: 48V 1.25A)
    • 4 x International Power Cables (North America, Europe, U.K., Australia)
    • Owner's Manual
  • Media Type Supported : Twisted Pair
  • Media Type Supported : Optical Fiber
  • Total Number of Ports : 2
  • Limited Warranty : 2 Year
  • Form Factor : Ceiling Mountable
  • Form Factor : Pole
  • Ethernet Technology : Gigabit Ethernet
  • Fiber Mode Supported : Multi-mode
  • Network (RJ-45) : Yes
  • Plug/Connector Type : CEE 7/16
  • Plug/Connector Type : BS 1363
  • Plug/Connector Type : AS3112
  • Plug/Connector Type : NEMA 5-15P
  • Height : 1"
  • Network Technology : 10/100/1000Base-T
  • Environmentally Friendly : Yes
  • Width : 2.8"
  • Fiber Optic Cable Wavelength : 0.1 mil
  • Depth : 3.7"
  • Maximum Distance Supported : 2 km
  • Environmental Compliance : Waste Electrical and Electronic Equipment Directive (WEEE)
  • Environmental Compliance : Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
  • Environmental Compliance : Restriction of Hazardous Substances (RoHS) 3
  • Environmental Compliance : Restriction of Hazardous Substances (RoHS)
  • Number of Network (RJ-45) Ports : 1
  • Number of SC Ports : 1
  • SC Port Type : Duplex
  • Additional Info

    Additional Info

    SKU 01731N785INTPSCMM2-BF
    Weight 1.0000
    Is Featured N/A
    Manufacturer Tripp Lite by Eaton
    Manufacturer Part Number N785-INT-PSCMM2
    Width 2.8"
    Length 1
    Height 1"
    Product ID 01731N785INTPSCMM2
    UNSPSC N/A
    Other Part Number N/A
    Special Price N/A
