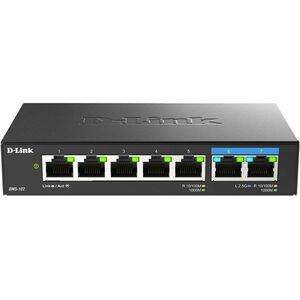

D-Link 7-Port Multi-Gigabit Unmanaged Switch - 7 Ports - Gigabit Ethernet, 2.5 Gigabit Ethernet - 10/100/1000Base-T, 2.5GBase-T - 2 Layer Supported - 3.37 W Power Consumption - Twisted Pair - Desktop, Wall Mountable

Why You Want It | Plug and Play

Ready to perform right out of the box with no configuration required

Multi-GIGABIT Ports

Multi-Gigabit ports for high data rate transmission

Wi-Fi 6 Ready

Take advantage of the efficiency and speeds provided by Wi-Fi 6

LED Indicator

Multi-Gigabit ports for high data rate transmission

Durable Design

Metal housing enhances the durability

Silent Operation

Fanless design enhances reliability and is suitable for noise-free working environments

QoS Management

Quality of Service for uninterrupted connections

Energy Saving Technology

Designed for low power consumption

Plug-and-play to enjoy fast connectivity

The DMS-107 7-Port Multi-Gigabit Unmanaged Switch offers five Gigabit and two 2.5 Gigabit Ethernet ports for high-speed to meet your high-performance expectations. The Gigabit ports are ready for Wi-Fi 6, providing unlimited speed and performance. DMS-107 also supports IEEE 802.3az Energy-Efficient Ethernet (EEE), which can reduce power consumption and optimize usage. Without complex installation steps, plug-and-play is convenient and easy for every usage scenario.

Silent Operation

The DMS-107 owns a metal out case with a fanless design which can improve heat dissipation and allows noise-free operation in the working area. All the high-quality designs enhance its durability and are ideally suited for Small Office Home Office (SOHO) environments.

Integrated Networking

The auto-sensing ports of DMS-107 flexibly build an integrated workgroup network. Through the auto-negotiation feature, these ports will detect the network speed and allow you to get the maximum speed possible for each device.

Traffic Management

The traffic management of DMS-107 includes IEEE 802.1p Quality of Service (QoS) and IEEE 802.3x Flow Control. The 802.1p QoS feature classified the traffic into 8 priority levels and prioritized by their importance. As for Flow Control, it will temporarily stop data transmission when the switch's input buffer is full, helping to minimize dropped packets. The traffic management features provide a more reliable connection for all your devices.

Green Technology

Under the concept of Eco-friendly, the DMS-107 switch features green technology, such as IEEE 802.3az Energy-Efficient Ethernet (EEE) and link status detection. While the network utilization is low, Energy-Efficient Ethernet can efficiently reduce the switch's power consumption, bringing down the cost in the inactivity duration. Also, the power-saving mode automatically powers down the ports when no link is detected. The link status detection function will effectively save energy and costs.

Simplified Installation

All the ports on the DMS-107 support automatic MDI/MDIX crossover without any cables. Each port connects the server, hub, router, or switch easily just by plugging in the cable. Besides, the DMS-107 ports feature LED indicators. With the indicators, you can easily distinguish link status.

Availability: Call or email

$88.99
$88.99
D-Link Systems, Inc

Fast shipping on all in-stock products

Quick turnaround on RFQs - email us today.

Buy from a certified veteran-owned small business (VOSB)

Questions? Call customer service at 503-208-8410.

Description

Details

D-Link 7-Port Multi-Gigabit Unmanaged Switch - 7 Ports - Gigabit Ethernet, 2.5 Gigabit Ethernet - 10/100/1000Base-T, 2.5GBase-T - 2 Layer Supported - 3.37 W Power Consumption - Twisted Pair - Desktop, Wall Mountable

OVERVIEW:

  • Manageable : No
  • Layer Supported : 2
  • Media Type Supported : Twisted Pair
  • Total Number of Network Ports : 7
  • Features : Fanless
  • Product Material : Metal
  • Networking Standards : IEEE 802.3u
  • Networking Standards : IEEE 802.3bz
  • Networking Standards : IEEE 802.3ab
  • Networking Standards : IEEE 802.3
  • Networking Standards : IEEE 802.3x
  • Networking Standards : IEEE 802.1p
  • Networking Standards : IEEE 802.3az
  • Ethernet Technology : 2.5 Gigabit Ethernet
  • Ethernet Technology : Gigabit Ethernet
  • Input Voltage : 12 V
  • Environmentally Friendly : Yes
  • Network Technology : 2.5GBase-T
  • Network Technology : 10/100/1000Base-T
  • Form Factor : Wall Mountable
  • Form Factor : Desktop
  • Port/Expansion Slot Details : 2 x 2.5 Gigabit Ethernet Network
  • Port/Expansion Slot Details : 5 x Gigabit Ethernet Network
  • Environmental Compliance : Restriction of Hazardous Substances (RoHS)
  • Power Consumption : 3.37 W
  • Weight (Approximate) : 10.41 oz
  • Additional Info

    Additional Info

    SKU 01680DMS107-BF
    Weight 10.4100
    Is Featured N/A
    Manufacturer D-Link Systems, Inc
    Manufacturer Part Number DMS-107
    Width 1
    Length 1
    Height 1
    Product ID 01680DMS107
    UNSPSC N/A
    Other Part Number N/A
    Special Price N/A
