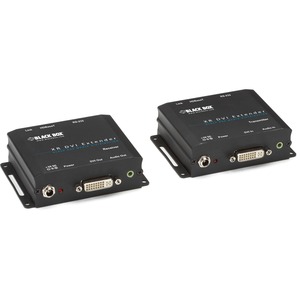

Black Box XR DVI-D Extender with Audio RS-232 and HDCP - 1 Computer(s) - 1 Local User(s) - 330 ft Range - 1920 x 1200 Maximum Video Resolution - 2 x Network (RJ-45) - 2 x DVI - 120 V AC, 240 V AC Input Voltage - Wall Mountable - TAA Compliant

  • Supports resolutions up to 1080p (HDTV) or 1920 x 1200 (VESA).
  • Enables flexible screen location without compromising video quality.
  • HDCP compliant and Blu-ray ready, and supports EDID.
  • Transmits serial RS-232 TXD and RXD control signals.
  • Includes a transmitter and a wallmountable receiver.
  • Auto equalization for extended video range.
  • No software or driver installation required.
  • Complies with the DVI 1.0 standard.

Put a digital DVI screen up to 330 feet (100 m) from a video source and control a monitor via RS-232 TXD and RXD control signals with this extender.

Extending over a single CAT5e/6/7 cable, the transmitter-receiver combo supports both HDTV resolutions and VESA standards. The extender makes it easy to send digital 1080p-quality video and 2-channel stereo analog audio plus serial RS-232 control signals to a distant screen or projector.

Audio is integrated into the CATx cable extension, so you don't need a separate cable to transmit audio from the source to the screen.

Because the extender supports bidirectional RS-232 control, you can use serial commands from a PC to control RS-232 equipment or turn a remote screen on and off to save energy in your video application.

Plus, the XR DVI-D Extender with Audio, RS-232, and HDCP supports EDID and HDCP bypass, so you can also extend content from a protected-content source.

*Distance depends on the characteristics and quality of the cable and the type of DVI source and display.

Availability: Call or email

$456.40
$456.40
Black Box Corporation

Fast shipping on all in-stock products

Quick turnaround on RFQs - email us today.

Buy from a certified veteran-owned small business (VOSB)

Questions? Call customer service at 503-208-8410.

Description

Details

Black Box XR DVI-D Extender with Audio RS-232 and HDCP - 1 Computer(s) - 1 Local User(s) - 330 ft Range - 1920 x 1200 Maximum Video Resolution - 2 x Network (RJ-45) - 2 x DVI - 120 V AC, 240 V AC Input Voltage - Wall Mountable - TAA Compliant

OVERVIEW:

  • Limited Warranty : 3 Year
  • Connectivity Technology : Wired
  • Input Voltage : 240 V AC
  • Input Voltage : 120 V AC
  • Package Contents :
    • Transmitter
    • Receiver
    • 2 x Power Supplies with Cords
    • 2 x Wallmount Brackets
    • 4 x Screws
    • User Manual
  • Maximum Video Resolution : 1920 x 1200
  • Input Voltage Range : 100V AC to 240V AC
  • Network (RJ-45) : Yes
  • Number of Computers Supported : 1
  • Power Consumption : 20 W
  • Environmentally Friendly : Yes
  • Number of Local Users Supported : 1
  • Form Factor : Wall Mountable
  • Transmitter Height : 1.30"
  • Maximum Operating Distance : 330 ft
  • Transmitter Width : 4.10"
  • DVI : Yes
  • Transmitter Depth : 3"
  • Device Type : KVM Extender
  • Receiver Height : 1.30"
  • Country of Origin : Taiwan
  • Receiver Width : 4.10"
  • TAA Compliant : Yes
  • Receiver Depth : 3"
  • Transmitter Weight (Approximate) : 14.40 oz
  • Receiver Weight (Approximate) : 14.40 oz
  • Number of Network (RJ-45) Ports : 2
  • Number of DVI Ports : 2
  • Additional Info

    Additional Info

    SKU 01312AVXDVITP100M-BF
    Weight 1.0000
    Is Featured N/A
    Manufacturer Black Box Corporation
    Manufacturer Part Number AVX-DVI-TP-100M
    Width 1
    Length 1
    Height 1
    Product ID 01312AVXDVITP100M
    UNSPSC N/A
    Other Part Number N/A
    Special Price N/A
