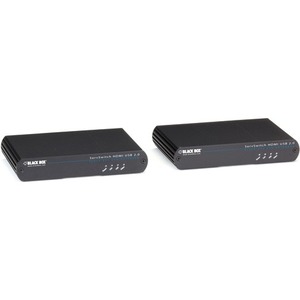

Black Box KVM Extender, HDMI, USB 2.0, Single Access, CATx - 1 Computer(s) - 1 Remote User(s) - 328.08 ft Range - WUXGA - 1920 x 1200 Maximum Video Resolution - 2 x Network (RJ-45) - 6 x USB - 2 x HDMI - 120 V AC, 230 V AC Input Voltage - For PC, Mac, Lin

Protect your computer and secure it in a safe place up to 330 feet (100 m) from your workstation, connected with a single inexpensive CATx cable. Supports Full HD video and USB 2.0, including control of the keyboard, mouse, Web cameras, Flash drive, speakers, microphone, and other USB 1.1 and USB 2.0 devices.

The ideal high-resolution KVM extender
The ServSwitch™ HDMI with USB 2.0 KVM Extender preserves the quality of the HDMI video signal and offers real-time transmission without the delays and compression that degrades the high-resolution viewing experience. Now you can take full advantage of the high-def video you get with HDMI and extend those signals 100 meters without compromise. It's ideal for use in applications such as high-end medical imaging, interactive digital signage, home theaters, even industrial controls.

USB HID support
The extender supports of a variety of HIDs. Keyboards and mice are the most common HIDs, but other devices based on HID protocol, including some touch screens, will work as well.

DDC read channel
The DDC read capability enables true EDID information to be received from the attached display. This guarantees optimum plug-and-play support.

Availability: Call or email

$959.10
$959.10
Black Box Corporation

Fast shipping on all in-stock products

Quick turnaround on RFQs - email us today.

Buy from a certified veteran-owned small business (VOSB)

Questions? Call customer service at 503-208-8410.

Description

Details

Black Box KVM Extender, HDMI, USB 2.0, Single Access, CATx - 1 Computer(s) - 1 Remote User(s) - 328.08 ft Range - WUXGA - 1920 x 1200 Maximum Video Resolution - 2 x Network (RJ-45) - 6 x USB - 2 x HDMI - 120 V AC, 230 V AC Input Voltage - For PC, Mac, Linux

OVERVIEW:

  • Limited Warranty : 1 Year
  • Graphic Mode : WUXGA
  • Connectivity Technology : Wired
  • Input Voltage : 230 V AC
  • Input Voltage : 120 V AC
  • Package Contents :
    • Transmitter
    • Receiver
    • 1 x USB Type A to B Cable
    • 2 x 5-VDC Power Supplies
    • 2 x 6-ft. Power Cords
    • 1 x 6-ft. HDMI Cable
    • Rubber Feet
  • Maximum Video Resolution : 1920 x 1200
  • Platform Supported : Linux
  • Platform Supported : Mac
  • Platform Supported : PC
  • Network (RJ-45) : Yes
  • Number of Computers Supported : 1
  • Environmentally Friendly : Yes
  • USB : Yes
  • Number of Remote Users Supported : 1
  • Transmitter Height : 4.40"
  • Maximum Operating Distance : 328.08 ft
  • Transmitter Width : 6.90"
  • Transmitter Depth : 1.20"
  • Environmental Compliance : Waste Electrical and Electronic Equipment Directive (WEEE)
  • Environmental Compliance : Restriction of Hazardous Substances (RoHS)
  • Receiver Height : 4.40"
  • Country of Origin : NA
  • Receiver Width : 6.90"
  • HDMI : Yes
  • Receiver Depth : 1.20"
  • Number of HDMI Ports : 2
  • Number of Network (RJ-45) Ports : 2
  • Number of USB Ports : 6
  • Additional Info

    Additional Info

    SKU 01312ACU2500AR3-BF
    Weight 1.0000
    Is Featured N/A
    Manufacturer Black Box Corporation
    Manufacturer Part Number ACU2500A-R3
    Width 1
    Length 1
    Height 1
    Product ID 01312ACU2500AR3
    UNSPSC N/A
    Other Part Number N/A
    Special Price N/A
