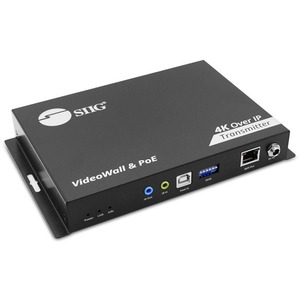

SIIG 4K 60Hz 18Gbps HDMI over IP Matrix - Encoder (TX) 394ft TAA Compliant - Transmits 4K@60Hz HDMI signal up to 394ft (120m) over a single Cat6/7 cable - DIP Switch - AV Over IP - PoE - One-to-One / One-to-Many / N to M Multi-casting - Up to 1023 transmi

Overview

HDMI over IP Matrix - Encoder (TX), transmits 4K@60Hz HDMI signal up to 394Ft (120m) over a single Cat6/7 cable, PoE, One to One, One to Many, Multi-casting, Video Wall, KVM, 18Gbps, HDCP 2.2, HDR 10, 7.1ch, Bi-directional IR, RS-232 Control, TAA Compliant, Kit (CE-H28A11-S1), Decoder (RX) (CE-H27G11-S1)

Features

Flexible matrix function to extend HDMI HDMI audio/video signals to the remote displays/monitors over UTP Cat6/7 cable up to 394ft (120m) and send the 4K@60Hz Ultra HD HDR resolution to the receiver for stable transmission and cost saving. Allows multiple receivers to be used simultaneously in multiple configurations

Highly Scalable
Works as a scalable TX/RX matrix over the dedicated IP network and extends/splits HDMI signals to multiple displays. Allows up to 65,536 total units, limited to 1,023 transmitter units, the additional Encoder (TX)unit (CE-H27F11-S1), Decoder (RX)unit (part#- CE-H27G11-S1), and Kit (part#- CE-H28A11-S1) are sold separately

PoE Technology
Allows the power supply connected to either the TX or RX unit by Ethernet port to power both units, making it easy to construct and improve system robustness. No additional power adapter required

Long Distance
This 4K 60Hz HDMI over IP Matrix Kit is designed for reliably extend HDMI signals up to 394ft (120m) to remote HDMI displays through Gigabit Ethernet network and Gigabit Ethernet switch

4K UHD Resolution
Supports Ultra High-Definition video resolution up to 4K (4096x2160) @60Hz HDCP 2.2, 4:4:4, HDR 10, Deep Color and 3D. Image rotation supports clockwise 90°, 180°, and 270° in video wall only

IR Extension/RS-232 Control
Bi-directional IR pass back function and RS-232 control source devices from remote RX locations, allowing you to select and switch between HDMI source devices

High Performance
Offers a true 18Gbps video bandwidth and supports 7.1-ch surround sound

Extract Audio
Audio extraction via digital S/PDIF (Toslink), 3.5mm stereo audio, or HDMI output ports. Digital S/PDIF audio format: PCM 2.0, Dolby 5.1, and DTS 5.1; 3.5mm stereo audio format: PCM 2.0; HDMI audio format: PCM 2.0/5.1/7.1, Dolby 5.1/7.1, and DTS 5.1/7.1

Multiple Connectivity Ports
Comes with one HDMI video input port, one USB-B 2.0 port for Host- WebCam, one USB-B 2.0 port for Host-KM and flash drive, one Gigabit Ethernet network port, one 3.5mm IR emitter port, one 3.5mm IR receiver port, one 3.5mm microphone jack, one 3.5mm audio jack, one S/PDIF output port, one DIP switch for video channel selection, one RS-232 port for control, one DC power jack (5V/2A)

Availability: Call or email

$569.99
$569.99

Fast shipping on all in-stock products

Quick turnaround on RFQs - email us today.

Buy from a certified veteran-owned small business (VOSB)

Questions? Call customer service at 503-208-8410.

Description

Details

SIIG 4K 60Hz 18Gbps HDMI over IP Matrix - Encoder (TX) 394ft TAA Compliant - Transmits 4K@60Hz HDMI signal up to 394ft (120m) over a single Cat6/7 cable - DIP Switch - AV Over IP - PoE - One-to-One / One-to-Many / N to M Multi-casting - Up to 1023 transmitter units - 5x5 VideoWall - KVM - USB - HDCP 2.2 - HDR 10 - 3.5mm Stereo - S/PDIF - Bi-directional IR - RS-232 Control - ESD Protection - TAA Compliant - 3 years warranty - Kit (CE-H28A11-S1) - Decoder (RX) (CE-H27G11-S1) - Controller (CE-

OVERVIEW:

  • Limited Warranty : 3 Year
  • Graphics Modes : 4K
  • Connectivity Technology : Wired
  • Power over Ethernet (PoE) : Yes
  • Color Family : Black
  • Package Contents :
    • 4K 60Hz HDMI Over IP Matrix- Transmitter
    • 1x 3.5mm IR Emitter Extension Cable
    • 1x DC Power Adapter, 5V/2A
    • 1x Mounting Kit
    • 1x User Reference Guide
        • Media Type Supported : Twisted Pair
        • Network (RJ-45) : Yes
        • Supported Video Modes : 480p
        • Supported Video Modes : 480i
        • Supported Video Modes : 720p
        • Supported Video Modes : 1080i
        • Supported Video Modes : 1080p
        • Number of Input Devices Supported : 1
        • Product Color : Black
        • Application/Usage : Control Center
        • Application/Usage : Retail Store
        • Application/Usage : Airport
        • Application/Usage : Exhibition
        • Application/Usage : Lecture Hall
        • Application/Usage : Restaurant
        • Application/Usage : Digital Signage System
        • Application/Usage : Shopping Center
        • Twisted Pair Cable Standard : Category 7
        • Maximum Video Resolution : 4096 x 2160
        • Transmitter Height : 1.09"
        • Maximum Operating Distance : 393.70 ft
        • Transmitter Width : 5.19"
        • Country of Origin : Taiwan
        • HDMI In : Yes
        • Transmitter Depth : 6.81"
        • TAA Compliant : Yes
        • Environmentally Friendly : Yes
        • Form Factor : Wall Mountable
        • Transmitter Weight (Approximate) : 1.41 lb
        • USB : Yes
        • Environmental Compliance : Restriction of Hazardous Substances (RoHS) 2
        • Environmental Compliance : Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
        • Number of Network (RJ-45) Ports : 1
        • Number of USB Ports : 2
        • Number of HDMI Inputs : 1
        • Additional Info

          Additional Info

          SKU 03127CEH27F11S1-BF
          Weight 1.0000
          Is Featured N/A
          Manufacturer SIIG, Inc
          Manufacturer Part Number CE-H27F11-S1
          Width 1
          Length 1
          Height 1
          Product ID 03127CEH27F11S1
          UNSPSC N/A
          Other Part Number N/A
          Special Price N/A
