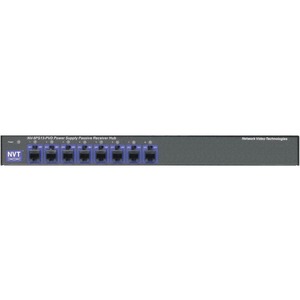

NVT Phybridge Power Supply Passive Video Receiver Hub - 750 ft Range - 10 x Network (RJ-45) - Twisted Pair - Category 5e - Rack-mountable, Wall Mountable, Desktop

Features:

  • Provides Class 2 SELV camera power while receiving video transmission and delivering P/T/Z telemetry all over a single 4-pair Cat5e cable
  • Standard telecom/datacom structured cabling pinouts per EIA/TIA 568B
  • Independently selectable 24VAC-OFF-28VAC with 1 Amp per channel
  • Automatic-reset fault protection; transient protection
  • Individually floating outputs ensure total ground-loop immunity
  • Frequency response DC to 10MHz
  • Diagnostic LEDs show load/no load, miswires, and overload conditions
  • Use with the NV-216A-PV, NV-218A-PVD, or NV-226J-PV transceiver at the camera
  • Power cameras via UTP over significant distances (see Power Distance Chart)
  • 1U high; 8" deep; wall, desk, or rack-mountable, 2ft (60cm) BNC Cables included
  • Limited lifetime warranty
The 8-channel NV-8PS13-PVD is a key hybrid component that consolidates all CCTV system cabling using standard EIA/TIA 568B structured building wiring. Designed for installation in the IDF/Telecom Closet or MDF/Equipment Room, the Power Supply Passive Video Receiver Hub has independently selectable 24VAC-OFF-28VAC outputs that can support at-distance camera loads up to 1 Amp per channel. Use with NVT's PVDTM transceivers for cable runs under 750ft (225m). A built-in passive receiver hub allows connection to DVR or an encoder for IP transmission. Per-channel diagnostic LEDs display load /no-load, miswires, or fault conditions at a glance. Automatic-reset fault protection, transient protection, and ground loop free individually floating outputs.

Availability: Call or email

$1,031.73
$1,031.73

Fast shipping on all in-stock products

Quick turnaround on RFQs - email us today.

Buy from a certified veteran-owned small business (VOSB)

Questions? Call customer service at 503-208-8410.

Description

Details

NVT Phybridge Power Supply Passive Video Receiver Hub - 750 ft Range - 10 x Network (RJ-45) - Twisted Pair - Category 5e - Rack-mountable, Wall Mountable, Desktop

OVERVIEW:

  • Limited Warranty : Lifetime
  • Connectivity Technology : Wired
  • Package Contents :
    • Power Supply Passive Video Receiver Hub
    • Rack Mount "L" Brackets
    • Rubber Feet
    • 8 x 2ft (60cm) Coax Jumpers
    • Molded IEC power inlet cord 7ft (200cm)
  • Media Type Supported : Twisted Pair
  • Network (RJ-45) : Yes
  • Twisted Pair Cable Standard : Category 5e
  • Maximum Operating Distance : 750 ft
  • Receiver Height : 1.73"
  • Receiver Width : 19"
  • Environmentally Friendly : Yes
  • Receiver Depth : 12"
  • Form Factor : Desktop
  • Form Factor : Wall Mountable
  • Form Factor : Rack-mountable
  • Receiver Weight (Approximate) : 14 lb
  • Environmental Compliance : Restriction of Hazardous Substances (RoHS)
  • Environmental Compliance : Waste Electrical and Electronic Equipment Directive (WEEE)
  • Number of Network (RJ-45) Ports : 10
  • Additional Info

    Additional Info

    SKU 05791NV8PS13PVD-BF
    Weight 1.0000
    Is Featured N/A
    Manufacturer Phybridge, Inc
    Manufacturer Part Number NV-8PS13-PVD
    Width 1
    Length 1
    Height 1
    Product ID 05791NV8PS13PVD
    UNSPSC N/A
    Other Part Number N/A
    Special Price N/A
