NVT Phybridge 8-Channel Video Transceiver Hub - 3280.84 ft Range - 2 x Network (RJ-45) - Twisted Pair - Category 5 - Rack-mountable, Wall Mountable

Features:

  • Compact rack mountable 19" 1U high enclosure features 8 channels and only 1.54" (40mm) deep
  • Use with any NVT passive transceiver or hub for full motion CCTV at distances up to 750ft (225m)
  • Use with any NVT DigitalEQTM Hub or active receiver as a rack-mountable passive transmitter for distances up to 3,000ft (1km)
  • Use with any NVT StubEQTM for distances up to 1,500ft (460m)
  • RJ45 video connectivity with optional NV-RJ45A RJ45-to-screw terminal adaptors included
  • No power required
  • Exceptional interference rejection
  • Built-in transient protection
  • Supports "up-the coax" type control signal up to 750ft (225m)
  • Compatible with qualified UTP cameras
  • Limited lifetime warranty

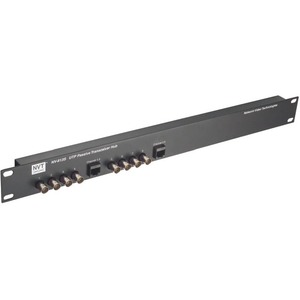

The NVT Model NV-813S is a compact 8-channel passive transceiver hub that allows transmission of real-time monochrome or color video over Unshielded Twisted-Pair (UTP) telephone wire. Baseband (composite) signals of any type are supported.

"Up-the-coax" type signal may be sent over the same wire pair at distances up to 750ft (225m).
The unparalleled interference rejection ability of the Model NV-813S Hub allows video signals to co-exist in the same wire bundle as telephone, datacom, or low-voltage power circuits. Perfect for larger CCTV installations where port density and camera number growth are prevalent. With built-in transient protection, damaging voltage spike problems are eliminated.

Availability: Call or email

$405.26
$405.26

Fast shipping on all in-stock products

Quick turnaround on RFQs - email us today.

Buy from a certified veteran-owned small business (VOSB)

Questions? Call customer service at 503-208-8410.

Description

Details

NVT Phybridge 8-Channel Video Transceiver Hub - 3280.84 ft Range - 2 x Network (RJ-45) - Twisted Pair - Category 5 - Rack-mountable, Wall Mountable

OVERVIEW:

  • Limited Warranty : Lifetime
  • Connectivity Technology : Wired
  • Package Contents :
    • 8-Channel Video Transceiver Hub
    • 8 x NV-RJ45A RJ45 to Screw Terminal Adapters
    • Rack Mounting Screws and Screw Driver
  • Media Type Supported : Twisted Pair
  • Network (RJ-45) : Yes
  • Twisted Pair Cable Standard : Category 5
  • Maximum Operating Distance : 3280.84 ft
  • Form Factor : Wall Mountable
  • Form Factor : Rack-mountable
  • Number of Network (RJ-45) Ports : 2
  • Additional Info

    Additional Info

    SKU 05791NV813S-BF
    Weight 1.0000
    Is Featured N/A
    Manufacturer Phybridge, Inc
    Manufacturer Part Number NV-813S
    Width 1
    Length 1
    Height 1
    Product ID 05791NV813S
    UNSPSC N/A
    Other Part Number N/A
    Special Price N/A
