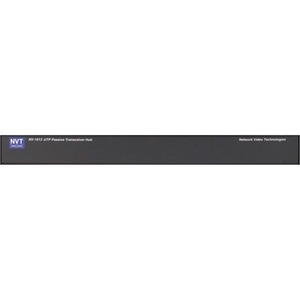

NVT Phybridge 16-Channel Video Transceiver Hub - 3280.84 ft Range - 4 x Network (RJ-45) - Twisted Pair - Category 5 - Rack-mountable, Wall Mountable, Desktop

Features:

  • High-Density 19" 1U high enclosure features 16 ports
  • Use with any NVT passive transceiver or hub as a rack-mountable passive transceiver for full motion CCTV at distances up to 750ft (225m)
  • Use with any NVT DigitalEQTM Hub or active receiver as a rack-mountable passive transmitter for distances up to 3,000ft (1km)
  • Use with any NVT StubEQTM for distances up to 1,500ft (460m)
  • RJ45 video connectivity with optional NV-RJ45A RJ45 to screw terminal adaptors included
  • No power required
  • Exceptional interference rejection
  • Built-in transient protection
  • Supports "up-the coax" type control signal up to 750ft (225m)
  • Compatible with qualified UTP cameras
  • Includes sixteen 2ft (60cm) coax jumper cables and rackmount hardware
  • Limited lifetime warranty
The NVT Model NV-1613 is a 16 port passive transceiver hub that allows transmission of real-time monochrome or color video over Unshielded Twisted-Pair (UTP) telephone wire. Baseband (composite) signals of any type are supported.

"Up-the-coax" type signal may be sent over the same wire pair at distances up to 750ft (225m).

The unparalleled interference rejection ability of the Model NV-1613 Hub allows video signals to co-exist in the same wire bundle as telephone, datacom, or low-voltage power circuits. Perfect for larger CCTV installations where port density and camera number growth are prevalent. With built-in transient protection, damaging voltage spike problems are eliminated.

Availability: Call or email

$1,160.69
$1,160.69

Fast shipping on all in-stock products

Quick turnaround on RFQs - email us today.

Buy from a certified veteran-owned small business (VOSB)

Questions? Call customer service at 503-208-8410.

Description

Details

NVT Phybridge 16-Channel Video Transceiver Hub - 3280.84 ft Range - 4 x Network (RJ-45) - Twisted Pair - Category 5 - Rack-mountable, Wall Mountable, Desktop

OVERVIEW:

  • Limited Warranty : Lifetime
  • Connectivity Technology : Wired
  • Package Contents :
    • 16-Channel Video Transceiver Hub
    • Rack Mount "L" Brackets
    • Rubber Feet
    • 16 x 2ft (60cm) Coax Jumpers and one 7ft (200cm)
    • 4 x NV-RJ45A RJ45 to Screw-Terminal Adapters
        • Media Type Supported : Twisted Pair
        • Network (RJ-45) : Yes
        • Twisted Pair Cable Standard : Category 5
        • Maximum Operating Distance : 3280.84 ft
        • Form Factor : Desktop
        • Form Factor : Wall Mountable
        • Form Factor : Rack-mountable
        • Number of Network (RJ-45) Ports : 4
        • Additional Info

          Additional Info

          SKU 05791NV1613-BF
          Weight 1.0000
          Is Featured N/A
          Manufacturer Phybridge, Inc
          Manufacturer Part Number NV-1613
          Width 1
          Length 1
          Height 1
          Product ID 05791NV1613
          UNSPSC N/A
          Other Part Number N/A
          Special Price N/A
