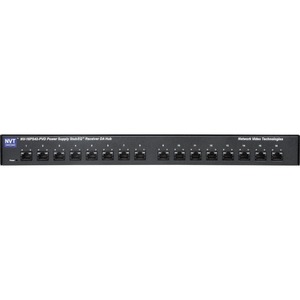

NVT Phybridge 16-Channel Power Supply StubEQ Active Receiver Hub - 1500 ft Range - 4 x Network (RJ-45) - Twisted Pair - Category 5 - Rack-mountable, Wall Mountable, Desktop

Features:

  • Provides Class 2 SELV 28 VAC with up to 1 Amp/channel while receiving video transmission and delivering P/T/Z telemetry, all over a single 4-pair Cat5 cable for each camera
  • Built-in distribution amplifier with 2 video outputs per channel
  • Full motion CCTV video at distances up to 1,500ft (460m) when used with any passive NVT transceiver
  • Adaptive StubEQTM fully automatic 2-band equalization provides adjustment free equalization every time, no manual adjustments required
  • Automatic-reset fault protection; transient protection
  • Individually floating power outputs and differential video inputs ensure total ground-loop immunity
  • Diagnostic LEDs show load/no load, miswires, overload conditions, and video status
  • Limited lifetime warranty
The 16-channel NV-16PS42-PVD is a key hybrid component that consolidates all CCTV system cabling using standard EIA/TIA 568B structured building wiring. Designed for installation in the IDF/Telecom Closet or MDF/Equipment Room, Power Supply StubEQTM Active Receiver Hubs have individual floating 28VAC outputs that support at-distance camera loads up to 1 Amp per channel for cable runs up to 1,500ft (460m). A built-in StubEQTM video receiver hub ensures a zero loss video signal for connection into a DVR or IP encoder. Standard features include: automatic-reset fault protection, transient protection, ground loop free individually floating outputs and power and video diagnostics. All NVT products are UL and cUL listed, are compliant with CE, RoHS, WEEE, and come with NVT's lifetime warranty.

Availability: Call or email

$2,689.04
$2,689.04

Fast shipping on all in-stock products

Quick turnaround on RFQs - email us today.

Buy from a certified veteran-owned small business (VOSB)

Questions? Call customer service at 503-208-8410.

Description

Details

NVT Phybridge 16-Channel Power Supply StubEQ Active Receiver Hub - 1500 ft Range - 4 x Network (RJ-45) - Twisted Pair - Category 5 - Rack-mountable, Wall Mountable, Desktop

OVERVIEW:

  • Limited Warranty : Lifetime
  • Connectivity Technology : Wired
  • Package Contents :
    • 16-Channel Power Supply StubEQ Active Receiver Hub
    • Rack Mount "L" Brackets
    • Rubber Feet
    • 16 x 2ft (60cm) Coax Jumpers
    • Molded IEC power inlet cord 7ft (200cm)
  • Media Type Supported : Twisted Pair
  • Network (RJ-45) : Yes
  • Twisted Pair Cable Standard : Category 5
  • Maximum Operating Distance : 1500 ft
  • Receiver Height : 1.73"
  • Receiver Width : 19"
  • Environmentally Friendly : Yes
  • Receiver Depth : 12"
  • Form Factor : Desktop
  • Form Factor : Wall Mountable
  • Form Factor : Rack-mountable
  • Receiver Weight (Approximate) : 23.50 lb
  • Environmental Compliance : Restriction of Hazardous Substances (RoHS)
  • Environmental Compliance : Waste Electrical and Electronic Equipment Directive (WEEE)
  • Number of Network (RJ-45) Ports : 4
