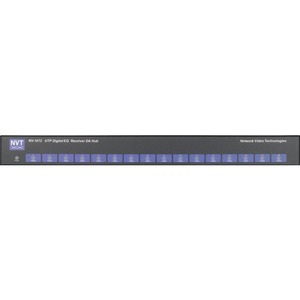

NVT Phybridge 16-Channel DigitalEQ Active Receiver Distribution Amplifier Hub - 3280.84 ft Range - 4 x Network (RJ-45) - Twisted Pair - Category 5 - Rack-mountable, Wall Mountable, Desktop

Features:

  • Adaptive DigitalEQTM fully automatic 4-band equalization provides adjustment-free equalization every time
  • Compact rack-mountable 19" 1U high enclosure features 16 channels with 2 outputs per channel
  • Full motion CCTV video at distances up to 3,000ft (1km) when used with any passive NVT transceiver or hub; 1 mile (1,6km) when used with the NV-653T active transmitter; 1,000ft (300m) with shielded twisted-pair when used with any passive NVT transceiver or hub
  • RJ45 connectivity with optional NV-RJ45A RJ45-to-screw-terminal adaptors (included)
  • Exceptional interference rejection
  • Built-in transient protection and ground-lifting
  • Automatic compensation for reverse-polarity wiring
  • At-a-glance per-channel diagnostics
  • Compatible with qualified UTP cameras
  • Includes sixteen 2ft (60cm) coax jumper cables, rack mount hardware and four NV-RJ45A adaptors
  • Limited lifetime warranty
Employing NVT's latest generation DigitalEQTM technology, the NV-1672 is an 16-channel active (amplified) hub that allows the transmission of full-motion monochrome or color video for distances up to 1 mile (1,6km) using Category 2 or better unshielded twisted-pair (UTP) wire. The receiver hub continuously and automatically conditions the video signal, compensating for cable attenuation, wiring polarity, ground loops, and voltage transients, independent of video signal content.

The unparalleled interference rejection and low emissions allow long run video to co-exist in the same wire bundle as telephone, datacom, or low-voltage power circuits. this allows the use of shared or existing cable plant. Ground-lifting ensures no annoying "hum-bars" when ground-potential differences exist. With built-in transient protection, damaging voltage spikes are eliminated.

Availability: Call or email

$3,000.43
$3,000.43

Fast shipping on all in-stock products

Quick turnaround on RFQs - email us today.

Buy from a certified veteran-owned small business (VOSB)

Questions? Call customer service at 503-208-8410.

Description

Details

NVT Phybridge 16-Channel DigitalEQ Active Receiver Distribution Amplifier Hub - 3280.84 ft Range - 4 x Network (RJ-45) - Twisted Pair - Category 5 - Rack-mountable, Wall Mountable, Desktop

OVERVIEW:

  • Limited Warranty : Lifetime
  • Connectivity Technology : Wired
  • Package Contents :
    • 16-Channel DigitalEQ Active Receiver Distribution Amplifier Hub
    • Rack Mount "L" Brackets
    • Rubber Feet
    • 16 x 2ft (60cm) Coax Jumpers
    • Molded IEC power inlet cord 7ft (200cm)
    • 4 x NV-RJ45A RJ45 to-Screw-Terminal
  • Media Type Supported : Twisted Pair
  • Network (RJ-45) : Yes
  • Twisted Pair Cable Standard : Category 5
  • Maximum Operating Distance : 3280.84 ft
  • Receiver Height : 1.70"
  • Receiver Width : 17"
  • Receiver Depth : 8.13"
  • Form Factor : Desktop
  • Form Factor : Wall Mountable
  • Form Factor : Rack-mountable
  • Number of Network (RJ-45) Ports : 4
  • Additional Info

    Additional Info

    SKU 05791NV1672-BF
    Weight 1.0000
    Is Featured N/A
    Manufacturer Phybridge, Inc
    Manufacturer Part Number NV-1672
    Width 1
    Length 1
    Height 1
    Product ID 05791NV1672
    UNSPSC N/A
    Other Part Number N/A
    Special Price N/A
